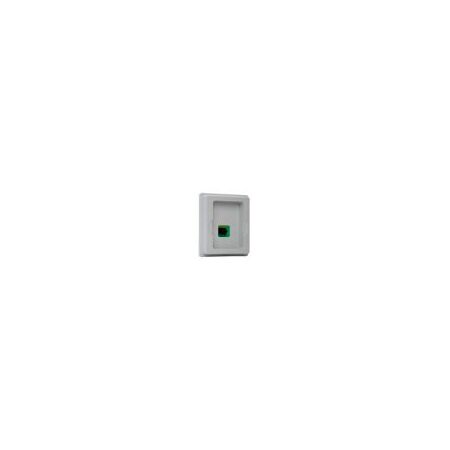

Variable Frequency Drive Mounting Kit | 3m Connection Cable | Corrosion Resistant & Thermal Stability | Eaton
The Variable Frequency Drive Mounting Kit includes a 3-meter plug-in connection cable and is designed specifically for DG1 DM1 control units—ideal for industrial and commercial electrical control panels. Built for efficient installation, it meets high standards for corrosion resistance and thermal stability.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Variable Frequency Drive Mounting Kit | 3m Connection Cable | Corrosion Resistant & Thermal Stability | Eaton
Brand: Eaton
SKU: Y7-730-32033-00P
Alternatively Known As: Eaton DG1 Mounting Bracket, DG1 VFD Mounting Frame, Eaton Variable Frequency Drive Mounting Kit
Technical Specifications
- Product Length/Depth: 55 mm
- Product Height: 165 mm
- Product Width: 135 mm
- Product Weight: 0.265 kg
- Ambient Operating Temperature Range: -10 °C to 50 °C
- Fitted with plug-in connection cable (~3 m) and keypad
- Meets product standard requirements for corrosion resistance, thermal stability, resistance to UV radiation, and mechanical function
- Panel builder responsible for temperature rise calculation, short-circuit rating, electromagnetic compatibility, and electrical connections
- Dimensions (H x L x W): 165mm x 55mm x 135mm
- Weight: 0.265 kg
Key Features
- Includes plug-in connection cable approximately 3 meters in length
- Designed specifically for DG1 DM1 control units
- Meets product standard requirements for corrosion resistance, thermal stability, UV resistance, and inscriptions
- Mechanical function compliant when instruction leaflet is followed
Professional Installation Requirements
- Installation should be performed by a qualified electrician or panel builder to ensure compliance with electrical standards and proper integration with DG1 variable frequency drives.
Applications
- Mounting and installation accessory for DG1 DM1 variable frequency drive control units
- Industrial and commercial electrical control panels
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Supports efficient installation of variable frequency drives which can improve energy efficiency in motor control applications
Warranty Information
Warranty details available upon request from Eaton; standard manufacturer warranty applies.
Available Now
The Eaton DXG Mounting Frame is available for immediate purchase, ideal for industrial and commercial electrical control panel installations.
