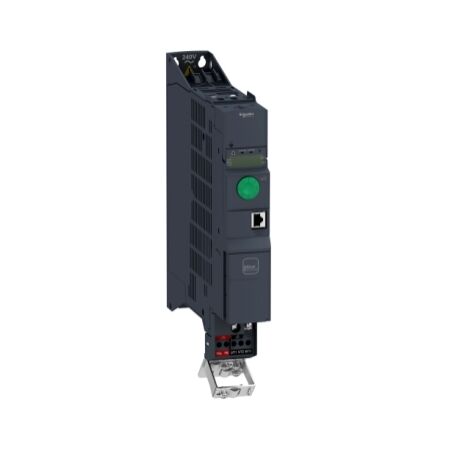

Variable Speed Drive 1.5kW 400V 3PH | Compact Design | Integrated EMC Filter | by Clipsal
The Variable Speed Drive 1.5kW 400V 3PH is engineered for optimal motor control in industrial automation, featuring a compact book-style design and integrated EMC filter. With a wide input voltage range of 380–500V AC and advanced safety features, it's perfect for pumps, fans, and conveyors, ensuring energy efficiency and reduced mechanical wear.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Variable Speed Drive 1.5kW 400V 3PH | Compact Design | Integrated EMC Filter | by Clipsal
Brand: Clipsal
SKU: SCHATV320U15N4B
Alternatively Known As: ATV320 VSD, Schneider ATV320U15N4B, Variable Speed Drive 1.5kW 3PH, ATV320 1.5kW Inverter, Clipsal VSD 1.5kW, Schneider Electric ATV320
Technical Specifications
- Power rating: 1.5kW (2HP)
- Input voltage: 380–500V AC, 3-phase
- Output voltage: 0–Uin, 3-phase
- Output frequency: 0.1–599Hz
- Integrated EMC filter
- Control type: V/F, sensorless vector, and synchronous motor control
- Integrated braking transistor
- Communication: Modbus, CANopen (optional: Ethernet/IP, Profibus, etc.)
- Operating temperature: -10°C to +50°C (without derating)
- Degree of protection: IP20
- Conformal coated PCBs
- Dimensions (H x L x W): 143mm x 172mm x 72mm
- Weight: 2.2 kg
Key Features
- Variable speed drive for 3-phase asynchronous and synchronous motors
- Power rating: 1.5kW (2HP)
- Input voltage: 380–500V AC, 3-phase
- Compact book-style design for easy panel integration
- Integrated EMC filter
- Robust motor control with advanced safety features
- Multiple communication options (Modbus, CANopen)
- Integrated braking transistor
- Wide operating temperature range (-10°C to +50°C without derating)
- Conformal coated boards for harsh environments
Professional Installation Requirements
- Installation must be performed by a licensed electrician or qualified technician in accordance with local electrical regulations and manufacturer guidelines.
Applications
- Industrial automation
- Pumps and fans
- Conveyors
- Material handling
- HVAC systems
- General machinery requiring variable speed control
Standards & Compliance
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Improves energy efficiency by optimizing motor speed
- Reduces mechanical wear and maintenance
- Supports energy-saving applications in industrial environments
Warranty Information
Standard 2-year manufacturer warranty.
Available Now
The Clipsal ATV320 1.5kW 400V 3PH Book Control VSD (SCHATV320U15N4B) is available for immediate purchase. Ideal for industrial automation, pumps, fans, and general machinery applications.
