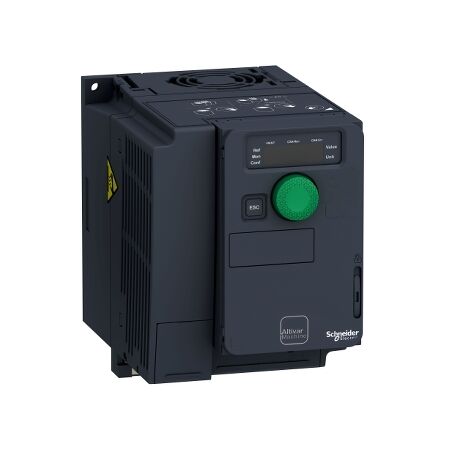

Variable Speed Drive 2.2kW | 200V Single Phase | Compact Design | Integrated EMC Filter | @Each | by Clipsal
The Variable Speed Drive 2.2kW is designed for efficient motor control in industrial automation, featuring a 200V single-phase input and compact design for easy integration. With an integrated EMC filter and robust overload capacity, it's perfect for applications like pumps, fans, and conveyors, ensuring optimal performance and energy efficiency.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Variable Speed Drive 2.2kW | 200V Single Phase | Compact Design | Integrated EMC Filter | @Each | by Clipsal
Brand: Clipsal
SKU: SCHATV320U22M2C
Alternatively Known As: ATV320U22M2C, Schneider ATV320, Variable Speed Drive 2.2kW, Compact VSD 200V, Clipsal VSD, ATV320 2.2kW Single Phase
Technical Specifications
- Power rating: 2.2 kW (3 HP)
- Input voltage: 200–240 V, single-phase
- Output voltage: 3-phase, 200–240 V
- Output frequency: 0.1–599 Hz
- Integrated EMC filter
- Control type: Sensorless vector control, V/F control
- Overload capacity: 150% for 60 seconds
- Protection: IP20
- Operating temperature: -10°C to +50°C
- Communication: Modbus, CANopen (integrated)
- Dimensions (H x L x W): 143mm x 153mm x 72mm
- Weight: 2.2 kg
Key Features
- Variable speed drive for asynchronous and synchronous motors
- 2.2 kW power rating
- 200–240 V single-phase input
- Compact design for easy integration
- Integrated EMC filter
- Robust motor control with advanced safety features
- Flexible connectivity for control systems
Professional Installation Requirements
- Installation must be performed by a licensed electrician or qualified technician in accordance with local electrical regulations and manufacturer guidelines.
Applications
- Industrial automation
- Pumps and fans
- Conveyors
- Material handling
- HVAC systems
- Packaging machinery
Standards & Compliance
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Improves energy efficiency by optimizing motor speed
- Reduces energy consumption and operational costs
- Minimizes mechanical wear, extending equipment lifespan
Warranty Information
12 months manufacturer's warranty from date of purchase.
Available Now
The Clipsal ATV320 2.2kW 200V 1PH Compact Control VSD (SCHATV320U22M2C) is available for immediate purchase. Ideal for industrial automation, pumps, fans, and material handling applications.
