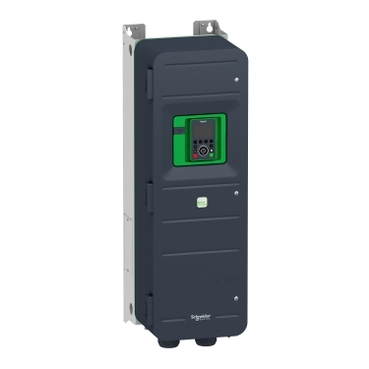

Variable Speed Drive 37kW IP55 | 400V/480V | Integrated EMC Filter | Vector Control | @Pack of 1 | by Clipsal
The Variable Speed Drive 37kW IP55 is designed for efficient motor management in industrial automation. With a robust IP55 enclosure for dust and water protection, it operates at 400V to 480V AC and features advanced vector control for optimal performance. Ideal for applications like HVAC systems and material handling, this drive enhances energy efficiency while minimizing mechanical wear.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Variable Speed Drive 37kW IP55 | 400V/480V | Integrated EMC Filter | Vector Control | @Each of 1 | by Clipsal
Brand: Clipsal
SKU: SCHATV650D37N4
Alternatively Known As: Variable Speed Drive 37kW, ATV650 37kW VSD, Schneider Electric Altivar Process 37kW, 37kW IP55 VSD, SCHATV650D37N4, 37kW Frequency Inverter
Technical Specifications
- Power rating: 37kW (50HP)
- Input voltage: 400-480V AC, 3-phase
- Output voltage: 0-480V AC, 3-phase
- Frequency range: 0.1 to 500 Hz
- IP55 enclosure for dust and water protection
- Integrated EMC filter
- Control type: Vector control with or without sensor, V/F control
- Communication: Modbus, Ethernet, CANopen, Profibus (optional)
- Operating temperature: -15°C to +50°C (derating above 40°C)
- Display: Integrated LCD keypad
- Conformity: CE, UL, cUL, EAC, RCM
- Dimensions (H x L x W): 700mm x 300mm x 310mm
- Weight: 65 kg
Key Features
- Variable speed drive for 3-phase asynchronous and synchronous motors
- Power rating: 37kW (50HP)
- Input voltage: 400V to 480V AC, 3-phase
- IP55 protection for dust and water resistance
- Altivar Process ATV650 series for high performance and energy efficiency
- Integrated EMC filter
- Advanced motor control and process optimization
- Built-in display and keypad for easy configuration
- Multiple communication options (Ethernet, Modbus, CANopen, etc.)
Professional Installation Requirements
- Installation must be performed by a licensed electrician experienced with variable speed drives and industrial motor control systems. Ensure compliance with local wiring rules and safety standards.
Applications
- Industrial automation and process control
- Pumps and fans in water and wastewater treatment
- HVAC systems
- Material handling and conveyor systems
- Manufacturing plants
Standards & Compliance
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Reduces energy consumption by optimizing motor speed
- Minimizes mechanical wear and tear, extending equipment life
- Supports efficient process control, reducing waste and emissions
Warranty Information
Standard 18 months warranty from date of invoice or 24 months from date of manufacture, whichever occurs first.
Available Now

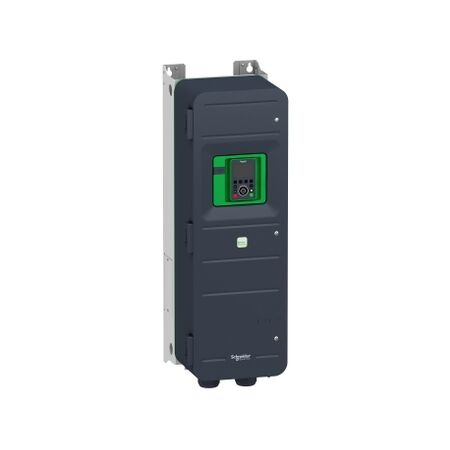

The Clipsal VSD IP55 37KW 400V/480V (SCHATV650D37N4) is available for immediate purchase. Ideal for industrial automation, process control, and energy-efficient motor management.
