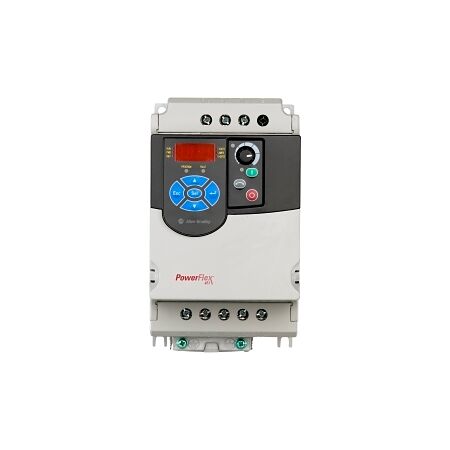

Variable Speed Drive 400V | 8.7A 3.7kW | IP20 Rated by NHP
Variable speed drive with 400V input and 8.7A output—ideal for industrial motor control. Built for energy efficiency, with IP20 protection and compact design for easy installation.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Allen-Bradley PowerFlex 4M VSD 400V IP20 8.7A 4kW ND/HD
Brand: NHP
SKU: 22FD8P7N113
Alternatively Known As: PowerFlex 4M VSD, Variable Speed Drive, Frequency Converter
Technical Specifications
- Number of phases input: 3
- Nominal input voltage: 415 V
- Nominal output power AC: 3.7 kW
- Nominal output current: 8.7 A
- KW rating normal duty: 3.7 kW
- KW rating heavy duty: 3.7 kW
- Dynamic braking transistor: No
- EMC version: Yes
- Suitable for safety functions: No
- Contains keypad: Yes
- Frame size: B
- Degree of protection: IP20
- Operating temperature: -10-50 °C
- Dimensions (H x L x W): 200mm x 150mm x 150mm
- Weight: 5 kg
Key Features
- 3-phase input with a nominal voltage of 415V.
- Nominal output power of 3.7 kW and output current of 8.7 A.
- IP20 rated for protection against solid objects larger than 12mm.
Professional Installation Requirements
- Professional installation by a qualified technician is recommended for optimal performance.
Applications
- Industrial: Motor control in manufacturing and processing plants
- Commercial: HVAC systems, pumps, and fans
Standards & Compliance
- Complies with AS/NZS 61000 for electromagnetic compatibility.
Environmental Benefits
- Energy-efficient operation reduces overall power consumption.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Allen-Bradley PowerFlex 4M Variable Speed Drive is available now for immediate purchase. Ideal for industrial and commercial motor control applications.
