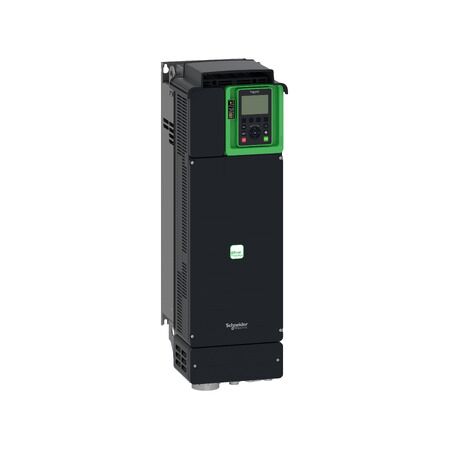

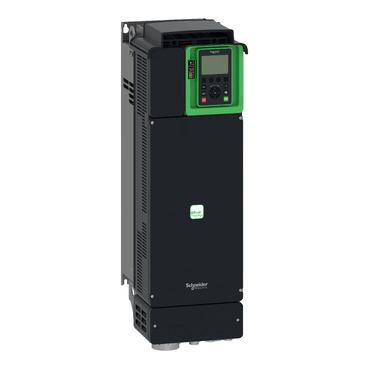

Variable Speed Drive 45kW | IP21 Enclosure | Integrated EMC Filter | LCD Keypad | @Pack of 1 | by Clipsal
The Variable Speed Drive 45kW is designed for efficient motor control in industrial applications. With an IP21 enclosure and integrated EMC filter, it supports 380-480V three-phase input, making it ideal for HVAC systems, pumps, and conveyors. The user-friendly LCD keypad and advanced motor control features ensure optimal performance and energy efficiency, perfect for licensed electricians and industrial automation.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Variable Speed Drive 45kW | IP21 Enclosure | Integrated EMC Filter | LCD Keypad | @Each of 1 | by Clipsal
Brand: Clipsal
SKU: SCHATV630D45N4
Alternatively Known As: Variable Speed Drive 45kW, ATV630D45N4, Schneider Electric VSD 45kW, 45kW VFD, 45kW Frequency Inverter, 45kW Motor Drive
Technical Specifications
- Power Rating: 45kW (60HP)
- Input Voltage: 380-480V AC, 3-phase
- Output Voltage: 0-480V AC, 3-phase
- Input Frequency: 50/60Hz
- Enclosure: IP21/UL Type 1
- Integrated EMC filter
- Control Method: Sensorless vector control, V/F control
- Display: LCD keypad
- Communication: Modbus, Ethernet, CANopen
- Operating Temperature: -15°C to +50°C (derating above 40°C)
- Overload Capacity: 150% for 60 seconds
- Dimensions (H x L x W): 715mm x 310mm x 260mm
- Weight: 38 kg
Key Features
- Variable speed drive for 45kW/60HP motors
- Supports 380-480V three-phase input
- IP21/UL Type 1 enclosure for indoor use
- Advanced motor control and energy efficiency
- Integrated EMC filter
- User-friendly interface with LCD display
- Multiple communication options (Modbus, Ethernet, CANopen)
- Comprehensive protection features (overload, short circuit, overvoltage, undervoltage)
Professional Installation Requirements
- Installation must be performed by a licensed electrician experienced with variable speed drives and in accordance with local electrical regulations.
Applications
- Industrial automation
- Pumps and fans
- HVAC systems
- Conveyors
- Material handling
- Water and wastewater treatment plants
Standards & Compliance
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Improves energy efficiency by optimizing motor speed
- Reduces greenhouse gas emissions through lower energy consumption
- Minimizes mechanical wear, extending equipment lifespan
Warranty Information
Standard 18 months warranty from date of invoice or 12 months from commissioning, whichever comes first.
Available Now
The Clipsal VSD IP21 45KW 400V/480V (SCHATV630D45N4) is available for immediate purchase. Ideal for industrial motor control applications requiring reliable and efficient variable speed operation.
