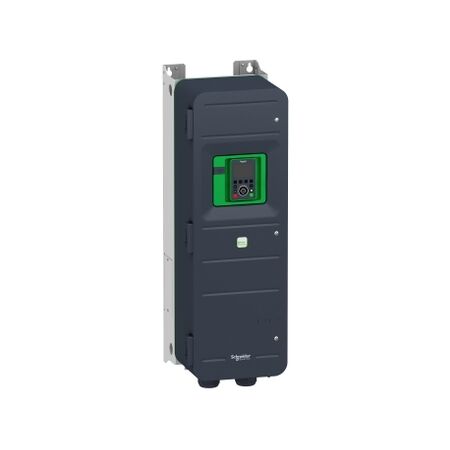

Variable Speed Drive 45kW | IP55 Rated | 400V to 480V Input | Advanced Motor Control | @Pack of 1 | by Clipsal
The Variable Speed Drive 45kW is designed for industrial automation, offering IP55 protection against dust and water. With a three-phase input range of 400V to 480V and advanced motor control features, it optimizes energy consumption and enhances equipment lifespan. Ideal for applications like HVAC systems and material handling, this drive ensures reliable performance in harsh environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Variable Speed Drive 45kW | IP55 Rated | 400V to 480V Input | Advanced Motor Control | @Each of 1 | by Clipsal
Brand: Clipsal
SKU: SCHATV650D45N4
Alternatively Known As: Variable Speed Drive 45kW, ATV650 45kW VSD, Altivar Process 45kW Drive, Schneider ATV650D45N4, Industrial VSD 45kW
Technical Specifications
- Power Rating: 45kW (60HP)
- Input Voltage: 3-phase 380-480V ±10%
- Input Frequency: 50/60Hz ±5%
- Output Voltage: 3-phase 0-480V
- Output Frequency: 0.1-500Hz
- Enclosure: IP55 (dust and water jet protected)
- Integrated EMC filter
- Control: Sensorless vector control, V/F control
- Communication: Modbus, Ethernet, CANopen (expandable)
- Operating Temperature: -15°C to +50°C (derating above 40°C)
- Cooling: Forced air
- Dimensions (H x L x W): 850mm x 350mm x 320mm
- Weight: 65 kg
Key Features
- Variable speed drive for 45kW motors
- Supports 400V to 480V three-phase input
- IP55 rated for dust and water protection
- Altivar Process ATV650 series for high performance and reliability
- Integrated EMC filter
- Advanced motor control and energy saving functions
- Robust design for harsh industrial environments
Professional Installation Requirements
- Installation must be performed by a licensed electrician experienced with variable speed drives and in accordance with AS/NZS 3000 wiring rules.
Applications
- Industrial automation and process control
- Pumps and fans in water and wastewater treatment
- HVAC systems
- Material handling and conveyor systems
- Manufacturing plants
Standards & Compliance
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Optimizes energy consumption by adjusting motor speed to demand
- Reduces CO2 emissions through efficient motor control
- Minimizes mechanical wear, extending equipment lifespan
Warranty Information
Standard 18-month warranty from date of invoice or 12 months from commissioning, whichever comes first.
Available Now
The Clipsal VSD IP55 45KW 400V/480V (SCHATV650D45N4) is available for immediate purchase. Ideal for industrial motor control applications requiring robust performance and energy efficiency.
