Variable Speed Drive 480V | 1.4A 0.4kW | IP20 Frame A by NHP

BRAND: NHP
SKU: 25BD1P4N104
$1,443.80 List price: $1,917.20
+
Variable speed drive with 480V input and 1.4A output—ideal for industrial motor control and commercial HVAC systems. Built for energy efficiency, with dynamic braking and PID control for precise speed management.

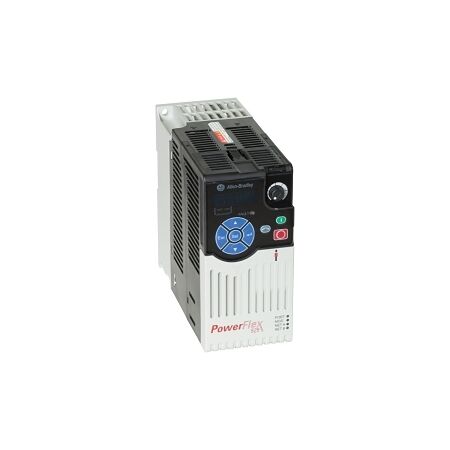

Product Name/Title: Allen-Bradley PowerFlex 525 VSD 480V IP20 1.4A 0.4kW Frame A No EMC

Brand: NHP

SKU: 25BD1P4N104

Alternatively Known As: Variable Speed Drive, VSD, Frequency Converter

Technical Specifications
  • Number of phases input: 3
  • Nominal input voltage: 415 V
  • Nominal output power AC: 0.4 kW
  • Nominal output current I2_n: 1.4 A
  • KW rating normal duty: 0.4 kW
  • KW rating heavy duty: 0.4 kW
  • Dynamic braking transistor: Yes
  • Control characteristic: PID
  • EMC version: No
  • Integrated motion function: No
  • Suitable for safety functions: Yes
  • Contains keypad: Yes
  • Frame size: A
  • Degree of protection IP: IP20
  • Operating temperature: -20-50 °C
  • Dimensions (H x L x W): 200mm x 150mm x 150mm
  • Weight: 2.5 kg
Key Features
  • 3-phase input with a nominal voltage of 415V.
  • Nominal output power of 0.4 kW and output current of 1.4 A.
  • Dynamic braking transistor included for enhanced performance.
  • PID control characteristic for precise speed control.
  • Suitable for safety functions.
Professional Installation Requirements
  • Professional installation by a qualified technician is recommended for optimal performance.
Applications
  • Industrial: Motor control in manufacturing and processing plants
  • Commercial: HVAC systems, pumps, and fans
Standards & Compliance
  • Complies with relevant Australian standards for electrical safety.
Environmental Benefits
  • Energy-efficient operation reduces overall power consumption.
Warranty Information

1 year warranty against manufacturing defects.

Available Now

The Allen-Bradley PowerFlex 525 VSD is available now for immediate purchase. Ideal for industrial and commercial applications requiring variable speed control.

25BD1P4N104-AU-PF525-Variable-Speed-Drive-Datasheet.pdf (25BD1P4N104-AU-PF525-Variable-Speed-Drive-Datasheet.pdf, 257 Kb) [Download]
