Variable Speed Drive 480V | 17A 7.5kW | IP20 Rated | Frame C by NHP
Variable speed drive with 480V input and 17A output—ideal for industrial and commercial applications. Built for energy efficiency, with PID control and IP20 protection for enhanced performance.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

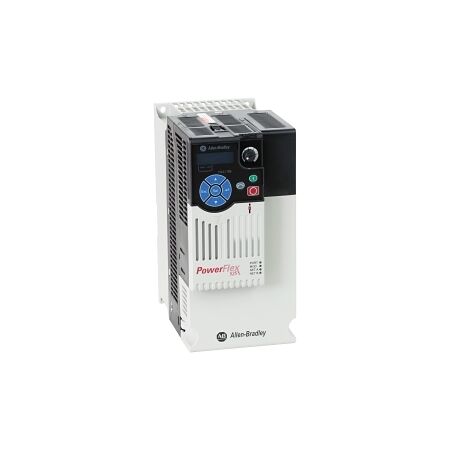

Product Name/Title: Allen-Bradley PowerFlex 523 VSD 480V IP20 17A 7.5kW ND and HD Frame C
Brand: NHP
SKU: 25AD017N114
Alternatively Known As: PowerFlex 523 VSD, Variable Speed Drive, Allen-Bradley VSD
Technical Specifications
- Number of phases input: 3
- Nominal input voltage: 415 V
- Nominal output power AC: 7.5 kW
- Nominal output current I2_n: 17 A
- KW rating normal duty: 7.5 kW
- KW rating heavy duty: 7.5 kW
- Dynamic braking transistor: Yes
- Control characteristic: PID
- EMC version: Yes
- Suitable for safety functions: No
- Contains keypad: Yes
- Frame size: C
- Degree of protection IP: IP20
- Operating temperature: -20-50 °C
- Dimensions (H x L x W): 300mm x 150mm x 200mm
- Weight: 5 kg
Key Features
- Variable speed drive with PID control characteristic.
- Dynamic braking transistor included for enhanced performance.
- IP20 rated for protection against solid objects.
Professional Installation Requirements
- Professional installation by a qualified technician is recommended for optimal performance.
Applications
- Industrial: Manufacturing, processing, and automation systems
- Commercial: HVAC systems, pumps, and fans
Standards & Compliance
- Complies with AS/NZS 60950 for safety of IT and communication equipment.
Environmental Benefits
- Energy-efficient operation reduces overall energy consumption.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Allen-Bradley PowerFlex 523 VSD is available now for immediate purchase, ideal for various industrial and commercial applications.
