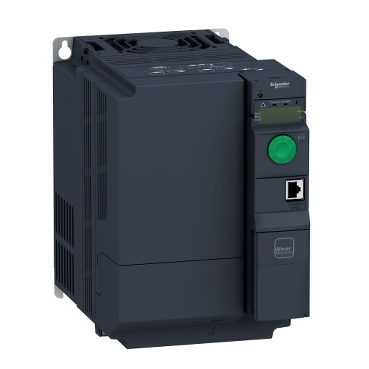

5.5kW Variable Speed Drive | 400V 3-Phase | Compact Book Design | Integrated EMC Filter | @Pack of 1 | by Clipsal
The 5.5kW Variable Speed Drive is designed for 400V three-phase motors, featuring a compact book-style design for seamless panel integration. With advanced motor control algorithms and an integrated EMC filter, it enhances energy efficiency while minimizing electrical noise. Ideal for industrial automation, HVAC systems, and material handling, this VSD ensures robust protection against overloads and short circuits.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: 5.5kW Variable Speed Drive | 400V 3-Phase | Compact Book Design | Integrated EMC Filter | @Each of 1 | by Clipsal
Brand: Clipsal
SKU: SCHATV320U55N4B
Alternatively Known As: ATV320 VSD, Schneider ATV320U55N4B, 5.5kW Variable Speed Drive, 400V 3 Phase VSD, Book Control VSD, Clipsal VSD, Schneider VSD
Technical Specifications
- Power Rating: 5.5kW (7.5HP)
- Input Voltage: 380-500V AC, 3-phase
- Output Voltage: 0-500V AC, 3-phase
- Input Frequency: 50/60Hz
- Output Frequency: 0.1-599Hz
- Integrated EMC filter (C2 category)
- Control Type: V/F, Sensorless Vector Control
- Communication: Modbus, CANopen
- Protection: Overload, short-circuit, overvoltage, undervoltage, phase loss, thermal
- Operating Temperature: -10°C to +50°C (without derating)
- Degree of Protection: IP20
- Dimensions (H x L x W): 260mm x 232mm x 72mm
- Weight: 3.5 kg
Key Features
- 5.5kW variable speed drive for three-phase 400V motors
- Compact book-style design for easy panel integration
- Integrated EMC filter for reduced electrical noise
- Advanced motor control algorithms for energy efficiency
- Robust protection features including overload, short-circuit, and thermal protection
- Flexible connectivity with Modbus and CANopen communication
- User-friendly interface with integrated display and keypad
Professional Installation Requirements
- Installation must be performed by a licensed electrician experienced with variable speed drives and industrial motor control systems.
Applications
- Industrial automation
- Pumps and fans
- Conveyors
- Material handling
- HVAC systems
- General motor control in manufacturing environments
Standards & Compliance
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Improves energy efficiency by optimizing motor speed and reducing power consumption
- Reduces mechanical wear and tear, extending equipment lifespan
- Minimizes electrical noise with integrated EMC filter
Warranty Information
12 months manufacturer's warranty from date of purchase.
Available Now
The Clipsal ATV320 5.5kW 400V 3PH Book Control VSD (SCHATV320U55N4B) is available for immediate purchase. Ideal for industrial automation, motor control, and energy-efficient applications.
