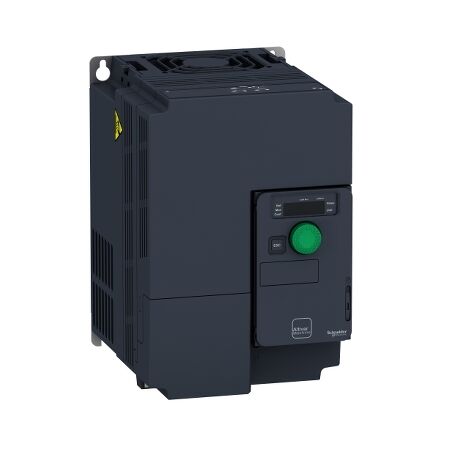

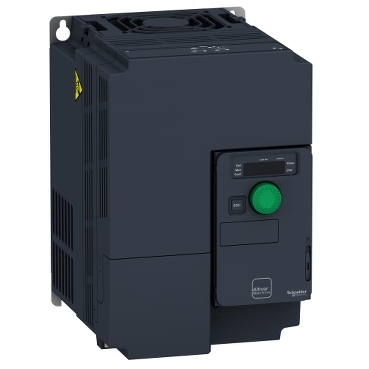

5.5kW 400V 3-Phase Compact Variable Speed Drive | Integrated EMC Filter | Safe Torque Off | by Clipsal
The 5.5kW 400V 3-phase compact variable speed drive is designed for efficient motor control in industrial automation applications. With features like an integrated EMC filter and Safe Torque Off (STO), it ensures high performance and safety. Ideal for pumps, fans, and conveyors, this drive optimizes energy efficiency while reducing mechanical wear.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: 5.5kW 400V 3-Phase Compact Variable Speed Drive | Integrated EMC Filter | Safe Torque Off | by Clipsal
Brand: Clipsal
SKU: SCHATV320U55N4C
Alternatively Known As: ATV320U55N4C, Schneider ATV320, 5.5kW VSD, 400V 3-phase drive, variable speed drive, frequency inverter, motor controller
Technical Specifications
- Power rating: 5.5kW (7.5HP)
- Input voltage: 380-500V AC, 3-phase
- Output voltage: 380-500V AC, 3-phase
- Input frequency: 50/60Hz
- Output frequency: 0.1-599Hz
- Integrated EMC filter (C2 category)
- Control type: Sensorless vector control, V/F control
- Protection: IP20 (standard), integrated Safe Torque Off (STO)
- Operating temperature: -10°C to +50°C (without derating)
- Communication: Modbus, CANopen (standard), optional Ethernet/IP, Profibus, DeviceNet, etc.
- Conformity: CE, UL, cUL, EAC, RCM
- Dimensions (H x L x W): 184mm x 232mm x 110mm
- Weight: 3.5 kg
Key Features
- Compact design for easy integration into control panels
- Supports 3-phase 400V input and output
- 5.5kW (7.5HP) motor control capability
- Integrated EMC filter for reduced electrical noise
- Advanced motor control algorithms for high performance
- Built-in safety functions including Safe Torque Off (STO)
- Flexible communication options (Modbus, CANopen, optional Ethernet/IP, Profibus, etc.)
- Robust design for harsh industrial environments
Professional Installation Requirements
- Installation must be performed by a licensed electrician or qualified technician in accordance with local electrical regulations and manufacturer guidelines.
Applications
- Industrial automation: controlling speed and torque of three-phase motors
- Pumps, fans, conveyors, and material handling systems
- HVAC systems in commercial and industrial buildings
- Machine tools and packaging equipment
Standards & Compliance
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Improves energy efficiency by optimizing motor speed and reducing power consumption
- Reduces mechanical wear and maintenance needs
- Supports integration with energy management systems
Warranty Information
Standard 2-year manufacturer warranty.
Available Now
The Clipsal ATV320 5.5kW 400V 3-phase compact variable speed drive (SCHATV320U55N4C) is available for immediate purchase. Ideal for industrial automation, motor control, and energy-efficient applications.
