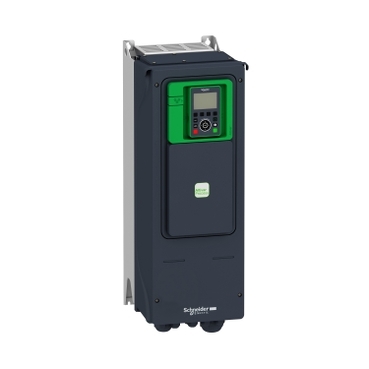

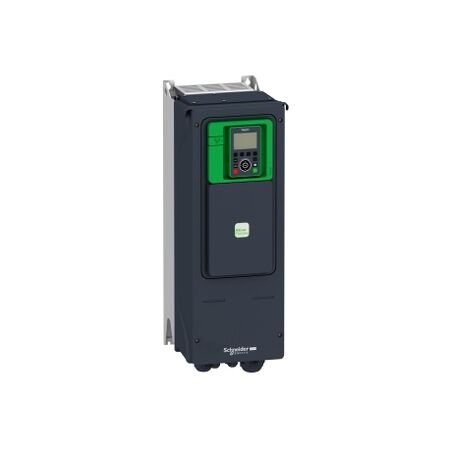

Variable Speed Drive 5.5kW IP55 | 3-Phase 400V/480V | Integrated EMC Filter | LCD Display | @Pack of 1 | by Clipsal
The Variable Speed Drive 5.5kW IP55 is designed for efficient industrial motor control, supporting 3-phase 400V/480V input. With an IP55 enclosure for dust and water protection, it features an integrated EMC filter and a user-friendly LCD display for easy configuration. Ideal for applications like pumps, fans, and HVAC systems, this drive optimizes energy efficiency and reduces operational costs.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Variable Speed Drive 5.5kW IP55 | 3-Phase 400V/480V | Integrated EMC Filter | LCD Display | @Each of 1 | by Clipsal
Brand: Clipsal
SKU: SCHATV650U55N4
Alternatively Known As: Variable Speed Drive 5.5kW, VSD 5.5kW IP55, Clipsal SCHATV650U55N4, 5.5kW Frequency Inverter, Industrial VSD 400V
Technical Specifications
- Power Rating: 5.5kW
- Input Voltage: 3-phase 400V/480V
- Enclosure: IP55 (dust and water protected)
- Frequency Range: 0.1 to 599Hz
- Control Modes: V/F, sensorless vector
- Integrated EMC filter
- LCD display for configuration and monitoring
- Overload capacity: 150% for 60 seconds
- Operating temperature: -10°C to +50°C
- Dimensions (H x L x W): 350mm x 200mm x 180mm
- Weight: 12 kg
Key Features
- 5.5kW power rating for medium-duty industrial applications
- IP55 enclosure for dust and water protection
- Supports 3-phase 400V/480V input
- Integrated EMC filter for reduced electrical noise
- User-friendly interface with LCD display
- Multiple control modes including V/F and sensorless vector
- Built-in safety and protection features
Professional Installation Requirements
- Installation must be performed by a licensed electrician experienced with industrial motor control systems to ensure compliance with safety standards.
Applications
- Industrial motor control
- Pumps and fans
- HVAC systems
- Conveyor systems
- Manufacturing automation
Standards & Compliance
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Improves energy efficiency by optimizing motor speed
- Reduces power consumption and operational costs
- Minimizes mechanical wear, extending equipment lifespan
Warranty Information
12 months manufacturer's warranty from date of purchase.
Available Now
The Clipsal VSD IP55 5.5kW 400V/480V (SCHATV650U55N4) is available for immediate purchase. Ideal for industrial motor control, pumps, fans, and automation applications.
