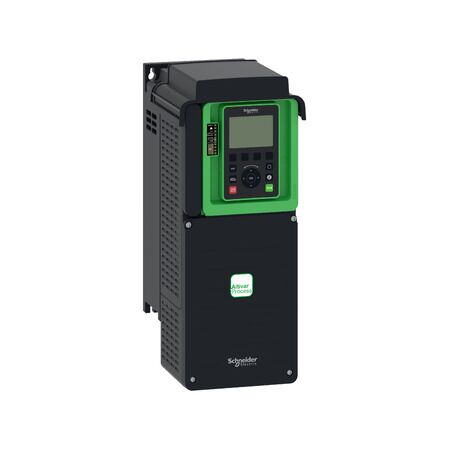

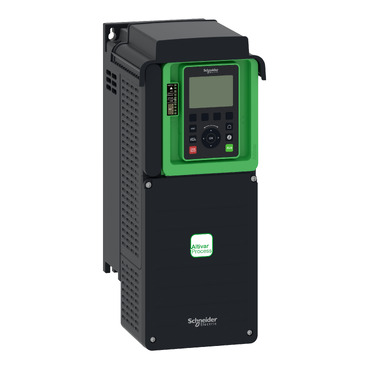

5.5kW Variable Speed Drive 240V | Single Phase Input | Three Phase Output | Integrated EMC Filter | @Pack of 1 | by Clipsal
The 5.5kW Variable Speed Drive 240V is designed for efficient motor control in industrial automation, HVAC systems, and pumps. With a single-phase input and three-phase output, it offers variable speed control and an integrated EMC filter, ensuring energy-saving operation and extended equipment lifespan. Ideal for licensed electricians, this drive enhances process control while minimizing mechanical wear.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: 5.5kW Variable Speed Drive 240V | Single Phase Input | Three Phase Output | Integrated EMC Filter | @Each of 1 | by Clipsal
Brand: Clipsal
SKU: SCHATV630U55M3
Alternatively Known As: Variable Frequency Drive, VFD, Inverter Drive, AC Motor Drive, 5.5kW VSD, Clipsal VSD 240V
Technical Specifications
- Power Rating: 5.5kW (7.5HP)
- Input Voltage: 200-240V AC, single phase
- Output Voltage: 0-240V AC, three phase
- Output Frequency: 0.1 to 599Hz
- Integrated EMC filter
- Control Method: V/F, Sensorless Vector Control
- Overload Capacity: 150% for 60 seconds
- Protection: Overload, overvoltage, undervoltage, short circuit, overheat
- Display: Digital keypad
- Operating Temperature: -10°C to +50°C
- Dimensions (H x L x W): 295mm x 232mm x 130mm
- Weight: 5.5 kg
Key Features
- 5.5kW (7.5HP) output power
- Single phase 240V input, three phase output
- Variable speed control for AC motors
- Integrated EMC filter
- Compact design for easy panel integration
- User-friendly interface with digital display
- Multiple protection features: overload, overvoltage, undervoltage, short circuit
- Energy-saving operation
Professional Installation Requirements
- Installation must be performed by a licensed electrician in accordance with local electrical regulations and manufacturer instructions.
Applications
- Industrial automation
- Pumps and fans
- HVAC systems
- Conveyors
- General motor control in manufacturing and processing plants
Standards & Compliance
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Reduces energy consumption by optimizing motor speed
- Minimizes mechanical wear, extending equipment lifespan
- Supports efficient process control, reducing waste
Warranty Information
12 months manufacturer's warranty from date of purchase.
Available Now
The Clipsal 5.5kW Variable Speed Drive 240V SCHATV630U55M3 is available for immediate purchase. Ideal for industrial automation, pumps, fans, and general motor control applications.
