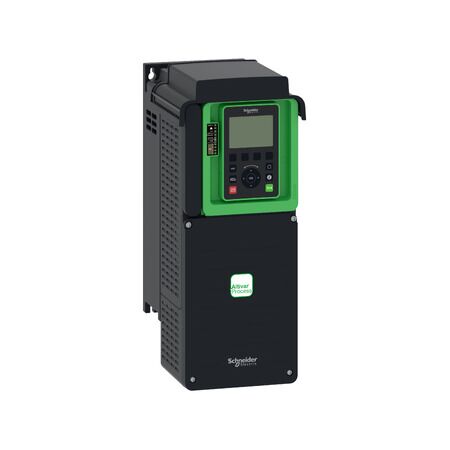

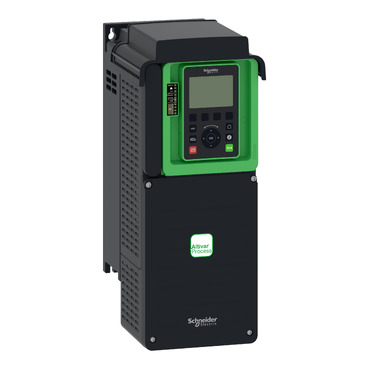

Variable Speed Drive 7.5kW | IP21 Protection | Integrated EMC Filter | LCD Display | @Pack of 1 | by Clipsal
The Variable Speed Drive 7.5kW is designed for efficient industrial motor control, featuring IP21 protection for indoor use and an integrated EMC filter to minimize electrical noise. With advanced motor control algorithms and a user-friendly LCD display, it's perfect for HVAC systems, pumps, and manufacturing automation, ensuring optimal energy efficiency and performance.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Variable Speed Drive 7.5kW | IP21 Protection | Integrated EMC Filter | LCD Display | @Each of 1 | by Clipsal
Brand: Clipsal
SKU: SCHATV630U75N4
Alternatively Known As: Variable Speed Drive 7.5kW, VSD 7.5kW 400V, Clipsal VSD SCHATV630U75N4, Schneider ATV630U75N4, 7.5kW Frequency Inverter, 7.5kW Motor Drive
Technical Specifications
- Power Rating: 7.5kW (10HP)
- Input Voltage: 3-phase 380-480V AC
- Output Voltage: 3-phase 0-480V AC
- Frequency Range: 0.1 to 500Hz
- IP21 enclosure for indoor use
- Integrated EMC filter
- Control Method: V/F, Sensorless Vector, Flux Vector
- Overload Capacity: 150% for 60 seconds
- Display: LCD keypad
- Communication: Modbus, CANopen (expandable)
- Operating Temperature: -10°C to +50°C
- Dimensions (H x L x W): 310mm x 232mm x 180mm
- Weight: 6.5 kg
Key Features
- 7.5kW power rating for medium-sized motor applications
- Supports 3-phase 400V/480V input
- IP21 protection for indoor environments
- Integrated EMC filter for reduced electrical noise
- Advanced motor control algorithms for energy efficiency
- User-friendly interface with LCD display
- Multiple communication options for integration
- Overload and short-circuit protection
Professional Installation Requirements
- Installation must be performed by a licensed electrician experienced with variable speed drives and in accordance with local electrical regulations.
Applications
- Industrial motor control
- Pumps and fans
- HVAC systems
- Conveyor systems
- Manufacturing automation
Standards & Compliance
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Improves energy efficiency by optimizing motor speed
- Reduces greenhouse gas emissions through lower energy consumption
- Minimizes mechanical wear, extending equipment lifespan
Warranty Information
12 months manufacturer's warranty covering defects in materials and workmanship.
Available Now
The Clipsal VSD IP21 7.5kW 400V/480V (SCHATV630U75N4) is available for immediate purchase. Ideal for industrial motor control, HVAC, and automation applications.
