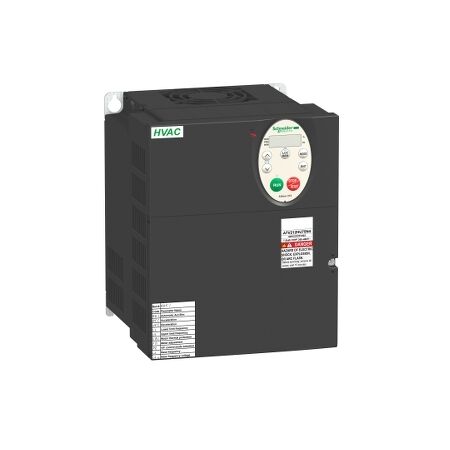

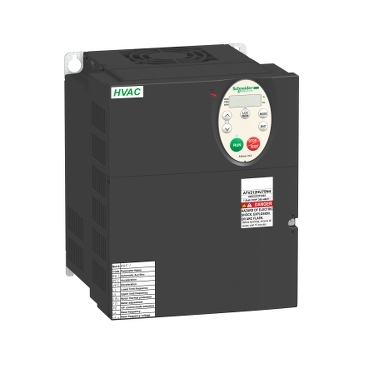

Variable Speed Drive 75kW | Optimized for HVAC | Integrated EMC Filter | Modbus & BACnet Communication | @Pack of 1 | by Clipsal
The Variable Speed Drive 75kW is designed for HVAC applications, delivering up to 100HP output power with energy-saving functions. With integrated EMC filtering and built-in Modbus and BACnet communication protocols, it ensures efficient motor control and easy integration into existing systems. Ideal for commercial HVAC systems, pumps, and fans, this drive enhances energy management in large infrastructure projects.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Variable Speed Drive 75kW | Optimized for HVAC | Integrated EMC Filter | Modbus & BACnet Communication | @Each of 1 | by Clipsal
Brand: Clipsal
SKU: SCHATV212HU75N4
Alternatively Known As: Schneider ATV212, Variable Speed Drive 75kW, 100HP VSD, HVAC Drive 480V, SCHATV212HU75N4
Technical Specifications
- Input Voltage: 3-phase 380-480V AC
- Output Power: 75kW (100HP)
- Output Current: 144A
- Frequency Range: 0.5 to 200Hz
- Integrated EMC filter (CEM)
- Control Type: V/F, Sensorless Vector Control
- Communication: Modbus, BACnet
- Protection: IP21 (standard), overload, short-circuit, overvoltage, undervoltage
- Ambient Temperature: -10°C to +50°C (derating above 40°C)
- Conformity: CE, UL, cUL, C-Tick
- Dimensions (H x L x W): 900mm x 350mm x 350mm
- Weight: 48 kg
Key Features
- Optimized for HVAC applications with energy-saving functions
- Supports 3-phase 380-480V input
- Delivers up to 75kW (100HP) output power
- Integrated EMC filter for reduced electrical noise
- Built-in Modbus and BACnet communication protocols
- Compact design for easy panel integration
- Advanced motor control for improved efficiency and reliability
- User-friendly interface for easy setup and monitoring
Professional Installation Requirements
- Installation must be performed by a licensed electrician experienced with variable speed drives and in accordance with local electrical regulations.
Applications
- HVAC systems in commercial buildings
- Pumps and fans in industrial facilities
- Water treatment plants
- Energy management in large infrastructure projects
Standards & Compliance
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Reduces energy consumption by optimizing motor speed
- Minimizes CO2 emissions through efficient operation
- Supports sustainable building management
Warranty Information
Standard 18-month warranty from date of invoice or 12 months from commissioning, whichever comes first.
Available Now
The Clipsal ATV212 75kW 100HP 480V 3-Phase Variable Speed Drive (SCHATV212HU75N4) is available for immediate purchase. Ideal for HVAC, industrial, and infrastructure applications requiring reliable motor control.
