Variable Speed Drive ATV212 30KW 40HP | 380-480V AC | Integrated EMC Filter | IP21 Rated | @Pack of 1 | by Clipsal
The ATV212 Variable Speed Drive is designed for 3-phase asynchronous motors, offering a power rating of 30kW (40HP) and input voltage of 380-480V AC. Ideal for HVAC systems and industrial applications, it features an integrated EMC filter for reduced electrical noise and energy-saving operation with automatic optimization. With an IP21 rating, it's perfect for indoor installations, ensuring reliable performance in various environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

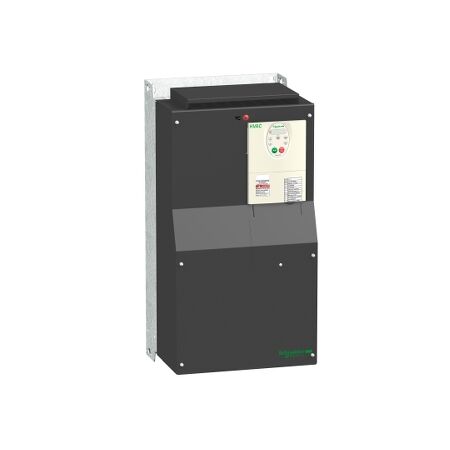

Product Name/Title: Variable Speed Drive ATV212 30KW 40HP | 380-480V AC | Integrated EMC Filter | IP21 Rated | @Each of 1 | by Clipsal
Brand: Clipsal
SKU: SCHATV212HD30N4
Alternatively Known As: ATV212 Variable Speed Drive, 30KW VSD, 40HP VSD, Schneider ATV212HD30N4, HVAC Drive, Clipsal VSD 30KW
Technical Specifications
- Power rating: 30kW (40HP)
- Input voltage: 380-480V AC, 3-phase
- Output voltage: 0-480V AC, 3-phase
- Frequency range: 0.5 to 200Hz
- Integrated EMC filter (CEM)
- IP21 enclosure rating
- Control type: V/F, sensorless vector control
- Operating temperature: -10°C to +50°C (derating above 40°C)
- Communication: Modbus, BACnet, Metasys N2, APOGEE FLN
- Display: Integrated keypad and LCD
- Dimensions (H x L x W): 584mm x 232mm x 220mm
- Weight: 18 kg
Key Features
- Variable speed drive for 3-phase asynchronous motors
- Rated power: 30kW (40HP)
- Input voltage: 380-480V AC, 3-phase
- Integrated EMC filter for reduced electrical noise
- IP21 protection for indoor installation
- Optimized for HVAC applications
- Energy-saving operation with automatic energy optimization
- Built-in display and keypad for easy configuration
Professional Installation Requirements
- Installation must be performed by a licensed electrician experienced with variable speed drives and in accordance with local electrical regulations.
Applications
- HVAC systems in commercial buildings
- Pumps and fans in industrial facilities
- Water treatment plants
- General motor control in manufacturing environments
Standards & Compliance
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Reduces energy consumption by optimizing motor speed
- Decreases greenhouse gas emissions through efficient operation
- Minimizes electrical noise with integrated EMC filter
Warranty Information
Standard 18-month warranty from date of invoice or 12 months from commissioning, whichever comes first.
Available Now
The Clipsal ATV212 30KW 40HP 480V TRI CEM Variable Speed Drive (SCHATV212HD30N4) is available for immediate purchase. Ideal for HVAC, industrial, and commercial motor control applications.
