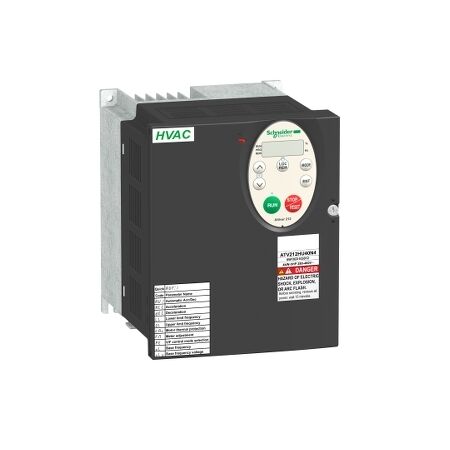

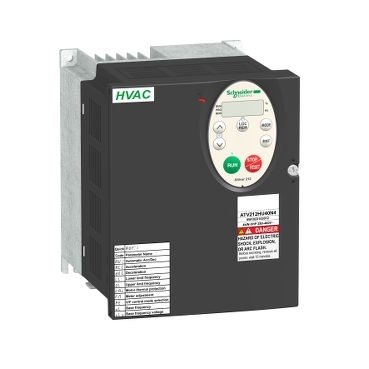

Variable Speed Drive ATV212 55kW 75HP 480V | Integrated EMC Filter | Optimized for HVAC | by Clipsal
The Variable Speed Drive ATV212 55kW 75HP 480V is engineered for heavy-duty applications, featuring an integrated EMC filter and optimized energy-saving capabilities for HVAC systems. Ideal for industrial environments, this drive ensures reliable motor control and efficiency, making it perfect for pumps, fans, and large infrastructure projects.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Variable Speed Drive ATV212 55kW 75HP 480V | Integrated EMC Filter | Optimized for HVAC | by Clipsal
Brand: Clipsal
SKU: SCHATV212HU55N4
Alternatively Known As: ATV212HU55N4, Schneider ATV212 55kW VSD, Clipsal Variable Speed Drive 75HP, ATV212 480V Drive, HVAC Inverter 55kW
Technical Specifications
- Power Rating: 55kW (75HP)
- Input Voltage: 380-480V AC, 3-phase
- Output Frequency: 0.5 to 200Hz
- Integrated EMC filter (CEM)
- Control Type: V/F, Sensorless Vector Control
- Overload Capacity: 120% for 60 seconds
- Protection: IP21 (standard), IP54 (optional kit)
- Ambient Temperature: -10°C to +50°C (derating above 40°C)
- Communication: Modbus, BACnet, Metasys N2, APOGEE FLN
- Conformity: CE, UL, cUL, C-Tick
- Dimensions (H x L x W): 650mm x 310mm x 350mm
- Weight: 48 kg
Key Features
- 55kW (75HP) power rating for heavy-duty applications
- Three-phase 480V input for industrial environments
- Optimized for HVAC applications with energy-saving features
- Integrated EMC filter for reduced electrical noise
- Compact design for easy panel integration
- Advanced motor control for improved efficiency and reliability
- Built-in CEM (EMC) compliance for industrial installations
Professional Installation Requirements
- Installation must be performed by a licensed electrician experienced with variable speed drives and in accordance with local electrical regulations and AS/NZS 3000 wiring rules.
Applications
- HVAC systems in commercial buildings
- Pumps and fans in industrial facilities
- Water treatment plants
- Energy management in large infrastructure projects
Standards & Compliance
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Reduces energy consumption by optimizing motor speed
- Minimizes CO2 emissions through efficient operation
- Supports sustainable building management systems
Warranty Information
Standard 18-month warranty from date of invoice or 12 months from commissioning, whichever comes first.
Available Now
The Clipsal ATV212 55kW 75HP 480V TRI CEM Variable Speed Drive (SCHATV212HU55N4) is available for immediate purchase. Ideal for HVAC, industrial, and infrastructure applications requiring reliable and efficient motor control.
