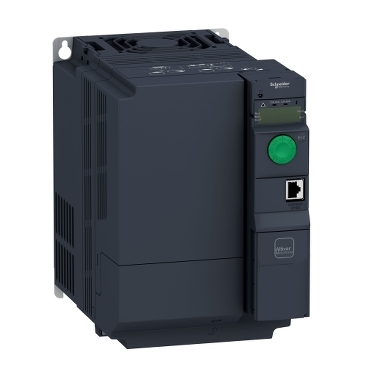

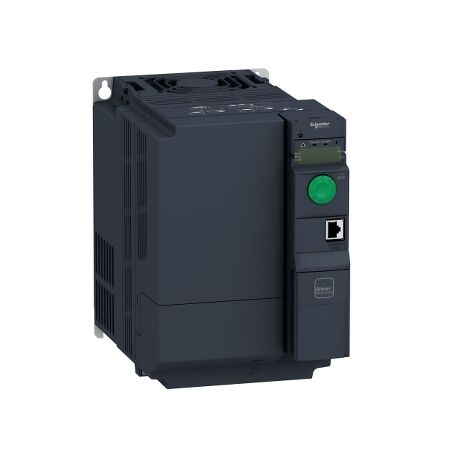

Variable Speed Drive ATV320 7.5kW 400V 3PH | Compact Book Format | Integrated Safe Torque Off | by Clipsal
The ATV320 Variable Speed Drive is a powerful 7.5kW solution designed for precise motor control in industrial automation. With a compact book format, it supports 400V three-phase input and features integrated Safe Torque Off for enhanced safety. Ideal for HVAC systems, conveyors, and manufacturing machinery, this drive optimizes energy consumption while extending equipment lifespan.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Variable Speed Drive ATV320 7.5kW 400V 3PH | Compact Book Format | Integrated Safe Torque Off | by Clipsal
Brand: Clipsal
SKU: SCHATV320U75N4B
Alternatively Known As: ATV320 Variable Speed Drive, Schneider ATV320U75N4B, 7.5kW VSD, 400V 3 Phase Inverter, Book Format VSD
Technical Specifications
- Power rating: 7.5kW (10HP)
- Input voltage: 380-500V AC three-phase
- Output voltage: 0-500V AC three-phase
- Input frequency: 50/60Hz
- Output frequency: 0.1-599Hz
- Control type: V/F, sensorless vector control
- Integrated Safe Torque Off (STO)
- Communication: Modbus, CANopen (expandable to Ethernet/IP, Profibus, etc.)
- Operating temperature: -10°C to +50°C (without derating)
- Degree of protection: IP20
- Dimensions (H x L x W): 260mm x 232mm x 72mm
- Weight: 3.5 kg
Key Features
- 7.5kW (10HP) power rating for robust motor control
- Supports 400V three-phase input
- Book format for compact panel installation
- Variable speed drive for precise motor speed regulation
- Integrated safety functions including Safe Torque Off (STO)
- Wide range of communication options (Modbus, CANopen, etc.)
- Energy saving through optimized motor control
- User-friendly interface with LCD display
Professional Installation Requirements
- Installation must be performed by a licensed electrician or qualified technician in accordance with local electrical regulations and manufacturer guidelines.
Applications
- Industrial automation: controlling the speed of three-phase motors
- Pumps and fans in HVAC systems
- Conveyors and material handling equipment
- General manufacturing and processing machinery
Standards & Compliance
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Reduces energy consumption by optimizing motor speed
- Minimizes mechanical wear, extending equipment lifespan
- Supports efficient process control, reducing waste
Warranty Information
Standard 2-year manufacturer warranty against defects.
Available Now
The Clipsal ATV320 7.5kW 400V 3PH Book Control Variable Speed Drive is available for immediate purchase. Ideal for industrial automation, HVAC, and manufacturing applications.
