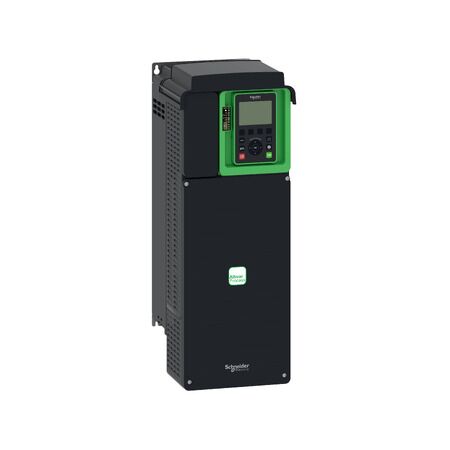

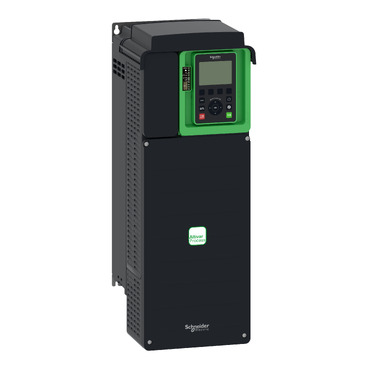

Variable Speed Drive IP21 18KW 400V/480V | 18.5kW Power Rating | Integrated EMC Filter | LCD Keypad | @Pack of 1 | by Clipsal
The Variable Speed Drive IP21 18KW 400V/480V is designed for robust motor control in industrial automation and HVAC applications. With an 18.5kW power rating and advanced motor control algorithms, it optimizes energy efficiency while minimizing mechanical wear. Ideal for licensed electricians, this drive features an integrated EMC filter and multiple communication options, ensuring reliable performance in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Variable Speed Drive IP21 18KW 400V/480V | 18.5kW Power Rating | Integrated EMC Filter | LCD Keypad | @Each of 1 | by Clipsal
Brand: Clipsal
SKU: SCHATV630D18N4
Alternatively Known As: ATV630D18N4, Schneider Altivar 630, Variable Frequency Drive 18kW, VSD 18.5kW 480V, Clipsal VSD IP21
Technical Specifications
- Power Rating: 18.5kW (25HP)
- Input Voltage: 380-480V AC, 3-phase
- Output Frequency: 0.1 to 500 Hz
- Enclosure: IP21/UL Type 1
- Integrated EMC filter
- Control: V/F, sensorless vector, and flux vector control
- Display: LCD keypad
- Communication: Modbus, Ethernet (optional cards)
- Operating Temperature: -15°C to +50°C
- Overload Capacity: 150% for 60 seconds
- Dimensions (H x L x W): 420mm x 232mm x 220mm
- Weight: 18 kg
Key Features
- 18.5kW (25HP) power rating for robust motor control
- Supports 380-480V three-phase input
- IP21/UL Type 1 enclosure for indoor use
- Advanced motor control algorithms for energy efficiency
- Integrated EMC filter for reduced electrical noise
- User-friendly interface with LCD display
- Multiple communication options including Modbus and Ethernet
- Comprehensive protection features: overload, short-circuit, and phase loss
Professional Installation Requirements
- Installation must be performed by a licensed electrician experienced with variable speed drives and industrial motor control systems. Ensure compliance with local wiring rules and safety standards.
Applications
- Industrial automation and process control
- Pumps and fans in HVAC systems
- Conveyor systems
- Material handling equipment
- General motor control in manufacturing plants
Standards & Compliance
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Reduces energy consumption by optimizing motor speed
- Minimizes mechanical wear, extending equipment lifespan
- Supports efficient process control, lowering overall carbon footprint
Warranty Information
Standard 2-year manufacturer warranty covering defects in materials and workmanship.
Available Now
The Clipsal Variable Speed Drive IP21 18KW 400V/480V (SCHATV630D18N4) is available for immediate purchase. Ideal for industrial automation, HVAC, and process control applications.
