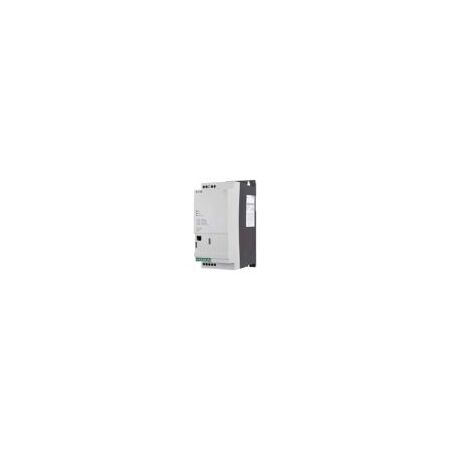

Variable Speed Drive Starter | 400V AC | 8.5A Current | IP20 Protection by Eaton

BRAND: Eaton
SKU: Y7-174338
$1,263.30 List price: $1,574.20
+ −
30 Days Return Delivery Options
The Eaton DE1 Variable Speed Drive Starter offers 400V AC operation and 8.5A current capacity—ideal for industrial motor speed control. Built for automation systems, it enhances energy efficiency and reduces operational costs with adjustable switching frequency and robust design.

Product Name/Title: Variable Speed Drive Starter | 400V AC | 8.5A Current | IP20 Protection by Eaton

Brand: Eaton

SKU: Y7-174338

Alternatively Known As: Variable speed drive starter, motor speed controller, Eaton DE1 motor starter, 3-phase variable frequency drive

Technical Specifications
  • Rated operational voltage: 400 V AC, 3-phase
  • Rated operational current: 8.5 A at 150% overload
  • Rated operational power: 4 kW (5 HP)
  • Switching frequency: 16 kHz, adjustable 4 - 32 kHz
  • Communication: Modbus RTU, OP-Bus (RS485)
  • Degree of protection: IP20
  • Shock resistance: 15 g mechanical, IEC/EN 60068-2-27
  • Operating temperature: -10 °C to 60 °C
  • Overload cycle: 60 seconds every 600 seconds
  • Braking torque: Max 30% MN standard, adjustable to 100%
  • Input current ILN at 150% overload: 10 A
  • Leakage current at ground: < 3.5 mA (AC-operated)
  • Mains voltage range: 380 V to 480 V
  • Output frequency range: 0 Hz to 300 Hz
  • Parameterization options: drivesConnect software, mobile app, Fieldbus, keypad
  • Dimensions (H x L x W): 230mm x 169mm x 90mm
  • Weight: 1.6 kg
Key Features
  • Rated operational voltage: 400 V AC, 3-phase
  • Rated operational current: 8.5 A at 150% overload
  • Rated operational power: 4 kW (5 HP)
  • Radio interference suppression filter included
  • Parameterization via drivesConnect, mobile app, Fieldbus, and keypad
  • Communication interfaces: Modbus RTU, OP-Bus (RS485)
  • Protection: Finger and back-of-hand proof
  • Degree of protection: IP20
  • Shock resistance: 15 g mechanical
  • Operating temperature range: -10 °C to 60 °C
  • Overload cycle: 60 s every 600 s
  • Switching frequency adjustable 4 - 32 kHz
  • Braking torque adjustable up to 100%
Professional Installation Requirements
  • Professional installation by a qualified electrician or technician is required to ensure compliance with electrical standards and safe operation.
Applications
  • Industrial motor speed control
  • Variable speed drives for 3-phase motors
  • Automation and process control systems
  • Branch circuits requiring motor control
Standards & Compliance
  • Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
  • Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
  • Improves energy efficiency by enabling precise motor speed control
  • Reduces energy consumption and operational costs
  • Includes radio interference suppression to minimize electromagnetic pollution
Warranty Information

Standard Eaton warranty applies; please refer to Eaton's official warranty policy for details.

Available Now

The Eaton DE1 Variable Speed Starter is available for immediate purchase, ideal for industrial and commercial motor control applications.

Product specifications (skuPage.174338.pdf, 111 Kb) [Download]
