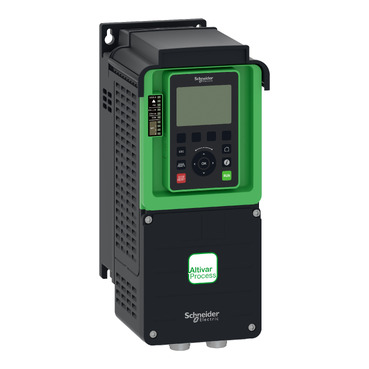

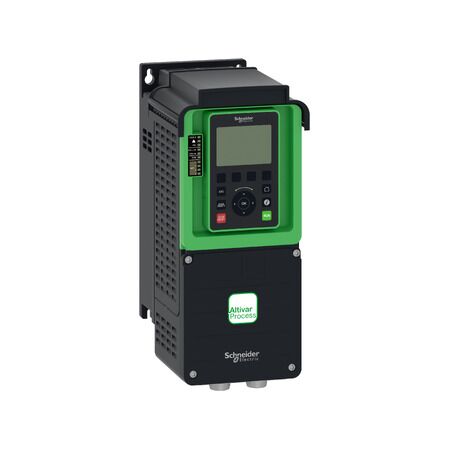

Variable Speed Drive VSD 0.75kW 400V | IP21 Protection | Integrated EMC Filter | by Clipsal
The Variable Speed Drive VSD 0.75kW 400V is designed for efficient motor control in industrial automation and HVAC systems. With an IP21 protection rating and integrated EMC filter, it ensures reliable performance in indoor environments. Ideal for pumps, fans, and conveyor systems, this drive optimizes energy consumption while extending equipment life, making it a perfect choice for commercial and industrial applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Variable Speed Drive VSD 0.75kW 400V | IP21 Protection | Integrated EMC Filter | by Clipsal
Brand: Clipsal
SKU: SCHATV630U07N4
Alternatively Known As: Variable Speed Drive, VSD 0.75kW, 400V VSD, Clipsal VSD, SCHATV630U07N4, Altivar 630, ATV630U07N4
Technical Specifications
- Power Rating: 0.75kW (750W)
- Input Voltage: 380-480V AC, 3-phase
- Output Voltage: 0-480V AC, 3-phase
- Frequency Range: 0.1 to 500Hz
- IP21 protection rating
- Integrated EMC filter
- Control Method: V/F, Sensorless Vector Control
- Display: Integrated LCD
- Operating Temperature: -10°C to +50°C
- Communication: Modbus, CANopen (optional expansion)
- Dimensions (H x L x W): 143mm x 148mm x 72mm
- Weight: 2.5 kg
Key Features
- Variable Speed Drive (VSD) for 3-phase motors
- IP21 protection for indoor use
- 0.75kW (750W) power rating
- 400V three-phase input
- Integrated EMC filter
- Compact design for easy panel integration
- User-friendly interface with integrated display
- Energy-saving operation
Professional Installation Requirements
- Installation must be performed by a licensed electrician experienced with variable speed drives and in accordance with local electrical regulations.
Applications
- Industrial automation
- HVAC systems
- Pumps and fans
- Conveyor systems
- General motor control in commercial and industrial environments
Standards & Compliance
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Reduces energy consumption by optimizing motor speed
- Minimizes mechanical wear and tear, extending equipment life
- Supports efficient operation in HVAC and industrial systems
Warranty Information
12 months manufacturer's warranty from date of purchase.
Available Now
The Clipsal VSD IP21 0.75kW 400V/48 (SCHATV630U07N4) is available for immediate purchase. Ideal for industrial and commercial motor control applications.
