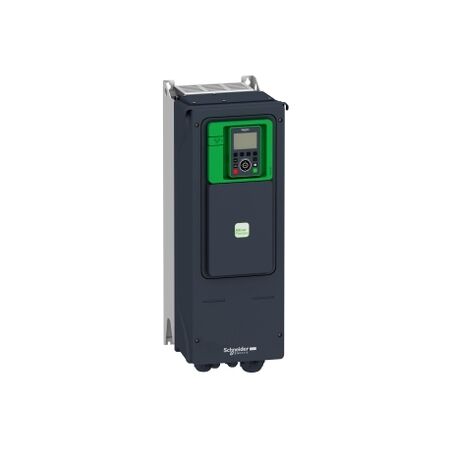

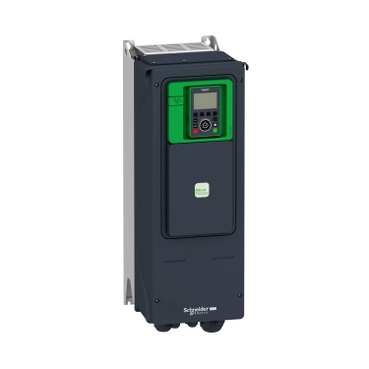

Variable Speed Drive VSD IP55 2.2kW 400V/480V | Integrated EMC Filter | Robust Design | by Clipsal
The Variable Speed Drive VSD IP55 2.2kW 400V/480V is engineered for reliable motor control in industrial applications. With an IP55 enclosure for dust and water protection and an integrated EMC filter, it ensures optimal performance in harsh environments. Ideal for HVAC systems, pumps, and conveyor systems, this drive enhances energy efficiency while minimizing operational costs.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Variable Speed Drive VSD IP55 2.2kW 400V/480V | Integrated EMC Filter | Robust Design | by Clipsal
Brand: Clipsal
SKU: SCHATV650U22N4
Alternatively Known As: Variable Speed Drive, VSD 2.2kW, Clipsal VSD, Frequency Inverter, Motor Drive, SCHATV650U22N4
Technical Specifications
- Power Rating: 2.2kW
- Input Voltage: 3-phase 400V/480V
- Enclosure Rating: IP55 (dust and water protected)
- Integrated EMC filter
- Output Frequency: 0.1 to 599 Hz
- Control Method: V/F, Sensorless Vector Control
- Operating Temperature: -10°C to +50°C
- Overload Capacity: 150% for 60 seconds
- Dimensions (H x L x W): 295mm x 232mm x 130mm
- Weight: 6.5 kg
Key Features
- 2.2kW power rating for reliable motor control
- IP55 enclosure for dust and water protection
- Supports 3-phase 400V/480V input
- Robust design for harsh industrial environments
- Integrated EMC filter for reduced electrical noise
- User-friendly interface for easy setup and monitoring
Professional Installation Requirements
- Installation must be performed by a licensed electrician in accordance with local regulations and AS/NZS 3000 standards.
Applications
- Industrial automation
- Pumps and fans
- HVAC systems
- Conveyor systems
- General motor control in manufacturing environments
Standards & Compliance
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Improves energy efficiency by optimizing motor speed
- Reduces power consumption and operational costs
- Minimizes mechanical wear, extending equipment lifespan
Warranty Information
12 months manufacturer's warranty from date of purchase.
Available Now
The Clipsal VSD IP55 2.2kW 400V/480V Variable Speed Drive (SCHATV650U22N4) is available for immediate purchase. Ideal for industrial motor control applications requiring robust and reliable performance.
