Variable Speed Starter 400V AC | 3.6A Current | 1.5kW Power | IP20 by Eaton

BRAND: Eaton
SKU: Y7-180664
$842.80 List price: $1,050.30
+ −
30 Days Return Delivery Options

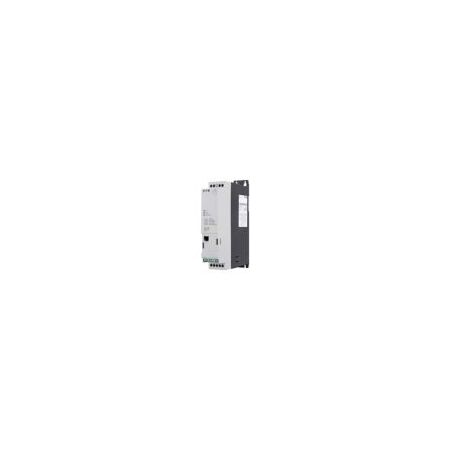

The Eaton DE11 Variable Speed Starter offers 400V AC operation and 3.6A current, making it ideal for industrial motor speed control. Built for automation systems, it features Modbus RTU and CANopen communication, ensuring efficient performance and compliance with electrical standards.

Product Name/Title: Variable Speed Starter 400V AC | 3.6A Current | 1.5kW Power | IP20 by Eaton

Brand: Eaton

SKU: Y7-180664

Alternatively Known As: Eaton DE11 Variable Speed Starter, DE11 Motor Starter, Variable Frequency Drive Starter, DE11-343D6FN-N20N VSD Starter

Technical Specifications
  • Rated operational voltage: 400 V AC, 3-phase
  • Rated operational current (Ie): 3.6 A at 150% overload
  • Rated operational power: 1.5 kW (2 HP)
  • Output frequency range: 0 Hz to 300 Hz
  • Switching frequency: 16 kHz (adjustable 4 - 32 kHz)
  • Communication interfaces: Modbus RTU, CANopen, OP-Bus (RS485)
  • Degree of protection: IP20
  • Operating temperature: -10 °C to 60 °C
  • Shock resistance: 15 g, IEC/EN 60068-2-27
  • Overload cycle: 60 seconds every 600 seconds
  • Radio interference class: C2, C3 depending on motor cable length
  • Input current ILN at 150% overload: 4.9 A
  • Leakage current at ground max: < 3.5 mA (AC-operated)
  • Short-circuit protection rating: 6 A UL (Class CC or J)
  • Parameterization options: drivesConnect, mobile app, Fieldbus, keypad
  • Dimensions (H x L x W): 230mm x 169mm x 45mm
  • Weight: 1.04 kg
Key Features
  • Rated operational voltage 400 V AC, 3-phase
  • Operational current 3.6 A at 150% overload
  • Power rating 1.5 kW (2 HP)
  • Radio interference suppression filter included
  • Parameterization via drivesConnect, mobile app, Fieldbus, and keypad
  • Communication interfaces: Modbus RTU, CANopen, OP-Bus (RS485)
  • Protection: Finger and back-of-hand proof
  • Degree of protection: IP20
  • Shock resistance 15 g according to IEC/EN 60068-2-27
  • Operating temperature range -10 °C to 60 °C
  • Overload cycle: 60 seconds every 600 seconds
  • Switching frequency adjustable 4 - 32 kHz
  • Supports SmartWire-DT module integration
  • Compliance with IEC/EN 61800 series and UL standards
Professional Installation Requirements
  • Professional installation by a qualified electrician or technician is required to ensure compliance with electrical standards and proper integration into motor control systems.
Applications
  • Industrial motor speed control
  • Branch circuits requiring variable speed starters
  • Automation systems with Modbus RTU, CANopen, or EtherNet/IP communication
Standards & Compliance
  • Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
  • Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
  • Energy-efficient motor speed control reduces power consumption
  • Radio interference suppression minimizes electromagnetic pollution
  • Supports precise speed control to optimize motor performance and reduce waste
Warranty Information

Standard Eaton warranty applies; please refer to Eaton's official warranty policy for details.

Available Now

The Eaton DE11 Variable Speed Starter DE11-343D6FN-N20N is available for immediate purchase, ideal for industrial motor control and automation applications.

Product specifications (skuPage.180664.pdf, 123 Kb) [Download]
