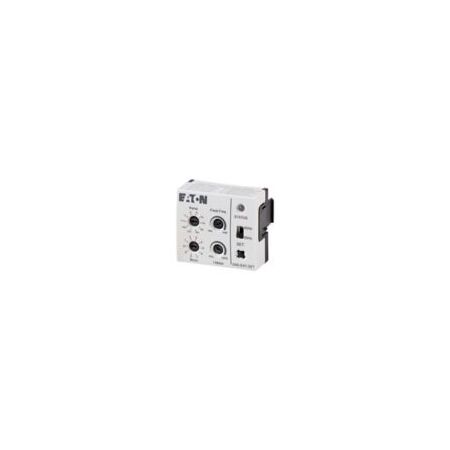

Variable Speed Starter Configuration Module | -10°C to 50°C | Plug-in Connection & Motor Protection by Eaton
The DXE-EXT-SET is a variable speed starter configuration module with a temperature range of -10°C to 50°C and a plug-in connection for easy installation. Ideal for configuring ramp time and motor protection settings in industrial and commercial applications, it ensures efficient motor control and reliable operation.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Variable Speed Starter Configuration Module | -10°C to 50°C | Plug-in Connection & Motor Protection by Eaton
Brand: Eaton
SKU: Y7-174621
Alternatively Known As: Eaton DE1 Configuration Module, DXE Extension Module, Variable Speed Starter Configuration Module
Technical Specifications
- Ambient operating temperature range: -10 °C to 50 °C
- Connection type: Plug-in connection
- Suitable for branch circuits (UL/CSA)
- Certified by UL for use in Canada and US (UL File No.: E172143)
- Complies with IEC/EN61800-5 and IEC/EN61800-3 standards
- Product weight: 0.03 kg
- Product dimensions: 43 mm (W) x 38 mm (H) x 34 mm (D)
- Dimensions (H x L x W): 38mm x 34mm x 43mm
- Weight: 0.03 kg
Key Features
- Selector switch for ramp time and operating mode
- Potentiometer for motor protection and fixed frequency
- Plug-in connection for easy installation
- Meets product standard requirements for corrosion resistance, thermal stability, UV resistance, and inscriptions
Professional Installation Requirements
- Installation should be performed by a qualified electrician or panel builder familiar with variable speed starter systems and electrical safety standards.
Applications
- Configuring ramp time for DE1 variable speed starters
- Motor protection settings
- Terminal mode of operation configuration for DE1 starters
- Suitable for branch circuits (UL/CSA)
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Enables efficient motor control which can reduce energy consumption
- Supports reliable operation reducing equipment downtime and waste
Warranty Information
Warranty details available upon request from Eaton; typically includes coverage against manufacturing defects.
Available Now
The Eaton DXE Configuration Module DXE-EXT-SET is available now for immediate purchase. Ideal for industrial and commercial motor control applications.
