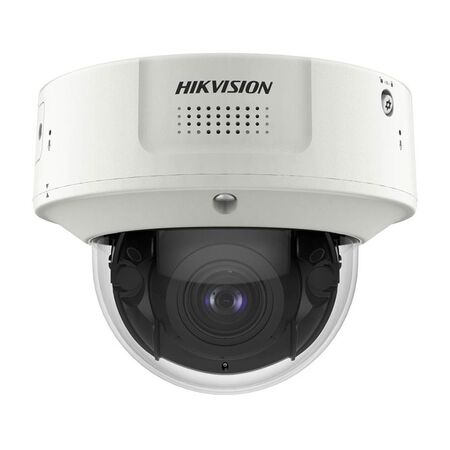

Varifocal Dome Camera 12MP 2.8-12mm Hikvision
Hikvision varifocal dome camera features 12MP resolution and a 2.8-12mm lens. Ideal for CCTV and security installations.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Hikvision 12MP IP Dome Camera, Hikvision Motorised Varifocal Dome, Hikvision DeepinView CCTV Camera
Technical Specifications
- Image Resolution: 4000 × 3000 pixels, 12MP
- Image Sensor: 1/1.8-inch progressive scan CMOS
- Lens: Motorised varifocal 2.8–12mm
- Horizontal Field of View: 102° to 44.2°
- Minimum Illumination: 0.0054 lux colour; 0.002 lux black and white; 0 lux with IR
- Supplementary Lighting: 850nm IR, up to 40m monitoring range
- Wide Dynamic Range: 120dB AWDR
- Iris: P-iris
- Video Compression: H.265+, H.265, H.264+, H.264 and MJPEG
- Network Interface: 10/100/1000M Ethernet
- Power: 12V DC, 24V AC or PoE+ IEEE 802.3at
- Maximum Power Consumption: Approximately 15.7W via PoE+
- Ingress Protection: IP67
- Impact Protection: IK10
- Audio: Built-in dual microphone and speaker
- Storage: MicroSD card support up to 1TB
- Compliance Markings: RCM AS/NZS CISPR 32; IEC 60529 IP67; IEC 62262 IK10
- Environmental Compliance: RoHS, WEEE, REACH and PVC-free construction
- Dimensions (H x L x W): 114.1mm x 144.3mm x 144.3mm
- Weight: 0.97 kg
Key Features
- 12MP resolution for detailed surveillance imagery
- Motorised 2.8–12mm varifocal lens for adjustable viewing coverage
- DarkFighter low-light imaging technology
- Smart IR illumination up to 40m
- 120dB wide dynamic range for challenging backlit scenes
- IP67-rated weather and dust resistance
- IK10-rated vandal resistance
- Supports PoE+ for combined network and power connection
- H.265+ compression reduces bandwidth and storage requirements
- DeepinView analytics platform with intelligent detection functions
- Built-in microphone and speaker for two-way audio security applications
Professional Installation Requirements
- Installation should be performed by a suitably qualified security or network-cabling technician. Any associated mains-voltage power supply installation must be completed by a licensed electrician in accordance with AS/NZS 3000.
Applications
- Commercial CCTV and security systems
- Retail stores, warehouses and offices
- Car parks, building perimeters and loading areas
- Transport, infrastructure and industrial sites
- High-detail monitoring of entrances, corridors and open areas
- Outdoor surveillance requiring weather and vandal resistance
Standards & Compliance
- AS/NZS 62676.1.1:2020 – Video surveillance systems for use in security applications, system requirements
- AS/NZS 62676.1.2:2020 – Video transmission performance requirements
- AS/NZS 62676.5:2020 – Data specifications and image quality performance for camera devices
- AS/NZS CISPR 32:2015 – Electromagnetic compatibility for multimedia equipment, as referenced by the RCM marking
- AS/NZS 3000:2018 – Applicable to associated electrical installation work
Environmental Benefits
- H.265+ video compression can reduce network bandwidth and recording-storage requirements
- RoHS, WEEE and REACH compliance supports reduced use of restricted substances and responsible end-of-life handling
- IP67 and IK10 protection can extend service life and reduce replacement waste
- PVC-free construction is specified in the manufacturer documentation
- PoE+ operation can simplify cabling and reduce the need for separate camera power infrastructure
Warranty Information
Hikvision Australia offers a five-year manufacturer warranty on qualifying premium project-oriented products, including DeepinView network camera series manufactured from 1 March 2022. Confirm eligibility and warranty conditions with the authorised Australian distributor for the supplied model.
Available Now
Available through Hikvision and authorised Australian security-equipment distributors, subject to current distributor stock.
