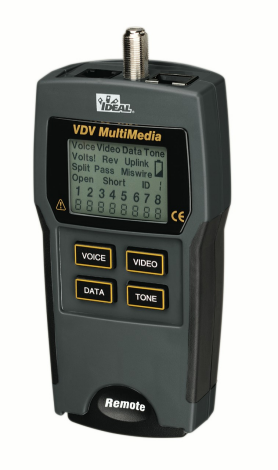

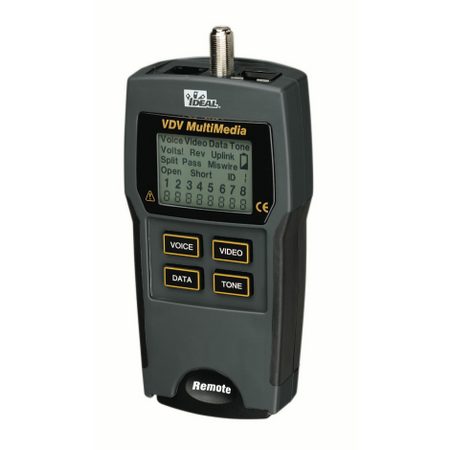

VDV Multimedia Wiremapper and Tester | Tests RJ45, RJ11, Coax | LCD Display by Ideal Electrical
The VDV Multimedia Wiremapper and Tester is designed for testing and verifying low-voltage and data communication cables, including RJ45, RJ11, and coax types. Ideal for technicians and installers, it features an LCD display for cable continuity verification and a built-in tone generator for enhanced functionality.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: VDV Multimedia Wiremapper and Tester
Brand: Ideal Electrical
SKU: IDL33-856
Alternatively Known As: Cable Wiremapper Tester, Network Cable Tester, RJ45 Wiremap Tester, Coax Cable Tester, Voice/Data Cable Tester
Technical Specifications
- Tests data/ethernet RJ45 (8P8C), voice/phone RJ11/12 (6P6C/6P4C), and video/coax cables
- Displays PASS or ERROR for cable termination verification
- Detects opens, shorts, miswires, reversals, split pairs, and shield continuity
- Tone generator with four user-selectable analog tone patterns
- Uses 1 x 9V battery
- Auto power off and low battery indication
- Dimensions (H x L x W): 80mm x 40mm x 150mm
- Weight: 0.3 kg
Key Features
- LCD-based wire mapper verifies cable continuity and wiring correctness
- Identifies shorts, opens, mis-wires, reversals, and split pairs by pin
- Tests twisted pair, coax, and phone type cables including CAT3, CAT5e, CAT6, CAT6A, RG59, RG6, RG6 Quad
- Interfaces include RJ45, RJ11, RJ12, and Female F port
- Built-in tone generator with four selectable analog tones
- Auto power off and low battery indication
Professional Installation Requirements
- No professional installation required; designed for use by technicians and installers for cable testing and verification.
Applications
- Testing and verifying wiring of low-voltage and data communication cables
- Suitable for voice, data, and video cable testing
- Used in telecommunications, networking, and audiovisual installations
Standards & Compliance
- AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Helps reduce cable waste by accurately identifying wiring faults before installation
- Battery efficient with auto power off feature to conserve energy
Warranty Information
Limited 1 Year warranty.
Available Now
The Ideal Electrical VDV Multimedia Wiremapper and Tester is available now for immediate purchase. Ideal for telecommunications, networking, and audiovisual cable testing applications.
