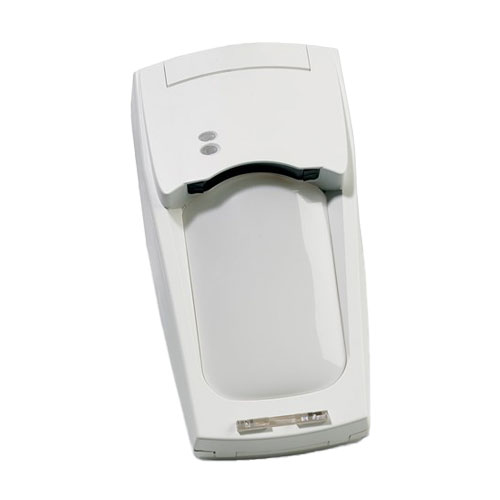

Vector PIR 20m plus 60m Range Aritech Tecom
Tecom Aritech Vector PIR features 20m coverage plus 60m range. Ideal for alarm systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Tecom Vector PIR, Aritech VE735, Combined Volumetric and Long-Range PIR Sensor, 20m/60m PIR Detector
Technical Specifications
- Detection Coverage: 20m volumetric and 60m long range
- Detection Pattern: 11 curtains at 20m plus 1 curtain at 60m
- Viewing Angle: 86° at 20m and 3° at 60m
- Input Voltage: 9–15VDC, 12V nominal
- Normal Current Consumption: 11mA
- Maximum Current Consumption: 15mA
- Mounting Height: 1.8–3.0m
- Operating Temperature: -10°C to +55°C
- Relative Humidity: Maximum 95%
- Alarm Output: 80mA at 30VDC maximum
- Tamper Output: 100mA at 30VDC maximum
- Signal Processing: Vector pattern recognition with DSP
- Protection Rating: IP30 / IK02
- European Compliance: EN 50131-2-2 Grade 3
- Relay Configuration: NC/NO alarm relay
- Dimensions (H x L x W): 175mm x 66mm x 93mm
- Weight: 0.275 kg
Key Features
- 20m volumetric PIR coverage with an additional 60m long-range curtain
- Patented Vector pyro-electric sensing technology
- DSP-driven detection algorithm for improved false-alarm rejection
- High-density Step and Glide Focus mirror optics
- Left-to-right or right-to-left detection modes
- Three selectable alarm sensitivity levels
- Self-test function with trouble output relay and LED indicators
- Event memory for detected alarm events
- Full under-crawl detection
- Plug-in electronics and sealed optics
- Pry-off and cover tamper protection
- Compatible with the VE710 laser beam alignment tool
Professional Installation Requirements
- Installation, alignment and commissioning should be carried out by a suitably qualified security installer in accordance with the alarm system manufacturer's instructions and applicable Australian requirements. The detector requires a 9–15VDC alarm-system connection.
Applications
- Indoor intruder alarm systems
- Commercial security systems
- Industrial and warehouse security
- Long corridors and perimeter-style indoor detection areas
- Security installations requiring combined volumetric and long-range PIR coverage
Standards & Compliance
- AS/NZS 2201.1:2007 is applicable to the design, installation, commissioning and maintenance of intruder alarm systems; specific Australian product compliance for the VE735 is not stated by the manufacturer.
Environmental Benefits
- Low 11mA normal operating current helps minimise energy demand within continuously powered alarm systems
- Long service life and robust tamper-protected construction can reduce replacement frequency and associated electronic waste
- DSP processing can reduce nuisance alarms, helping limit unnecessary alarm-system activations and service call-outs
Warranty Information
Aritech's Australian warranty statement lists hardwired sensors and passive intrusion components with a 5-year warranty, subject to the manufacturer's warranty terms and verification process.
Available Now
Available through Aritech and authorised Australian security-system distributors, subject to current product range and distributor stock.
