Vehicle Classification System TIC501 | High Counting Accuracy | Up to 4 Lanes | by SICK
The TIC501 Vehicle Classification System is designed for precise traffic management, offering high counting accuracy of over 99.8% for two lanes. Ideal for monitoring and classifying vehicles, this system supports overhead or lateral installation for up to 4 lanes and can be expanded to cover 16 lanes. With a typical classification accuracy of 96%, it’s perfect for traffic monitoring applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- System components: LMS511 SE
- Number of covered lanes: Up to 4 lanes
- System extension: Up to 16 lanes
- Axle counting option: No
- Counting accuracy: > 99.8% (overhead detection of 2 lanes)
- Classification accuracy: Typically 96% (TLS8+1 classes)
- Trigger lines: Max. 15 m
- Installation position: Overhead or laterally
- Ambient operating temperature: -40°C to +60°C

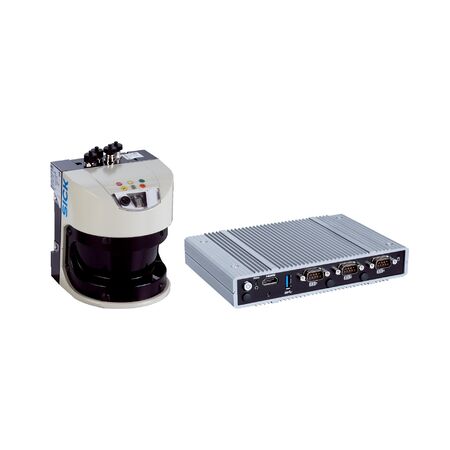

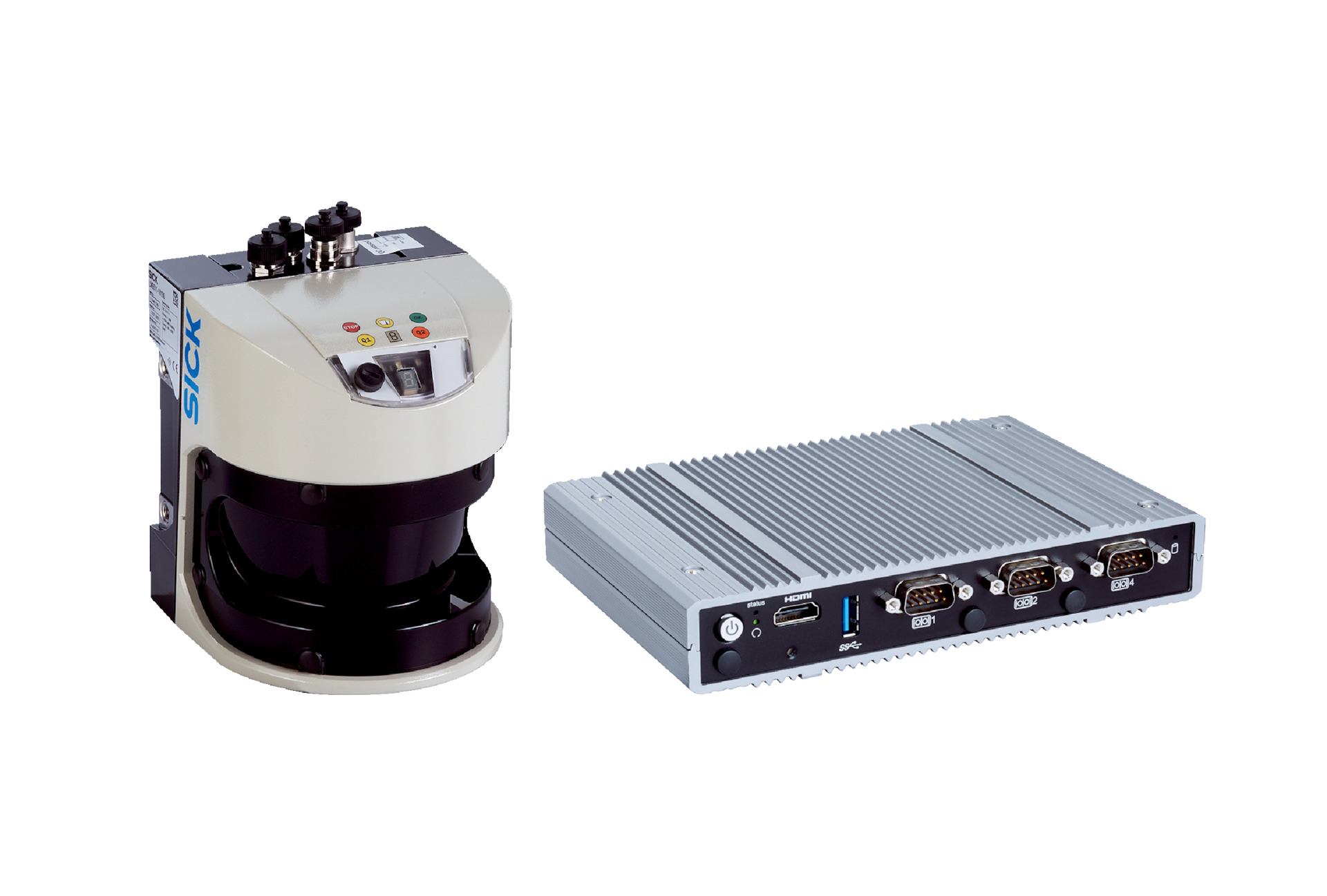

- Items supplied: 2D LiDAR sensor LMS511 SE, Traffic Controller TIC with software, USB stick with TEMS info sample client, source code, TEMS analyzer, operating instructions
- Dimensions (H x L x W): 150mm x 400mm x 300mm
- Weight: 4.4 kg
Key Features
- 1-scanner solution using LMS511 SE sensor
- Vehicle classification with selectable category systems up to 30 classes
- High counting accuracy > 99.8% for 2 lanes overhead detection
- Typical classification accuracy of 96% for TLS8+1 classes
- Trigger lines up to 15 meters
- Confidence level provided for all vehicle data
- Point cloud data output
Professional Installation Requirements
- Professional installation by qualified personnel is recommended to ensure correct positioning and calibration for accurate vehicle classification and counting.
Applications
- Vehicle classification and counting for traffic management
- Overhead or lateral installation for up to 4 lanes
- Expandable system for up to 16 lanes
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Non-intrusive traffic monitoring reduces road surface damage
- Energy-efficient LiDAR technology minimizes power consumption
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK for detailed warranty terms.
Available Now
The SICK TIC501 Vehicle Classification and Counting System is available for immediate purchase, ideal for traffic management and monitoring applications.
