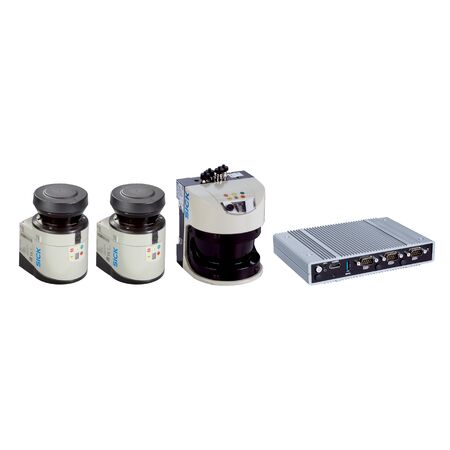

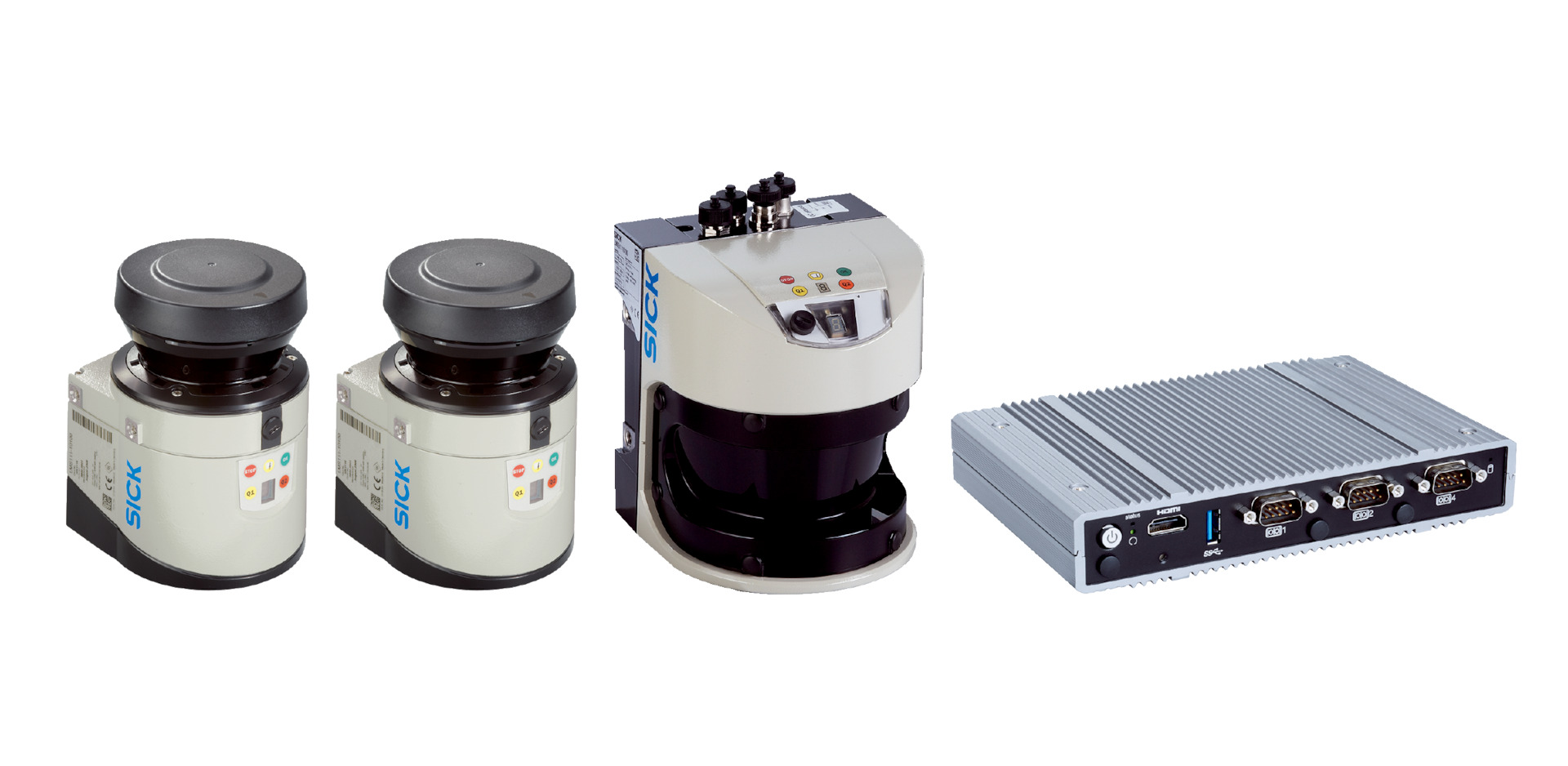

Vehicle Dimension Measurement System VPS153 | 3-Scanner Solution | Accurate Length, Width & Height Measurement | by SICK
The Vehicle Dimension Measurement System VPS153 is designed for precise vehicle dimension measurement, featuring a 3-scanner solution that accurately measures length, width, height, and speed. Ideal for traffic monitoring and industrial applications, it supports stop-and-go functionality and requires professional installation for optimal performance.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Number of covered lanes: 1
- Measuring range requires optically clear scan planes
- Installation height: 5 m to 8 m
- Length measurement accuracy: ±100 mm at speeds <7 km/h
- Width measurement accuracy: ±60 mm at speeds <7 km/h
- Height measurement accuracy: ±60 mm at speeds <7 km/h
- Calibration accuracy: 30 mm x 30 mm x 30 mm (L x W x H)
- Driving speed range: 3 km/h to 100 km/h with varying accuracy
- Minimum object size: 1 m x 0.6 m x 0.6 m
- Maximum object size: 30 m x 5 m x 5 m
- Stop-and-go functionality supported
- Dimensions (H x L x W): 800mm x 1500mm x 1200mm
- Weight: 15 kg
Key Features
- 3-scanner solution for accurate vehicle dimension measurement
- Measures vehicle length, width, height, speed, and start/end points
- Stop-and-go functionality for precise measurement
- Calibration included for accuracy
- Recommended for single vehicle passage through measuring station
Professional Installation Requirements
- Professional installation by qualified technicians is required to ensure proper calibration and optimal system performance.
Applications
- Measurement of vehicle dimensions including length, width, and height
- Traffic monitoring and vehicle data collection
- Industrial and transportation system integration
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Enables efficient traffic management reducing congestion and emissions
- Supports optimized vehicle flow contributing to lower fuel consumption
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK for detailed warranty terms.
Available Now
The SICK VPS153 Vehicle Dimension Measurement System is available for immediate purchase, ideal for traffic management and vehicle monitoring applications.
