Vehicle Dimension Measurement System VPS553 | 3-Scanner Solution | Accurate Length, Width & Height Measurement | by SICK

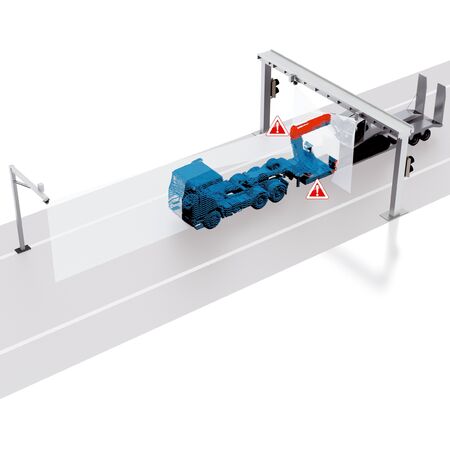

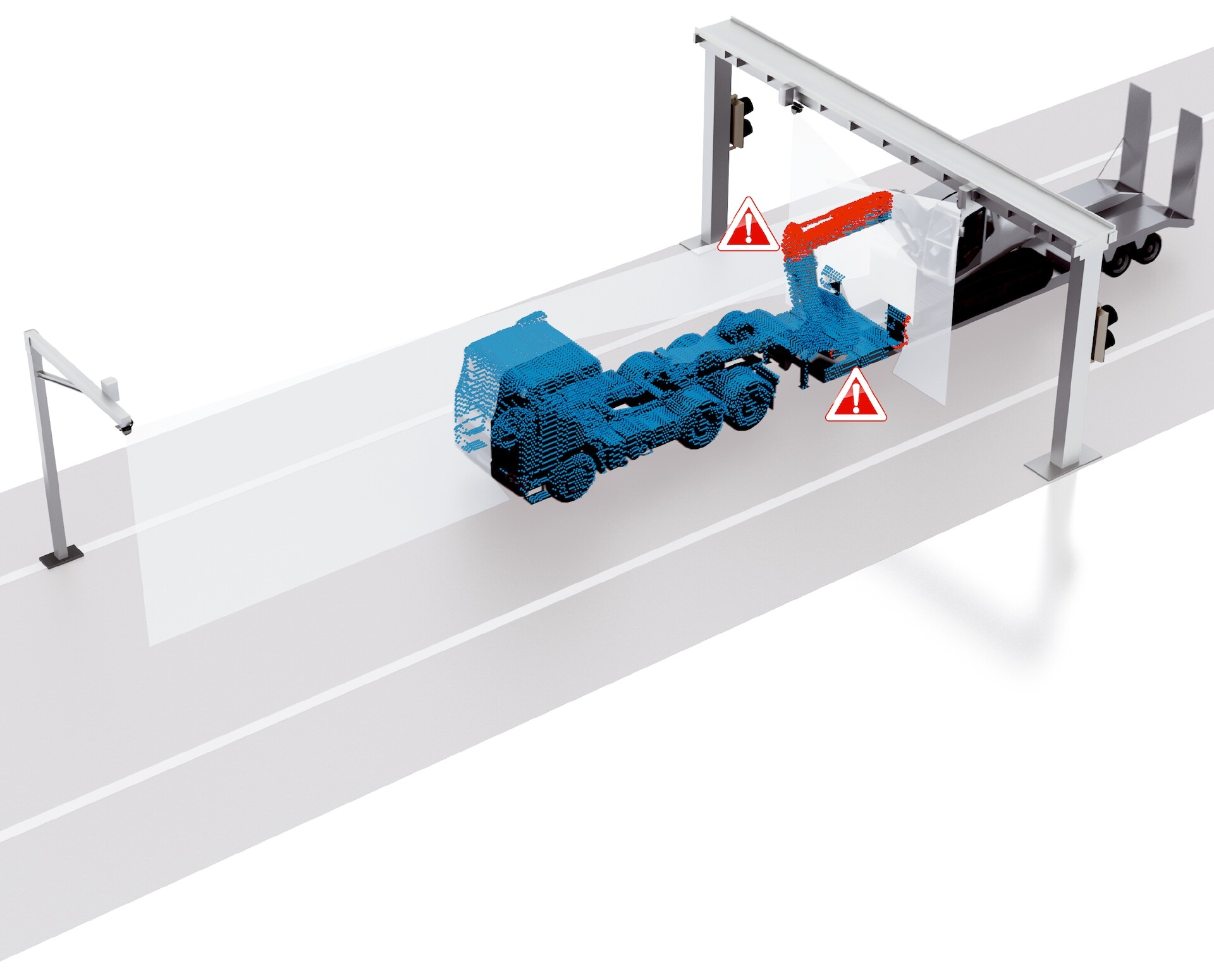

The Vehicle Dimension Measurement System VPS553 is designed for precise vehicle size scanning, featuring a 3-scanner solution that accurately measures length, width, height, and 3D points. Ideal for traffic management and vehicle monitoring, it supports stop-and-go functionality and is recommended for single vehicle passage, ensuring efficient traffic control and analysis.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Number of covered lanes: 1
- Measuring range must be optically clear
- Installation height: 5 m to 8 m
- Length measurement accuracy: ±50 mm at speeds <7 km/h
- Width measurement accuracy: ±30 mm at speeds <7 km/h
- Height measurement accuracy: ±30 mm at speeds <7 km/h
- Calibration accuracy: 20 mm x 15 mm x 15 mm (L x W x H)
- Driving speed range: 3 km/h to 100 km/h with varying accuracy
- Minimum object size: 1 m x 0.6 m x 0.6 m
- Maximum object size: 30 m x 5 m x 5 m
- Stop-and-go functionality supported
- Dimensions (H x L x W): 800mm x 1500mm x 1200mm
- Weight: 15 kg
Key Features
- 3-scanner solution for accurate vehicle dimension measurement
- Measures length, width, height, and 3D points on vehicles
- Supports stop-and-go functionality
- Calibration included for precise measurements
- Recommended for single vehicle passage through measuring station
Professional Installation Requirements
- Installation should be performed by qualified professionals familiar with optical measurement systems and electrical installation standards.
Applications
- Measurement of vehicle dimensions in traffic management
- Vehicle speed and size monitoring
- Traffic control and analysis systems
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Enables efficient traffic management reducing congestion and emissions
- Supports data collection for environmental impact assessments
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK for detailed warranty terms.
Available Now
The SICK VPS553 Vehicle Dimension Measurement System is available for immediate purchase, ideal for traffic management and vehicle monitoring applications.
