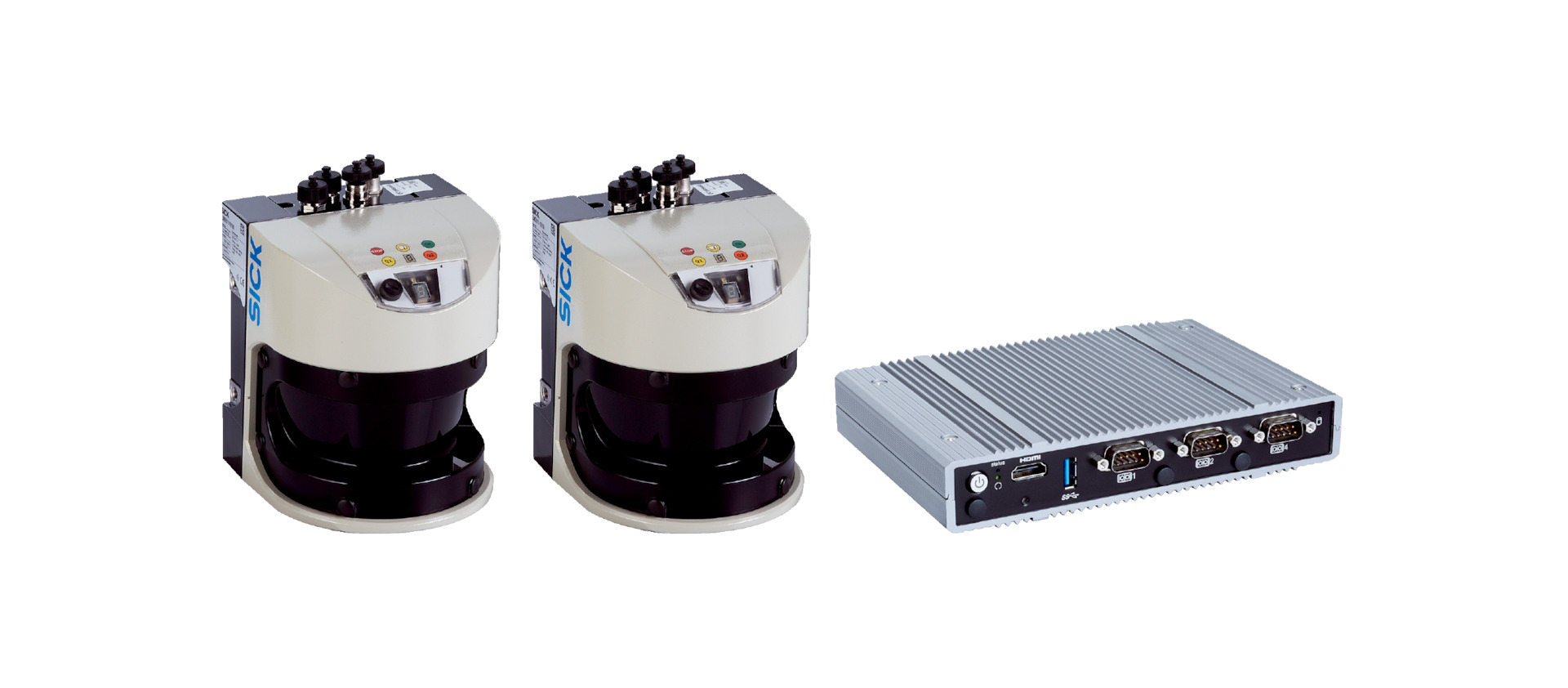

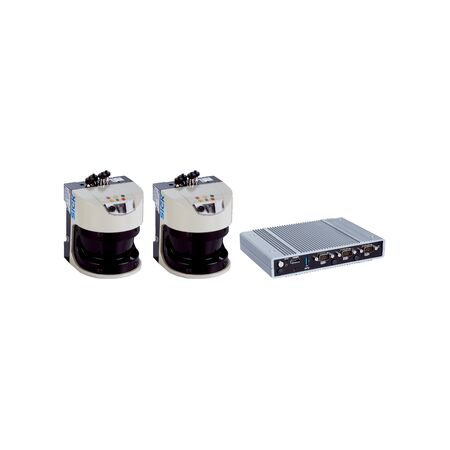

Vehicle Dimension Scanner FPS502 | 2D LiDAR Sensor | Up to 4 Lanes Coverage | Eye-Safe Laser Class 1 | by SICK
The FPS502 Vehicle Dimension Scanner is a cutting-edge 2D LiDAR sensor designed for accurate vehicle measurement and toll system applications. With the ability to cover up to 4 lanes and support for 30 vehicle classes, it ensures precise data collection with automatic calibration and high scanning frequencies. Ideal for traffic management and compliance verification, this system enhances road safety while optimizing loading processes.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Number of covered lanes: Up to 4 lanes, max 9 sensors per system
- Scanner design: 2-scanner solution
- Vehicle data: Dimensions, classes, driving direction, lane assignment, confidence level, 3D point cloud
- Sensor type: 2D LiDAR sensor
- Classification system: Europe, Asia, North America
- Vehicle classes: Up to 30
- Recommended sensor height: ≥ 1 m above max vehicle height
- Recommended vehicle distance: 0.6 m at <30 km/h, 2.2 m at <120 km/h
- Calibration: Automatic
- Stop-and-go functionality: Yes
- Scanning frequency: 75 Hz (width), 35 Hz (length)
- Max range: 40 m at 10% reflectivity
- Aperture angle: 190° per LMS511 SE
- Laser class: 1, eye-safe (IEC 60825-1:2014)
- Heating: Included
- Internal computer: Traffic Controller FPS
- Internal memory: 32 GB
- Installation position: Overhead or side
- Installation height: 5-8 m, at least 1 m above max vehicle height, angle > 15°
- Counting accuracy: 99.8%
- Classification accuracy: 98% (TLS8+1 classes)
- Length measurement accuracy: ±400 mm at <30 km/h, ±1000 mm at <120 km/h
- Width measurement accuracy: ±50 mm at <30 km/h, ±100 mm at <120 km/h
- Height measurement accuracy: ±30 mm at <120 km/h
- Minimum object size: 1 m x 0.6 m x 0.6 m
- Maximum object size: 32 m x 3.5 m x 5 m
- Minimum detectable object: 190 mm x 130 mm x 130 mm (<30 km/h), 525 mm x 130 mm x 130 mm (<120 km/h)
- Output data: Vehicle data
- Dimensions (H x L x W): 300mm x 400mm x 600mm
- Weight: 15 kg
Key Features
- Up to 4 lanes coverage with max. 9 sensors per system
- 2-scanner 2D LiDAR sensor solution
- Measures vehicle dimensions: length, width, height
- Supports up to 30 vehicle classes with classification systems for Europe, Asia, North America
- Automatic calibration and stop-and-go functionality
- High scanning frequency: 75 Hz (width), 35 Hz (length)
- Max range of 40 m with 10% reflectivity
- Eye-safe laser class 1 (IEC 60825-1:2014)
- Internal Traffic Controller FPS with 32 GB memory
- Heated sensor for reliable operation
- Installation overhead or at the side, 5-8 m height
Professional Installation Requirements
- Professional installation by qualified technicians is required to ensure correct sensor positioning and system calibration.
Applications
- Vehicle measurement
- Toll systems
- Verification of compliance with vehicle dimension regulations
- Optimization of the loading process
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Optimizes loading processes reducing fuel consumption and emissions
- Supports compliance with vehicle dimension regulations enhancing road safety
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK for detailed warranty terms.
Available Now
The SICK FPS502 Vehicle Measurement and Toll System is available for immediate purchase, ideal for traffic management and tolling applications.
