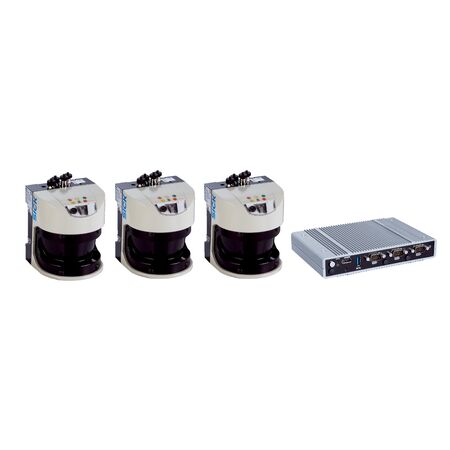

Vehicle Dimension Scanner FPS503 | 3-Scanner Solution | 2D LiDAR Technology | 99.8% Counting Accuracy | by SICK

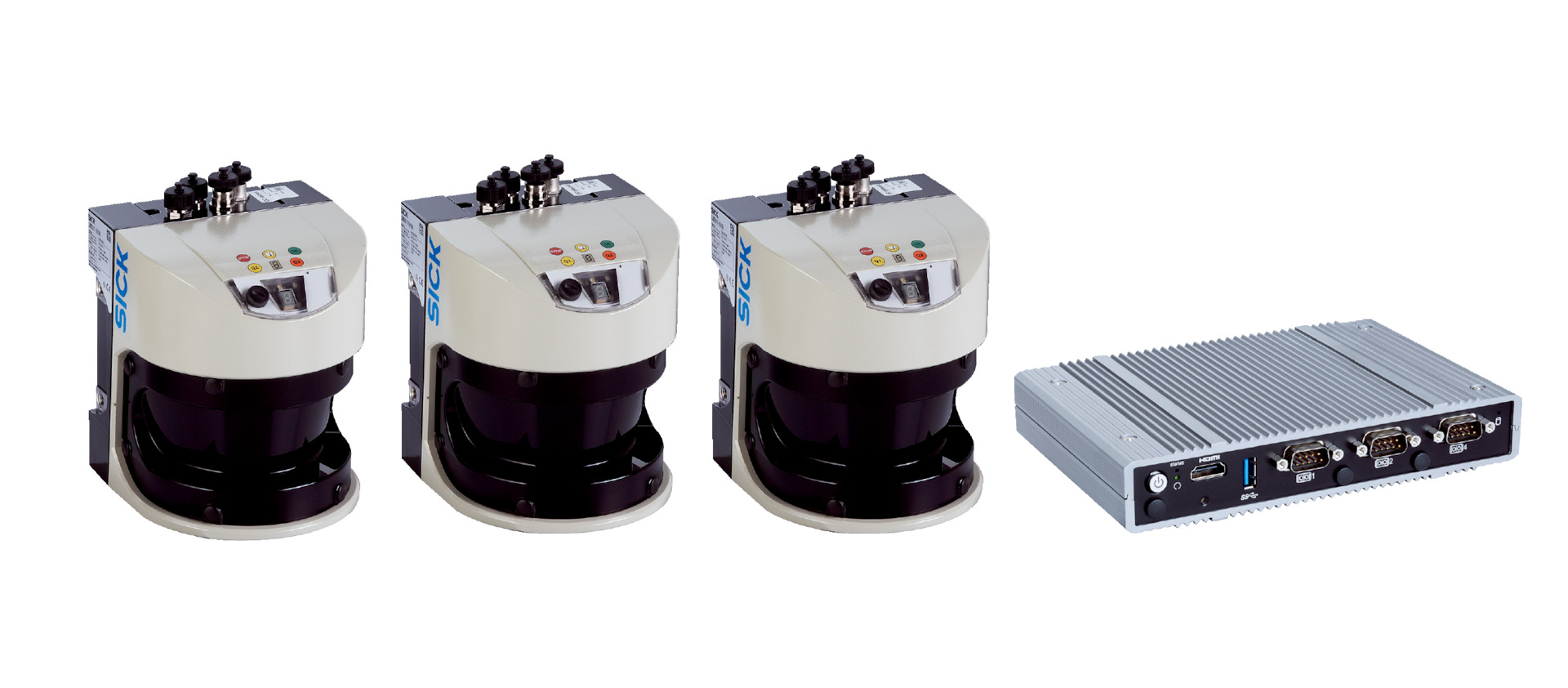

The FPS503 Vehicle Dimension Scanner is designed for precise vehicle measurement and classification, utilizing advanced 2D LiDAR technology. With a 3-scanner solution covering up to 4 lanes, it offers high counting accuracy of 99.8% and can classify up to 30 vehicle classes. Ideal for toll systems and compliance verification, this system ensures optimal loading processes while supporting road safety regulations.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Number of covered lanes: Up to 4 lanes, max 9 sensors per system
- Scanner design: 3-scanner solution
- Vehicle data: Dimensions (length, width, height), classes, driving direction, lane assignment, confidence level, 3D point cloud
- Sensor type: 2D LiDAR sensor
- Classification system: Europe, Asia, North America
- Vehicle classes: Up to 30 classes
- Recommended sensor height: ≥ 1 m above max vehicle height
- Recommended vehicle distance: 0.6 m at speeds < 30 km/h, 2.2 m at speeds < 120 km/h
- Calibration: Automatic
- Stop-and-go functionality: Yes
- Scanning frequency: 75 Hz (LMS Width), 35 Hz (LMS Length)
- Max range with 10% reflectivity: 40 m
- Aperture angle: 190° per LMS511 SE
- Laser class: 1, eye-safe (IEC 60825-1:2014)
- Heating: Included
- Internal computer: Traffic Controller FPS
- Internal memory: 32 GB
- Installation position: Overhead or side
- Installation height: 5 m to 8 m, at least 1 m higher than max vehicle height
- Angle between LMS and vehicle: > 15°
- Counting accuracy: 99.8%
- Classification accuracy: 98% (TLS8+1 classes)
- Length measurement accuracy: ±400 mm at <30 km/h, ±1000 mm at <120 km/h
- Width measurement accuracy: ±50 mm at <30 km/h, ±100 mm at <120 km/h
- Height measurement accuracy: ±30 mm at <120 km/h
- Minimum object size: 1 m x 0.6 m x 0.6 m
- Maximum object size: 32 m x 3.5 m x 5 m
- Minimum detectable object: 190 mm x 130 mm x 130 mm (<30 km/h), 525 mm x 130 mm x 130 mm (<120 km/h)
- Output data: Vehicle data
- Dimensions (H x L x W): 400mm x 300mm x 600mm
- Weight: 15 kg
Key Features
- 3-scanner solution covering up to 4 lanes with max 9 sensors per system
- 2D LiDAR sensor technology with 190° aperture angle
- Automatic calibration and stop-and-go functionality
- High counting accuracy of 99.8% and classification accuracy of 98%
- Measures vehicle dimensions including length, width, height, and classifies up to 30 vehicle classes
- Internal Traffic Controller FPS with 32 GB memory
- Eye-safe laser class 1 compliant with IEC 60825-1:2014
- Recommended installation height between 5 m and 8 m
Professional Installation Requirements
- Installation should be performed by qualified professionals experienced with LiDAR sensor systems and electrical installations, ensuring correct height and angle for optimal performance.
Applications
- Vehicle measurement for toll systems
- Verification of compliance with vehicle dimension regulations
- Optimization of the loading process
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Optimizes loading processes reducing fuel consumption and emissions
- Supports compliance with vehicle dimension regulations enhancing road safety
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK for detailed warranty terms.
