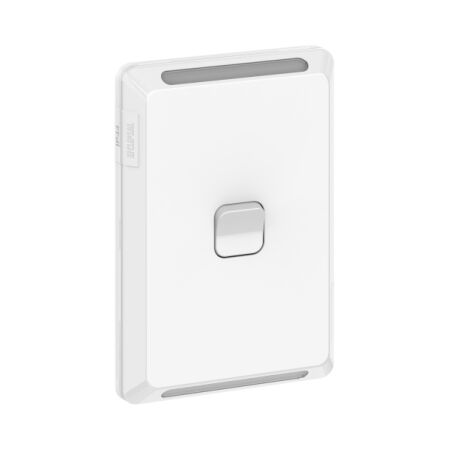

Vertical 1G Switch 20A IP44 Rated Extra Vivid White Clipsal
Clipsal Vertical Switch Rated Extra Vivid White features 20A 16AX, 230 240V and rocker. Optional two way switching. Ideal for kitchens.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Rated current: 20A/16AX
- Rated operational voltage: 230/240V
- Control type: rocker
- Device mounting: wall
- Switch function: 1-pole 1/2-way
- Connections: screw terminal
- Clamping connection capacity: 1 x 1.5...4 x 1.5 mm² for rigid or stranded cable(s), 3 x 2.5 mm² for stranded cable(s), 1 x 4 mm² for stranded cable(s)
- Ambient air temperature for operation: 0...45 °C
- Relative humidity: 10...95 %
- Dimensions (H x L x W): 116mm x 40mm x 78mm
- Weight: 0.105 kg
Key Features
- Rated IP44 against dust and water ingress.
- Optional two way switching.
- Perfect for use in areas with limited water splashing.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended.
Applications
- Kitchens
- Wet areas
Standards & Compliance
- Complies with RCM standards.
Environmental Benefits
- Packaging made with recycled cardboard.
Warranty Information
Standard warranty applies.
Available Now
The Clipsal Pro Series Vertical 1 Gang Switch is available now for immediate purchase. Ideal for kitchens and wet areas.
FAQ
Q: Where is this IP44 switch recommended for installation?
A: It is designed for kitchens, wet areas and other locations where protection against limited water splashing is required.
Q: Does this switch meet recognised compliance requirements?
A: Yes. The product complies with RCM standards as listed in the product specifications.
Pair this switch with a vertical 2 gang switch when additional switching points are required in the same installation.
Install a vertical 3 gang switch for projects requiring control of multiple lighting circuits from one location.
Complete larger fit-outs with a vertical 4 gang switch to maintain a consistent switch style throughout the installation.
