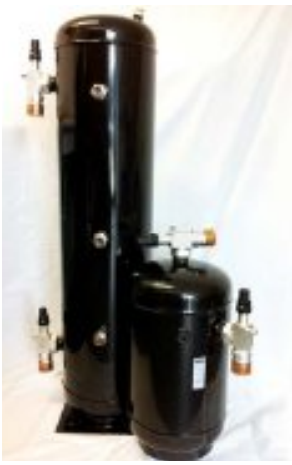

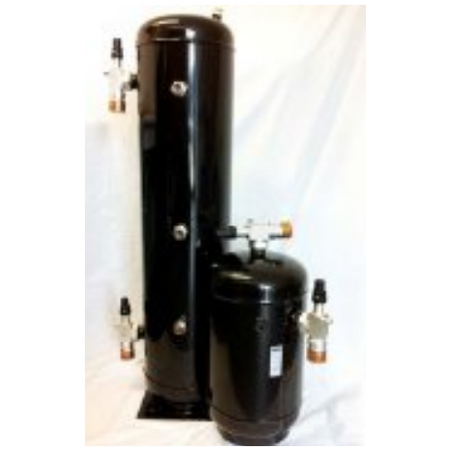

Vertical Liquid Receiver 100L | ISO/AS 5149.2 Compliant | Anti-Corrosion Finish | by Aspen Pumps
The Vertical Liquid Receiver 100L is designed for efficient refrigerant storage in commercial and industrial HVAC systems. With a safe working pressure of 3,300 kPa and an anti-corrosion powder coat finish, it ensures durability and reliability. Ideal for refrigeration systems, this receiver minimizes refrigerant leakage and improves plant efficiency, making it a smart choice for professionals.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Vertical Liquid Receiver 100L | ISO/AS 5149.2 Compliant | Anti-Corrosion Finish | by Aspen Pumps
Brand: Aspen Pumps
SKU: 309-100-VH
Alternatively Known As: Vertical Liquid Receiver 100L, Refrigeration Liquid Receiver, HVAC Liquid Receiver Vessel
Technical Specifications
- Connection Size: 2 1/4 R/L X 2 1/4 R/L
- Height: 1440 mm
- Diameter: 232 mm
- Volume: 100 Liters
- Safe Working Pressure (SWP): 3,300 kPa
- Manufactured to ISO/AS 5149.2 standards
- Anti-corrosion powder coat finish
- Solid copper connections
- Includes liquid level switch port on large vertical receivers
- Harmonic wave cut design to reduce noise
- Oil drain channels to prevent oil logging
- Dimensions (H x L x W): 1440mm x 232mm x 232mm
- Weight: 25 kg
Key Features
- Connection: 2 1/4 R/L X 2 1/4 R/L
- Volume: 100L capacity
- Manufactured in accordance with ISO/AS 5149.2
- Safe working pressure (SWP) of 3,300 kPa
- Minimal pressure drop to improve plant efficiency
- SKY safety socket fitted with PRV socket to prevent refrigerant leakage
- Anti-corrosion powder coat finish with solid copper connections
- Large vertical receivers include liquid level switch port
- Compatible with 1 1/4 rotalock sightglass with liquid level switch adaptor 412-202020
- Harmonic wave cut principles reduce noise and smooth discharge pulse
- Oil drain channels prevent oil logging
Professional Installation Requirements
- Installation by qualified HVAC or refrigeration professionals is required to ensure compliance with safety standards and optimal system performance.
Applications
- Refrigeration systems requiring liquid refrigerant storage
- Commercial and industrial HVAC systems
- Plants requiring efficient refrigerant management and pressure vessel solutions
Standards & Compliance
- Complies with AS/NZS 5149.2 for refrigeration systems and pressure vessels
Environmental Benefits
- Minimizes refrigerant leakage with SKY safety socket, reducing environmental impact
- Improves plant efficiency by reducing pressure drop, lowering energy consumption
Warranty Information
Warranty details available upon request; typically includes coverage against manufacturing defects.
Available Now
The Aspen Pumps Vertical Liquid Receiver 309-100-VH is available for immediate purchase, ideal for commercial and industrial refrigeration and HVAC applications.
