Vertical Wall Mount Cabinet 2RU Horizontal | 8RU Vertical | Cold Rolled Steel | 19" Rack by Certech
Vertical wall mount cabinet with 2RU horizontal and 8RU vertical capacity—ideal for data centers and network installations. Built for space efficiency, with cold rolled steel construction and EIA-310 compliance.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

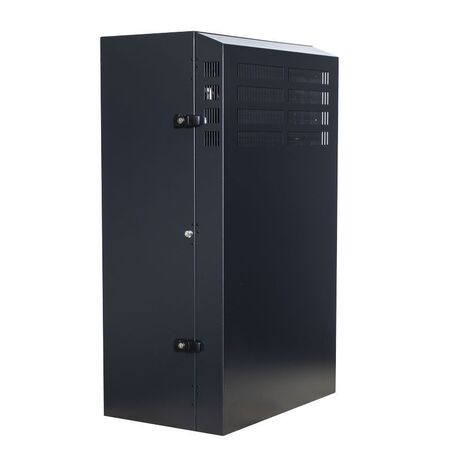

Product Name/Title: CERTECH Vertical Wall Mount Cabinet 2RU Horizontal, 8RU Vertical
Brand: Certech
SKU: NCVWM2H8V
Alternatively Known As: Wall Mount Rack, Vertical Rack Cabinet, 19" Rack Mount, Server Rack, Network Rack
Technical Specifications
- Material: Cold rolled steel
- Mounting Compatibility: EIA-310 compliant 19" equipment
- Loading Capacity: Up to 100kgs
- Height: 900mm
- Protrusion: 230mm, 320mm, or 410mm off the wall (pending model)
- Dimensions (H x L x W): 900mm x 410mm x 600mm
- Weight: 10 kg
Key Features
- Designed for wall mount installations with limited space.
- Constructed from high quality cold rolled steel.
- Compatible with all EIA-310 compliant 19" equipment.

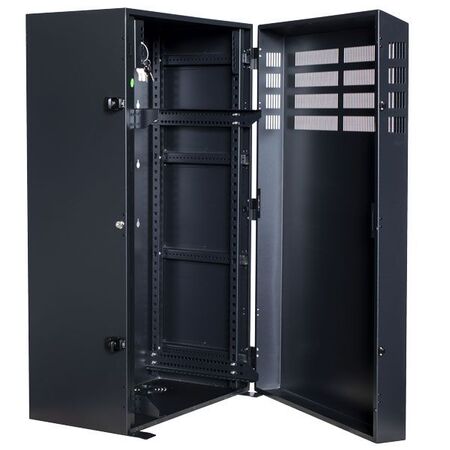

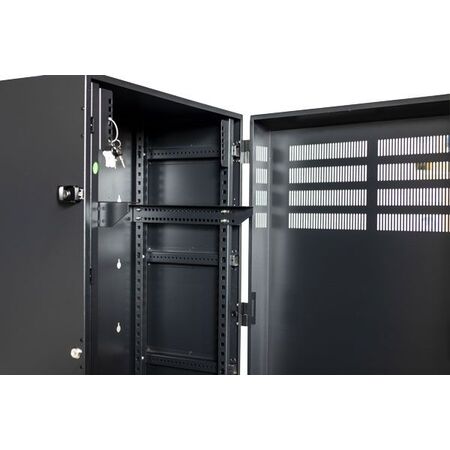

- Front hinged door for easy access.
- Provisions for 2 x fans included.
- Multiple cable entry points for flexible installation.
- Vertical and horizontal mounting rails adjustable for various equipment sizes.
- Loading capacity of up to 100kgs.
Professional Installation Requirements
- Professional installation is recommended for optimal safety and performance.
Applications
- Ideal for data centers, server rooms, and network installations in limited spaces.
Standards & Compliance
- Complies with AS/NZS 3000 for electrical installations.
Environmental Benefits
- Efficient use of space reduces the need for larger equipment rooms, minimizing energy consumption.
Warranty Information
2 years warranty against manufacturing defects, subject to use within static loading specifications.
Available Now
The CERTECH Vertical Wall Mount Cabinet 2RU Horizontal, 8RU Vertical is available now for immediate purchase. Ideal for data centers and network installations.
