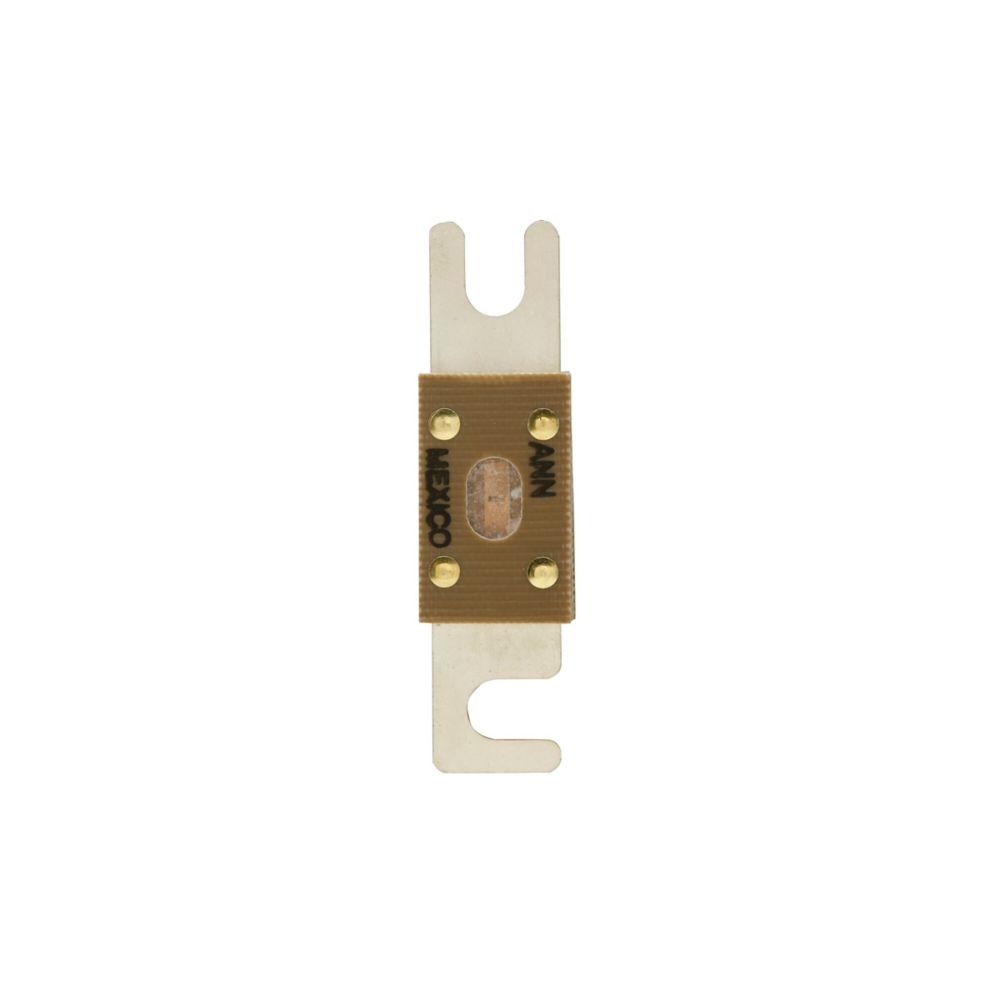

Very Fast Acting Circuit Limiter 300 Amp | 2.5 kAIC Interrupt Rating | Blade End Connection | @Each by Eaton
The Very Fast Acting Circuit Limiter 300 Amp is designed for rapid overcurrent protection in industrial and commercial electrical systems. With a 2.5 kAIC interrupt rating at 125 Vac and a blade end connection, this limiter ensures reliable performance in control panels and motor circuits. Ideal for both AC and DC applications, it helps prevent electrical fires and equipment damage, supporting system reliability and longevity.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Very Fast Acting Circuit Limiter 300 Amp | 2.5 kAIC Interrupt Rating | Blade End Connection | @Each by Eaton
Brand: Eaton
SKU: ANN-300
Alternatively Known As: ANN-300 Circuit Limiter, Eaton ANN Fuse, Bussmann ANN Fuse 300A, Fast Acting Fuse 300 Amp
Technical Specifications
- Amperage Rating: 300 A
- Interrupt Rating: 2.5 kAIC at 125 Vac, 2.7 kAIC at 80 Vdc
- Voltage Rating: 125 Vac, 80 Vdc
- Connection Type: Blade end x blade end
- Mounting Method: Stud
- Fuse Indicator: Non-indicating
- Product Weight: 0.27 lb (0.12 kg)
- Product Dimensions: Length 3.38 in (86 mm), Height 1.62 in (41 mm), Width 0.95 in (24 mm)
- Dimensions (H x L x W): 41mm x 86mm x 24mm
- Weight: 0.12 kg
Key Features
- Very fast acting circuit limiter for rapid overcurrent protection
- 300 Amp amperage rating
- Interrupt rating of 2.5 kAIC at 125 Vac and 2.7 kAIC at 80 Vdc
- Blade end to blade end connection with stud mounting
- Non-indicating fuse type with a small footprint for compact installations
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure compliance with electrical safety standards and proper circuit protection.
Applications
- Protection of electrical circuits in industrial and commercial electrical systems
- Use in control panels and motor circuits requiring fast-acting overcurrent protection
- Suitable for DC and AC circuits up to 125 Vac and 80 Vdc
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Helps prevent electrical fires and equipment damage by quickly interrupting fault currents
- Supports system reliability and longevity by protecting sensitive electrical components
Warranty Information
No warranty applicable for this product.
Available Now
The Eaton Bussmann ANN Very Fast Acting Limiter - 300 Amp is available for immediate purchase, ideal for industrial and commercial electrical protection applications.
