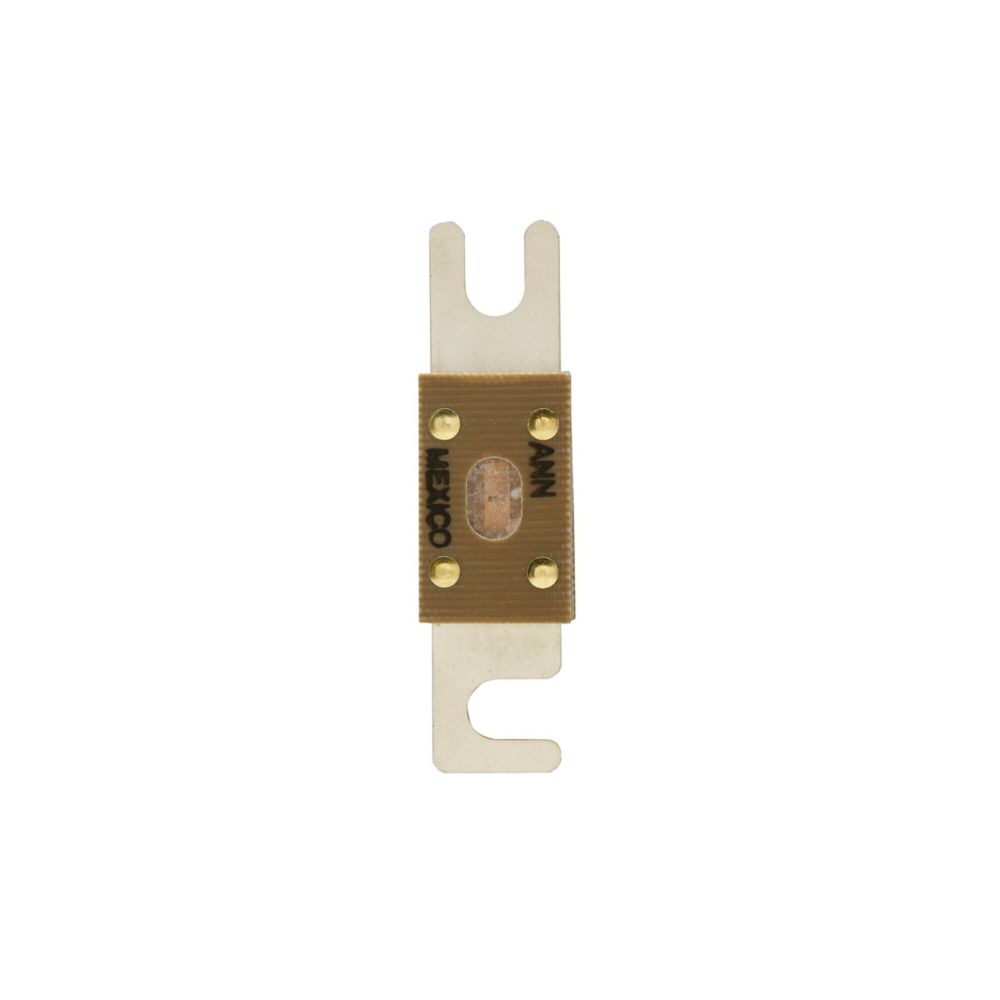

Very Fast Acting Circuit Limiter 400 Amp | 2.5 kAIC Interrupt Rating | Blade End Connection | by Eaton
The Very Fast Acting Circuit Limiter 400 Amp is designed for reliable electrical protection in industrial and commercial applications. With an impressive interrupt rating of 2.5 kAIC at 125 Vac and a compact blade end connection, this limiter ensures safety for sensitive electronic equipment. Ideal for control panels and switchgear assemblies, it features a non-indicating fuse type for easy installation and compliance with AS/NZS 3123 standards.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Very Fast Acting Circuit Limiter 400 Amp | 2.5 kAIC Interrupt Rating | Blade End Connection | by Eaton
Brand: Eaton
SKU: ANN-400
Alternatively Known As: ANN-400 Circuit Limiter, Eaton ANN Fuse, Bussmann ANN Fast Acting Fuse
Technical Specifications
- Amperage Rating: 400 A
- Interrupt Rating: 2.5 kAIC at 125 Vac, 2.7 kAIC at 80 Vdc
- Voltage Rating: 125 Vac, 80 Vdc
- Connection Type: Blade end x blade end
- Mounting Method: Stud
- Fuse Indicator: Non-indicating
- Special Features: Small footprint
- Dimensions (H x L x W): 41mm x 86mm x 24mm
- Weight: 0.12 kg
Key Features
- 400 Ampere very fast acting circuit limiter
- Interrupt rating of 2.5 kAIC at 125 Vac and 2.7 kAIC at 80 Vdc
- Blade end to blade end connection with stud mounting
- Non-indicating fuse type with a small footprint for compact installations
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure compliance with electrical safety standards and proper fuse selection.
Applications
- Electrical protection in industrial and commercial power distribution systems
- Protection of sensitive electronic equipment from overcurrent
- Use in control panels and switchgear assemblies
Standards & Compliance
- Complies with AS/NZS 3123 – Industrial Plugs and Socket-Outlets
Environmental Benefits
- Helps prevent electrical faults and equipment damage, reducing waste and downtime
- Compact design minimizes material usage
Warranty Information
No warranty applicable as per manufacturer specifications.
Available Now
The Eaton Bussmann ANN Very Fast Acting Limiter 400 Amp is available for immediate purchase, ideal for industrial and commercial electrical protection applications.
