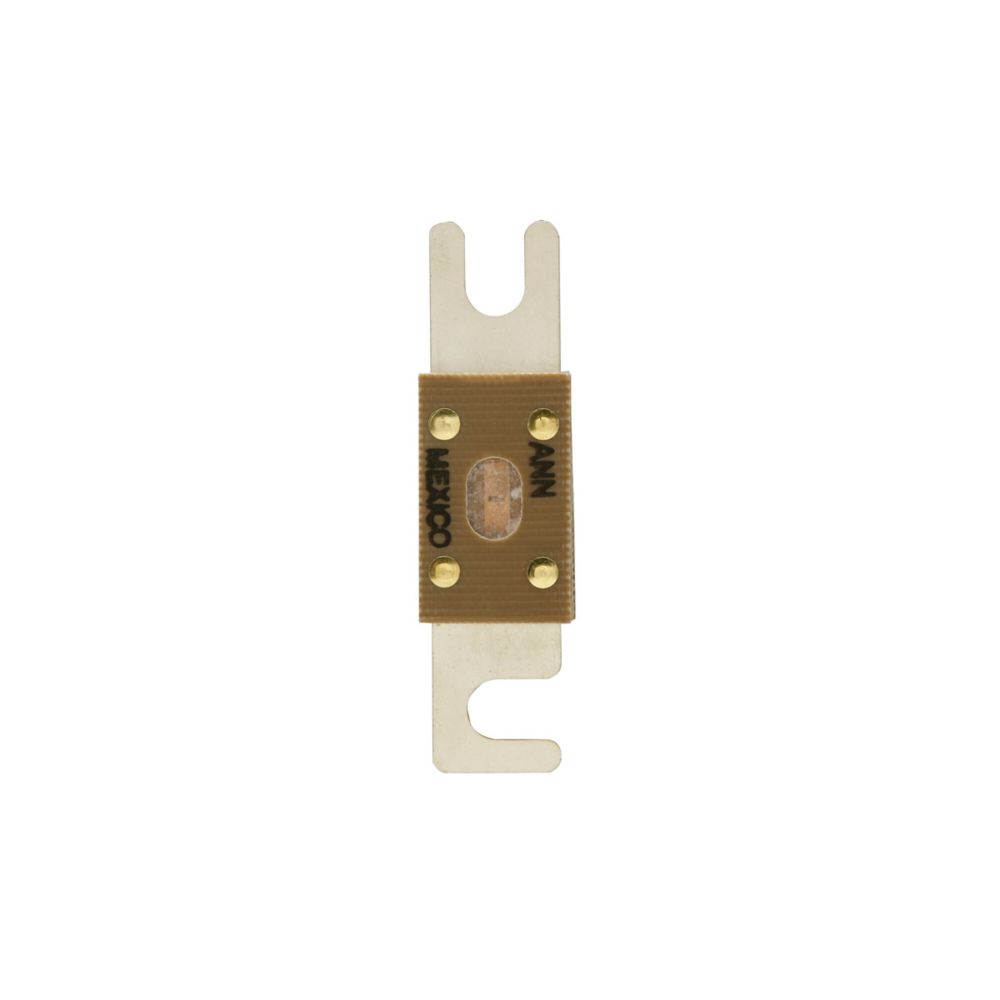

Very Fast Acting Circuit Limiter 500 Amp | 2.5 kAIC Interrupt Rating | Blade End Connection | by Eaton
The Very Fast Acting Circuit Limiter 500 Amp is designed for rapid overcurrent protection in industrial and commercial applications. With an interrupt rating of 2.5 kAIC at 125 Vac and a compact blade end connection, this limiter ensures the safety of sensitive electronic equipment and power distribution systems. Ideal for control panels and switchgear assemblies, it offers reliable performance and compliance with electrical safety standards.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Very Fast Acting Circuit Limiter 500 Amp | 2.5 kAIC Interrupt Rating | Blade End Connection | by Eaton
Brand: Eaton
SKU: ANN-500
Alternatively Known As: ANN-500 Fuse, Bussmann ANN Circuit Limiter, Fast Acting Fuse 500A
Technical Specifications
- Amperage Rating: 500 A
- Interrupt Rating: 2.5 kAIC at 125 Vac, 2.7 kAIC at 80 Vdc
- Voltage Rating: 125 Vac, 80 Vdc
- Connection Type: Blade end x blade end
- Mounting Method: Stud
- Fuse Indicator: Non-indicating
- Product Weight: 0.27 lb (0.12 kg)
- Dimensions (H x L x W): 41mm x 86mm x 24mm
- Weight: 0.12 kg
Key Features
- Very fast acting circuit limiter for rapid overcurrent protection
- 500 Amp amperage rating
- Interrupt rating of 2.5 kAIC at 125 Vac and 2.7 kAIC at 80 Vdc
- Blade end to blade end connection
- Stud mounting method
- Non-indicating fuse type
- Small footprint design for space-saving installation
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure compliance with electrical safety standards and proper fuse selection.
Applications
- Electrical protection in industrial and commercial power distribution systems
- Protection of sensitive electronic equipment from overcurrent
- Use in control panels and switchgear assemblies
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Helps prevent electrical fires and equipment damage by quickly interrupting fault currents
- Compact design reduces material usage and waste
Warranty Information
No warranty applicable.
Available Now
The Eaton Bussmann ANN Very Fast Acting Circuit Limiter 500 Amp is available for immediate purchase, ideal for industrial and commercial electrical protection applications.
