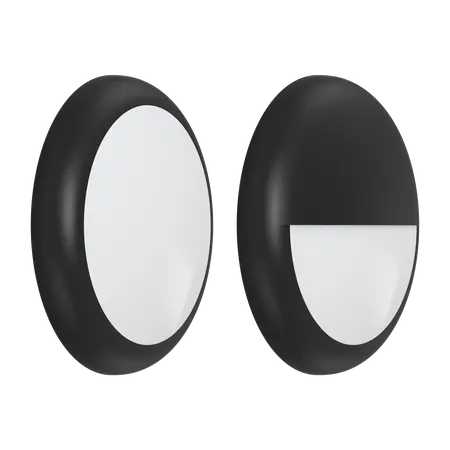

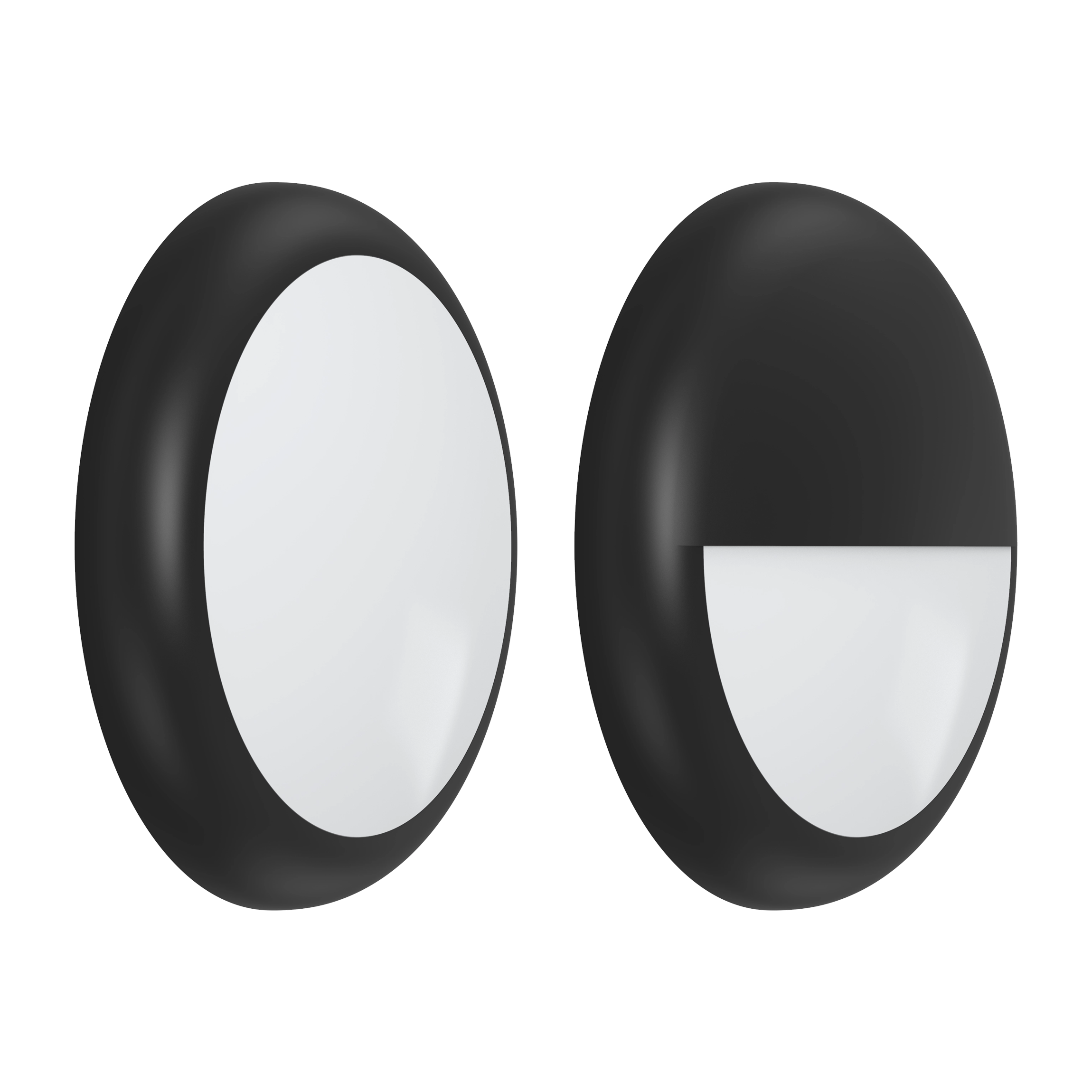

Veyra LED Emergency Bunker Dimming Sensor IP65 IK10 Black Domus
Domus Veyra round LED emergency bunker light with dimming sensor, IP65, IK10, 240V, black.
Sign in
Please login to continue to your account.
Alternatively Known As: Veyra Emergency Bunker Light, Veyra Round EM SDIM, Emergency LED Wall and Ceiling Light, Emergency Sensor Bunker Light
- Model: VEYRA-RND-EM-SDIM
- Light Source: Integrated SMD LED
- Wattage: 9/12/16W switchable
- Emergency Input Power: 3.5W
- Emergency Discharge Power: 2W constant wattage
- Input Voltage: 240V AC
- Colour Temperature: 3000K, 4000K or 5700K switchable
- Lumen Output: 1080-2080 lm depending on wattage and colour temperature
- Colour Rendering: CRI ≥80
- Beam Angle: 120°
- Dimming: 30%-100% adjustable dimming sensor
- Sensor: 5.8GHz microwave sensor with 140° detection angle
- Detection Area: 4-6m, adjustable by DIP switch
- Emergency Battery: 6.4V 1500mAh LiFePO4 rechargeable battery
- Emergency Duration: More than 3 hours
- Battery Charge Period: Up to 24 hours
- Emergency Switching Time: ≤1 second
- LED Lifespan: 50,000 hours average
- Construction: Tough polycarbonate
- Electrical Class: Class II, no earth connection required
- Impact Rating: IK10
- Operating Temperature: -20°C to 60°C
- Finish Colour: Black
- Fascia Covers: Plain and eyelid covers included
- Dimensions (H x L x W): 78mm x 330mm x 330mm
- Weight: 1.1 kg
- Integrated emergency lighting with more than 3 hours battery duration
- Microwave dimming sensor with adjustable detection, hold time and standby settings
- Selectable 9W, 12W and 16W output
- Selectable 3000K, 4000K and 5700K colour temperature
- IP65-rated construction for outdoor and damp-location applications
- IK10 impact resistance for high-traffic environments
- Includes plain and eyelid fascia covers
- Suitable for wall or ceiling mounting
- Automatic or manual emergency testing options
- Long-life SMD LED with 50,000-hour average lifespan
- Installation, electrical connection, emergency commissioning and testing must be completed by a licensed electrician in accordance with the manufacturer's instructions, AS/NZS 3000 and applicable emergency lighting requirements. Allow up to 24 hours for the battery to fully charge before duration testing.
- Emergency lighting for entryways and pathways
- Stairwells and common areas
- Residential, commercial and strata buildings
- Outdoor wall and ceiling lighting
- Coastal and high-traffic environments
- Shared access areas requiring emergency backup illumination
- AS/NZS 2293.1:2018 for emergency lighting system design, installation and operation; confirm project-specific certification requirements
- AS/NZS 60598.2.22 for emergency luminaires; applicable product safety standard
- AS/NZS 3000 for electrical installation and wiring requirements
- Selectable wattage and colour temperature can help reduce unnecessary energy consumption and over-lighting
- Integrated LED technology with an average 50,000-hour lifespan can reduce replacement frequency and waste
- Durable polycarbonate construction and IK10 impact resistance support extended service life
- Rechargeable LiFePO4 emergency battery avoids routine disposable battery replacement
Domus Lighting warranty: 5-year replacement warranty for residential emergency lighting and 4-year replacement warranty for commercial emergency lighting. Battery replacement is covered for 4 years in both residential and commercial applications. Warranty eligibility requires installation by a licensed electrician and compliance with the manufacturer's installation guidelines.
Available through Domus Lighting and authorised Australian lighting distributors.
