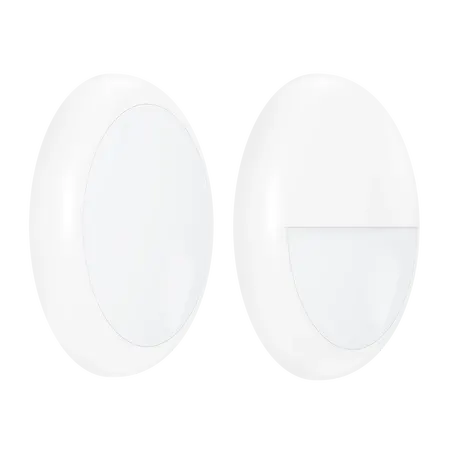

Veyra LED Emergency Bunker Dimming Sensor IP65 IK10 White Domus
Domus Veyra round LED emergency bunker light with dimming sensor, IP65, IK10, 240V, white.
Sign in
Please login to continue to your account.
Alternatively Known As: Veyra Round EM SDIM, VEYRA-RND-EM-SDIM, Emergency Bunker Light with Dim Sensor
- Item Number: VEYRA-RND-EM-SDIM
- Variant: White, variant ID 11326
- Input Voltage: 240V AC
- Power: 9W / 12W / 16W switchable
- Light Output: 1080-2080 lm, depending on wattage and CCT
- Colour Temperature: 3000K / 4000K / 5700K switchable
- LED Type: SMD
- Colour Rendering Index: ≥80
- Beam Angle: 120°
- Dimming: Yes, with suitable dimmer
- Emergency Battery Duration: More than 3 hours
- Emergency Battery Charge Period: ≤24 hours
- Emergency Discharge Power: 2W constant wattage
- Sensor Type: 5.8GHz microwave dimming sensor
- Sensor Detection Angle: 140°
- Sensor Detection Area: 4-6m, adjustable by DIP switch
- Sensor Hold Time: 55 seconds / 1 minute / 3 minutes / 10 minutes
- Standby Dimming Level: 0% / 20%, adjustable by DIP switch
- Dimming Range: 30%-100%
- Operating Temperature: -20°C to 60°C
- Ingress Protection: IP65
- Impact Protection: IK10
- Insulation Class: Class II
- Material: Polycarbonate
- Average LED Lifespan: 50,000 hours
- Included Accessories: Plain and eyelid fascia covers
- Dimensions (H x L x W): 78mm x 330mm x 330mm
- Weight: 1.5 kg
- Emergency LED bunker light with integrated battery backup exceeding 3 hours
- Microwave dimming sensor with adjustable detection, hold time, daylight threshold and standby settings
- Selectable 9W, 12W or 16W output
- Selectable 3000K warm white, 4000K neutral white or 5700K white colour temperature
- IP65-rated housing for outdoor wall and ceiling applications
- IK10 impact resistance for high-traffic environments
- Class II construction does not require an earth connection

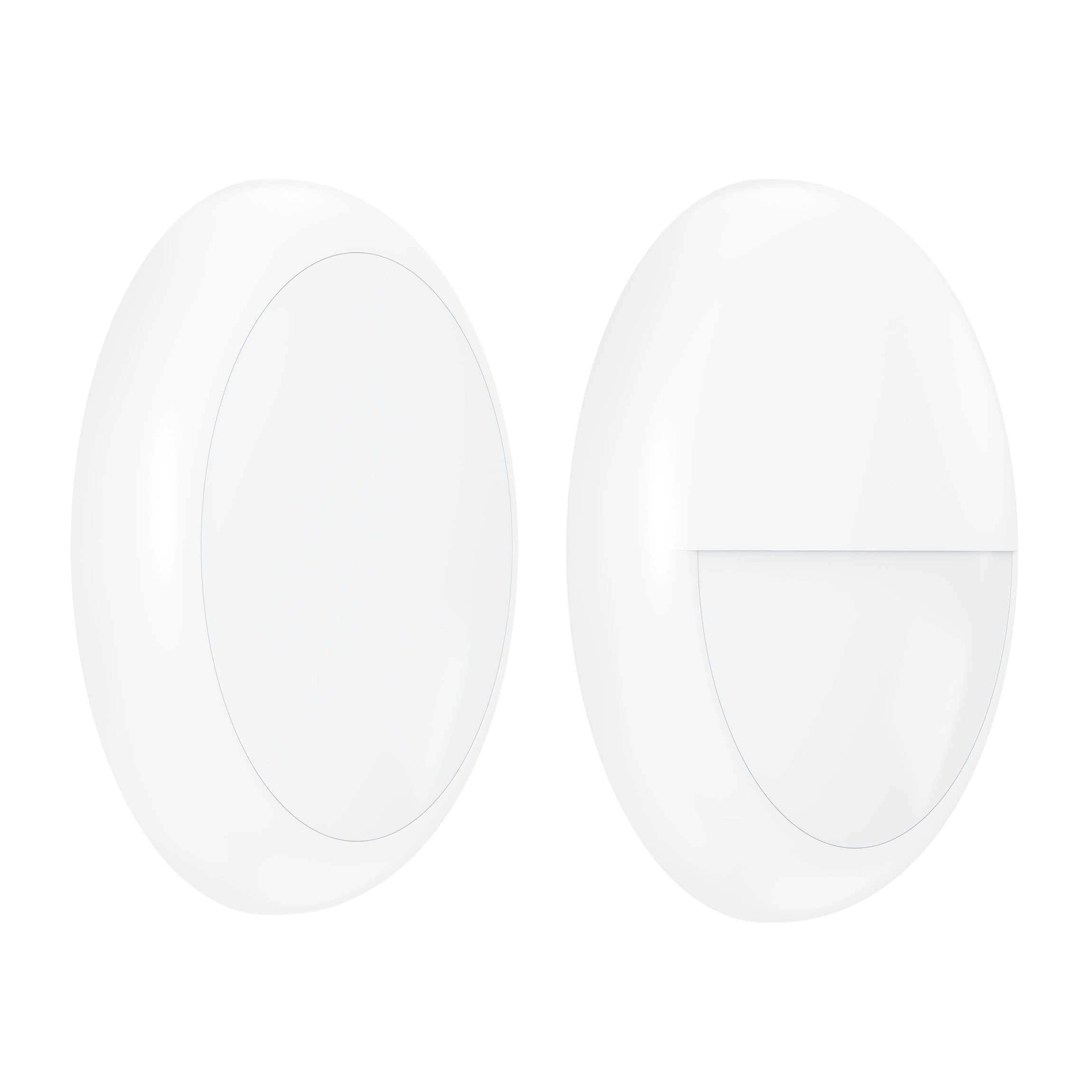

- Plain and eyelid fascia covers included
- Suitable for entryways, pathways, stairwells, strata properties and shared outdoor areas
- Installation, mains connection, emergency commissioning and testing must be completed by a licensed electrician in accordance with the manufacturer's instructions, AS/NZS 3000 and applicable emergency-lighting requirements.
- Outdoor residential lighting
- Commercial and strata properties
- Entryways and pathways
- Stairwells and shared access areas
- Emergency lighting installations requiring an IP65-rated bunker fitting
- Coastal and high-traffic outdoor environments
- AS/NZS 2293.1:2018 for emergency-lighting system design, installation and operation
- AS/NZS 2293.3:2018 for emergency luminaires and exit signs
- AS 60598.2.22:2019 for luminaires for emergency lighting
- AS/NZS 3000 for electrical installation and wiring requirements
- Integrated LED technology provides long operating life of approximately 50,000 hours, reducing replacement frequency and waste
- Selectable wattage allows light output and energy use to be matched to the application
- Selectable colour temperature and dimming functionality can help avoid unnecessary over-lighting
- Polycarbonate construction is durable and supports extended product service life
- Emergency battery backup provides continued illumination during mains power failure
Domus Lighting warranty applies subject to licensed-electrician installation and other warranty conditions. Emergency lighting is covered for 5 years replacement in residential applications and 4 years replacement in commercial applications, with a 4-year battery replacement warranty for both. ([domuslighting.com.au](https://www.domuslighting.com.au/wp-content/uploads/2026/01/Warranty-Statement-Revised-09-01-2026.pdf))
Available through Domus Lighting and authorised Australian lighting distributors.
