Trade Discount 17%

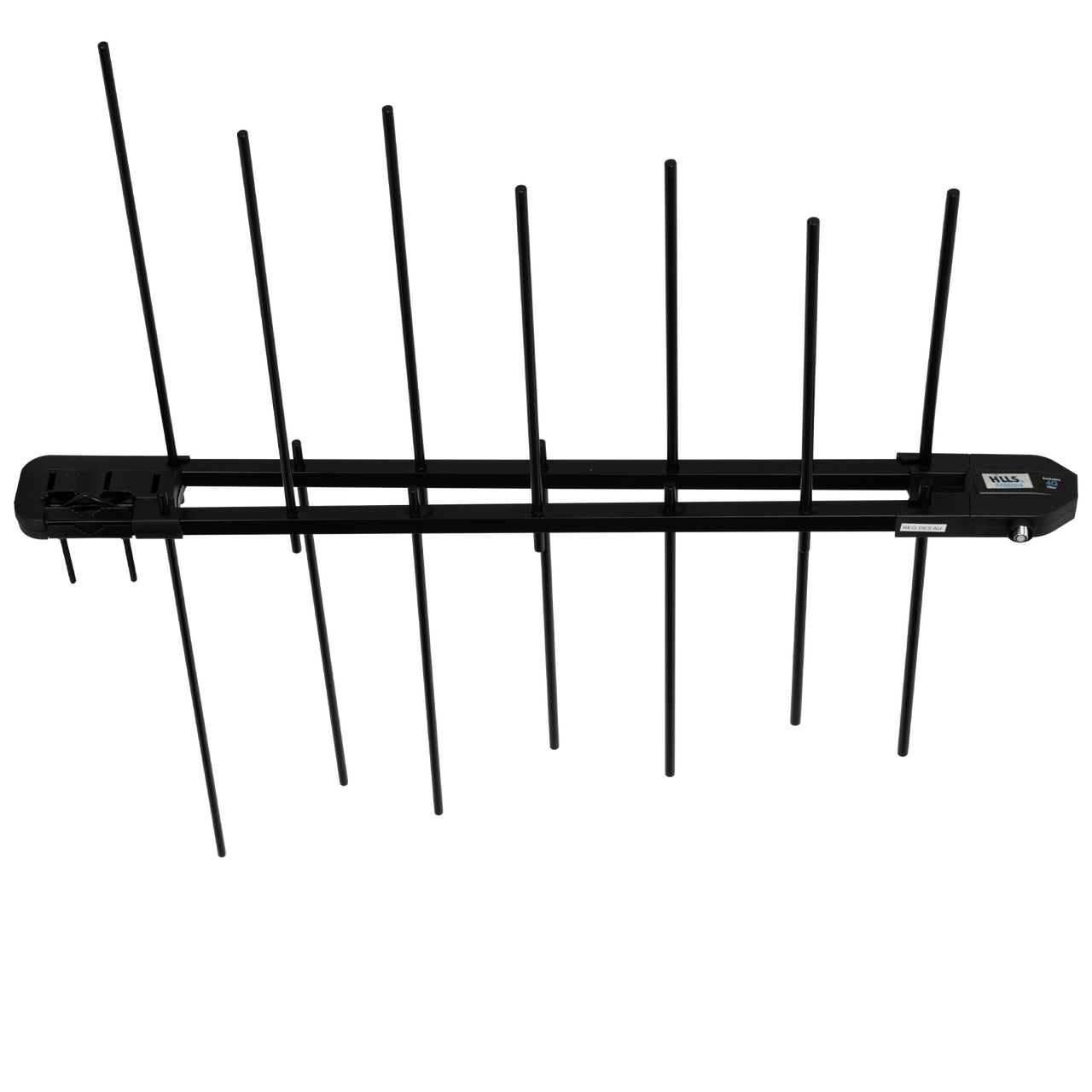

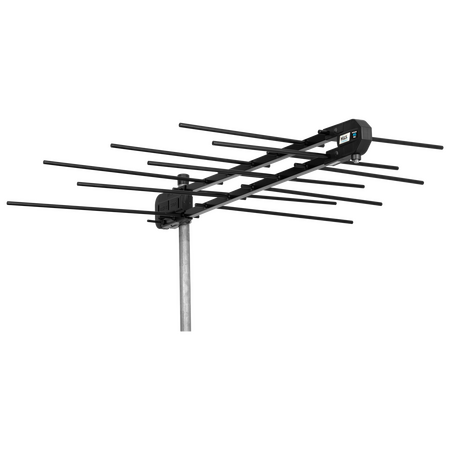

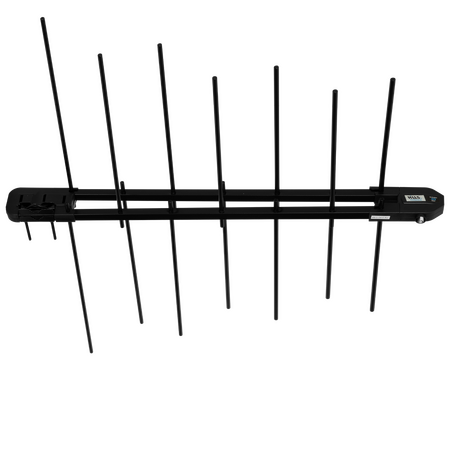

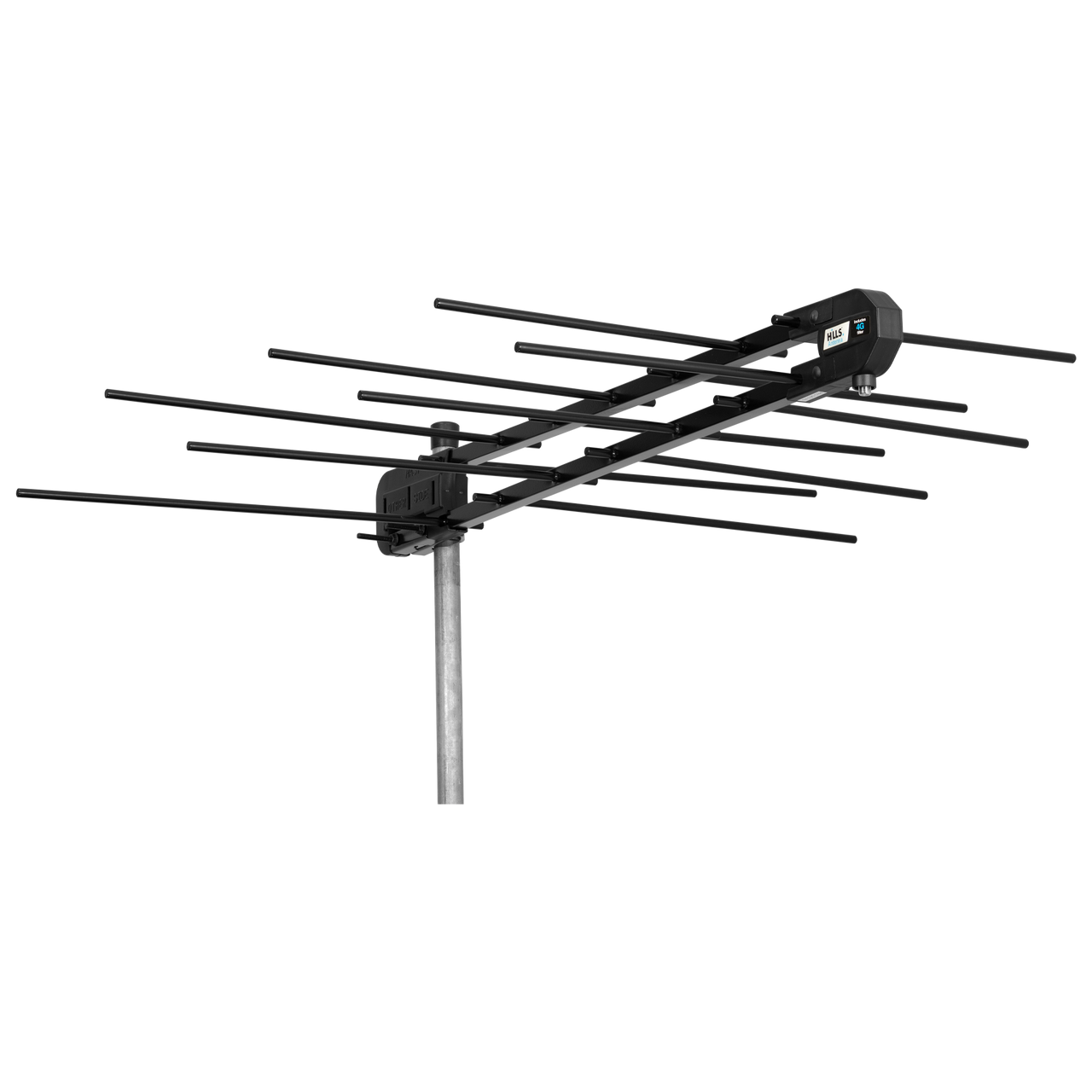

VHF 4G Antenna | Tru-Band 7-Element Design | 4G+ Filter Included | Black Finish | by Bitek Pty Ltd
The VHF 4G Antenna features a Tru-Band 7-element design and a 4G+ filter, ensuring optimal digital TV reception for both residential and commercial applications. Built for durability with aluminium construction, this antenna is perfect for outdoor roof mounting, providing reliable signal strength and performance. Ideal for Australian homes and businesses seeking high-definition TV reception.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: VHF 4G Antenna | Tru-Band 7-Element Design | 4G+ Filter Included | Black Finish | by Bitek Pty Ltd
Brand: Bitek Pty Ltd
SKU: 01TBV7-4G
Alternatively Known As: Tru-Band VHF Antenna, Black Arrow 4G Antenna, 7-Element VHF Antenna, Hills 4G Filtered TV Antenna
Technical Specifications
- Antenna Category: VHF
- Antenna Band: Band 3 (Channels 6-12)
- Antenna Type: Log periodic
- Number of Elements: 7
- Antenna Filter: 4G+ filter included
- Maximum Gain: VHF 6-8 dBi
- Front to Back Ratio: VHF 13-15 dB
- Materials: Aluminium and UV stabilised plastics
- Colour: Black
- Included Accessories: Rubber Boot, V Block & U Bolt (fitted)
- Dimensions (H x L x W): 85mm x 820mm x 850mm
- Weight: 1.5 kg
Key Features
- Designed for precise digital frequency bands for true HD performance
- Boomlock™ manufacturing technology for durability
- Matched balun for best MER performance and lowest insertion loss
- Ultrasonically sealed balun prevents water ingress
- Strong mechanical construction, lightweight and compact
- Made from aluminium for superior corrosion resistance
- Includes 4G+ filter to reduce interference
- Channels 6 - 12 coverage
- Australian made and owned with lifetime warranty
Professional Installation Requirements
- Professional installation recommended to ensure optimal antenna positioning and secure mounting on roof structures.
Applications
- Domestic: Residential homes for digital TV reception
- Commercial: Businesses requiring reliable VHF digital TV signal
- Outdoor: Roof mounting for optimal signal reception
Standards & Compliance
- Complies with AS/NZS 60035 – Electrical Equipment in Explosive Atmospheres
Environmental Benefits
- Durable aluminium construction reduces need for frequent replacements
- Optimized filtering reduces electronic interference, promoting efficient signal use
Warranty Information
Lifetime warranty included, covering manufacturing defects and performance.
Available Now
The Hills Antenna 01TBV7-4G Tru-Band 7-Element VHF Black Arrow 4G Antenna is available for immediate purchase, ideal for residential and commercial digital TV reception in Australia.
