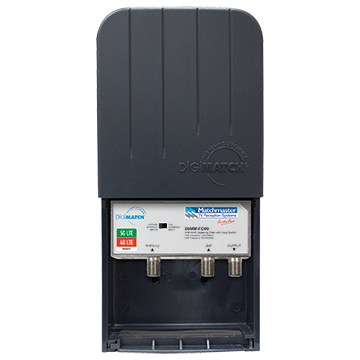

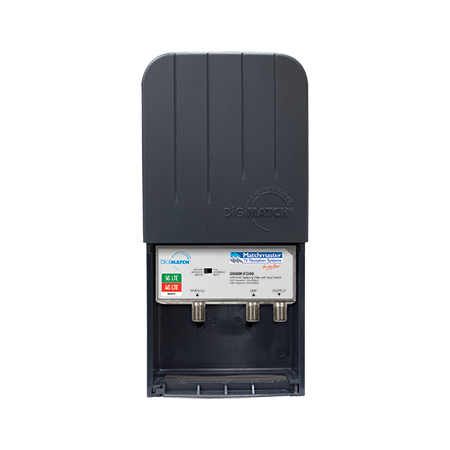

VHF/UHF Diplexing Filter with Input Switch

VHF/UHF Diplexing Filter | 30-3000 MHz | Input Switch | 75 Ohm by Matchmaster

BRAND: Matchmaster

SKU: 09MM-FD09

$55.30 List price: $66.90

+ −

30 Days Return Delivery Options

VHF/UHF diplexing filter with 30-3000 MHz range and integrated input switch—ideal for broadcasting and telecommunications. Built for signal management, with 75 Ohm impedance and F-type connectors.

Description
Attachments

Product Name/Title: VHF/UHF Diplexing Filter with Input Switch

Brand: Matchmaster

SKU: 09MM-FD09

Alternatively Known As: VHF UHF Diplexer, Antenna Diplexing Filter, 4G/5G Signal Filter, VHF UHF Combiner

Technical Specifications

VHF frequency range: 174-230MHz
UHF frequency range: 520-694MHz
Built-in 4G/5G filter
'F' type fittings
Full metal shielded housing for high-level screening
Weatherproof housing suitable for external mounting
Dimensions (H x L x W): 40mm x 120mm x 100mm
Weight: 0.2 kg

Key Features

VHF/UHF diplexing filter
VHF frequency range: 174-230MHz for Block A pass
UHF frequency range: 520-694MHz
'F' type fittings with full metal shielded housing for high-level screening
Weatherproof housing for external mounting
Built-in 4G/5G filter to eliminate cellular frequency interference

Professional Installation Requirements

Professional installation by a qualified technician is recommended to ensure proper antenna alignment and optimal filter performance.

Applications

Combining separate VHF and UHF antennas
Filtering unwanted 4G/5G cellular frequency interference
Use in VHF only transmission regions for clearer picture and greater signal stability
External mounting for outdoor antenna systems

Standards & Compliance

Complies with AS/NZS 60950 – Safety of IT and Communication Equipment

Environmental Benefits

Reduces signal interference leading to less electronic waste from faulty equipment
Weatherproof design extends product lifespan, reducing replacement frequency

Warranty Information

1 year warranty against manufacturing defects.

Available Now

The Matchmaster VHF/UHF Diplexing Filter with Input Switch is available now for immediate purchase. Ideal for residential and commercial antenna systems requiring signal clarity and interference reduction.

Brochure (09mm-fd09_brochure.pdf, 1,238 Kb) [Download]

Full Product Catalogue (full-product-catalogue.pdf, 25,988 Kb) [Download]
