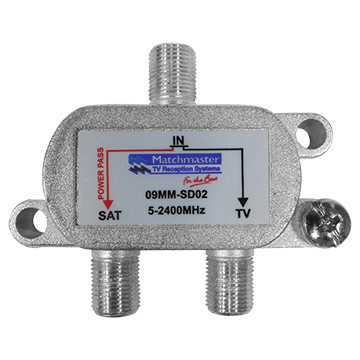

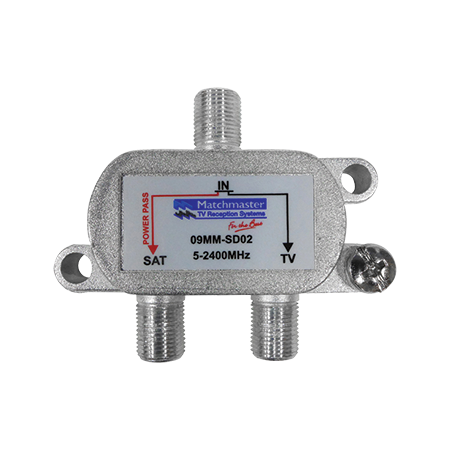

VHF/UHF Satellite Diplexer | 30-3000 MHz | Low Insertion Loss | Durable Housing by Matchmaster

BRAND: Matchmaster

SKU: 09MM-SD02

$19.90 List price: $24.10

+ −

30 Days Return Delivery Options

VHF/UHF satellite diplexer with 30-3000 MHz range and low insertion loss—ideal for satellite communication and TV signal distribution. Built for reliable performance, with durable housing and professional installation recommended.

Description
Attachments

Product Name/Title: VHF/UHF Satellite Diplexer

Brand: Matchmaster

SKU: 09MM-SD02

Alternatively Known As: Satellite Diplexer, VHF/UHF Diplexer, SMATV Diplexer, RF Signal Combiner, Satellite Signal Splitter

Technical Specifications

Input Frequency Range: 5-2400MHz
Isolated Output Frequency Range: FTA 5-862MHz, SAT 950-2400MHz
Connection Type: ‘F’ type female
Foxtel Approved (F30358)
Dimensions (H x L x W): 30mm x 90mm x 60mm
Weight: 0.1 kg

Key Features

Combines and filters satellite and terrestrial signals into one coaxial cable
Can be used in reverse to split satellite and terrestrial signals
‘F’ type female connections
Compact design to easily fit in wall cavities
Foxtel (F30358) approved

Professional Installation Requirements

Professional installation by a qualified technician is recommended to ensure proper signal separation and compliance with Foxtel standards.

Applications

SMATV systems for combining or separating satellite and terrestrial RF signals
Connecting TV and Set-Top Box independently without interference
Use in residential and commercial satellite TV installations

Standards & Compliance

Complies with AS/NZS 60950 – Safety of IT and Communication Equipment

Environmental Benefits

Reduces the need for multiple cables, minimizing material use and waste
Supports efficient signal distribution, reducing energy consumption of additional equipment

Warranty Information

1 year warranty against manufacturing defects.

Available Now

The Matchmaster VHF/UHF Satellite Diplexer 09MM-SD02 is available now for immediate purchase. Ideal for SMATV and satellite TV installations requiring signal combining or separation.

Brochure (09mm-sd02_brochure.pdf, 495 Kb) [Download]

Full Product Catalogue (full-product-catalogue.pdf, 25,988 Kb) [Download]
