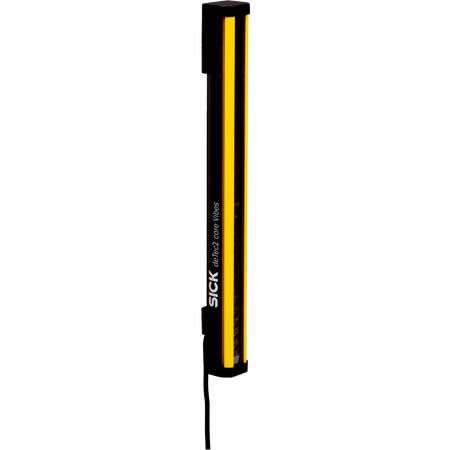

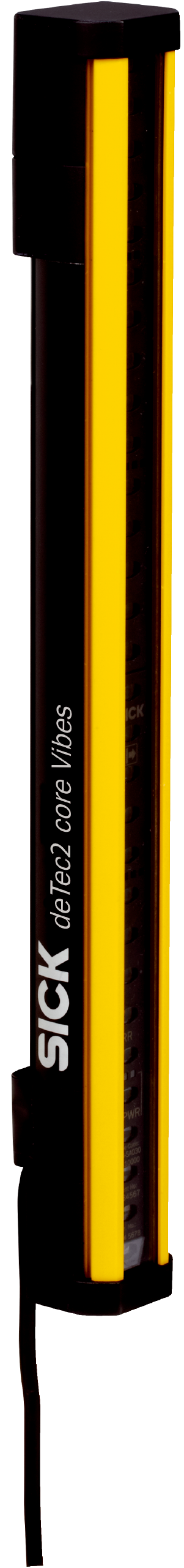

Vibration Resistant Safety Sensor | deTec2 Core Vibes | IP65 & IP67 Enclosure | 6m Scanning Range | by SICK
The Vibration Resistant Safety Sensor is designed for industrial applications, featuring a scanning range of 6 meters and an IP65/IP67 enclosure rating. Ideal for machines exposed to strong shock or vibration, this sensor ensures reliable safety monitoring with no blind zones and optical synchronization, making it perfect for automation systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: deTec2 Core Vibes Safety Sensor, SICK C2C-SV07530C10000, Vibration Resistant Safety Sensor
Technical Specifications
- Product version: deTec2 Core Vibes
- Type: Type 2 (IEC 61496-1)
- Safety integrity level: SIL 1 (IEC 61508)
- Category: Category 2 (ISO 13849-1)
- Performance level: PL c (ISO 13849-1)
- PFHD: 31.0 x 10^-9
- Mission time: 20 years (ISO 13849-1)
- Safe state: At least one OSSD is OFF in fault condition
- System connection: Plug, M12, 5-pin
- Cable length: 150 mm
- Cable diameter: 4.3 mm
- Protection class: III (IEC 61140)
- Supply voltage: 24 V DC (19.2 V to 28.8 V)
- Ripple: ≤ 10%
- Power consumption typical: 0.96 W
- Enclosure rating: IP65 and IP67 (IEC 60529)
- Operating temperature: -30 °C to +55 °C
- Storage temperature: -30 °C to +70 °C
- Air humidity: 15% to 95%, non-condensing
- Vibration resistance: 5 to 150 Hz, 3.5 mm / 1 g
- Shock resistance: 15 g / 6 ms
- Wave length: 850 nm
- Type of light: Near-infrared (NIR), invisible
- Dimensions (H x L x W): 100mm x 200mm x 50mm
- Weight: 1.2 kg
Key Features
- Resolution of 30 mm
- Scanning range of 6 m
- Protective field height of 750 mm
- No blind zones
- Optical synchronization
- LED display elements
- Shock resistance of 15 g / 6 ms
- Vibration resistance 5 to 150 Hz, 3.5 mm / 1 g
- Housing made of aluminum extruded profile
- Enclosure rating IP65 and IP67
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with safety sensor systems and compliant with relevant safety standards.
Applications
- Machines with strong shock or vibration loads
- Industrial safety monitoring
- Automation systems requiring optical synchronization
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable aluminum housing extends product life reducing waste
- Low power consumption at 0.96 W reduces energy usage
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK for detailed warranty terms.
Available Now
The SICK deTec2 Core Vibes C2C-SV07530C10000 safety sensor is available for immediate purchase, ideal for industrial machines exposed to strong shock or vibration.
