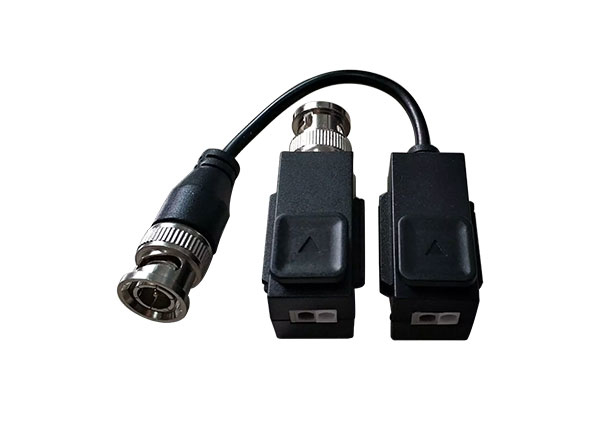

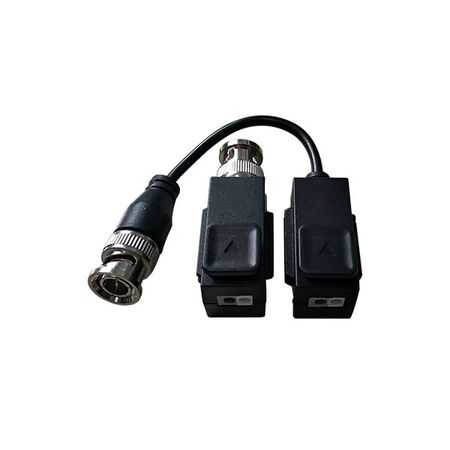

Video Balun to Suit TVI over UTP Hikvision
Hikvision video balun features TVI transmission over UTP cable. Ideal for CCTV and security installs.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Hikvision CCTV Video Balun, HD-TVI UTP Balun, Passive HD Video Balun, Hikvision DS-1H18S/E(C)-type Balun
Technical Specifications
- Transmission Type: 1-channel passive video transmission
- Compatible Formats: HD-TVI, HDCVI, AHD and CVBS
- Supported Resolution: 720p, 1080p, 4MP, 5MP and 8MP
- Transmission Distance: Up to 250 m for non-POC cameras; up to 150 m with POC cameras
- Cable Type: UTP CAT5, CAT5e or CAT6
- Coaxial Connector: BNC male
- UTP Connector: Push-type terminal interface
- Impedance: 75 ohms BNC and 100 ohms UTP
- Interference Rejection: Greater than 60 dB
- Protection: ESD and 2 kV surge protection to IEC 61000-4-2 and IEC 61000-4-5
- Housing Material: ABS engineering plastic
- Operating Temperature: -10°C to 55°C
- Operating Humidity: 0–95% non-condensing
- MTBF: Greater than 10,000 hours
- Dimensions (H x L x W): 22mm x 150mm x 20mm
- Weight: 0.1 kg
Key Features
- Transmits HD-TVI CCTV video over cost-effective UTP cable
- Passive design requires no separate power supply for video transmission
- Compatible with common analogue HD CCTV formats
- Supports high-definition video up to 8MP in suitable installations
- BNC male connector for direct connection to compatible cameras or DVRs
- Built-in protection against electrostatic discharge and transient surges
- Compact ABS housing suitable for security system installations
Applications
- HD-TVI CCTV camera installations
- Security systems using CAT5e or CAT6 structured cabling
- Replacing coaxial video runs with UTP cabling
- Commercial, industrial and residential surveillance systems
Standards & Compliance
- AS/NZS 62676.1.2:2020 may apply to the performance requirements of the completed video surveillance system; no separate Hikvision product certification to this standard was identified.
Environmental Benefits
- Allows reuse of existing CAT5e or CAT6 UTP cabling, potentially reducing the need for new coaxial cable
- Passive operation does not require an additional local power supply
- ABS housing and electronic components can be separated for appropriate end-of-life recycling where local facilities accept them
- Compact construction helps reduce material use and installation waste
Warranty Information
Hikvision's published RMA policy lists a 36-month default warranty for analogue-group accessories, subject to purchase through an authorised channel and regional warranty conditions.
Available Now
Available through Hikvision and authorised Australian security, CCTV and electrical distributors.
