Vigirex Rectangular Sensor 280 | Earth Leakage Protection | Rated Up to 1600A | Compatible with VigiPacT | @Each | by Clipsal

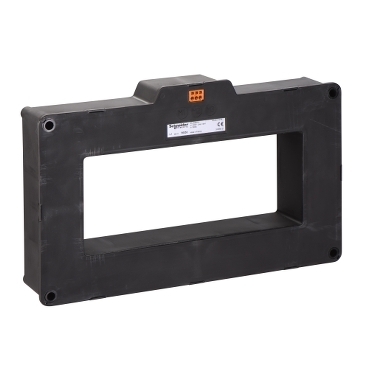

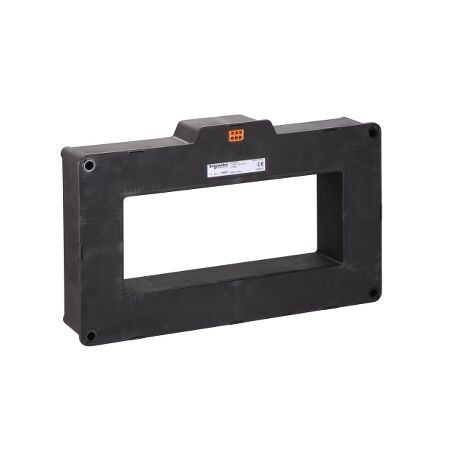

The Vigirex Rectangular Sensor 280 is designed for earth leakage protection, featuring a large aperture of 280mm x 115mm and rated for up to 1600A. Ideal for industrial and commercial switchboards, this sensor ensures reliable fault detection and integrates seamlessly with VigiPacT relays, enhancing electrical safety and minimizing downtime.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Vigirex Rectangular Sensor 280 | Earth Leakage Protection | Rated Up to 1600A | Compatible with VigiPacT | @Each | by Clipsal
Brand: Clipsal
SKU: SCH56053
Alternatively Known As: Vigirex Earth Leakage Sensor, VigiPacT Rectangular Sensor, Clipsal SCH56053, Earth Leakage Current Transformer, Residual Current Sensor
Technical Specifications
- Type: Rectangular earth leakage sensor
- Model: L1 type
- Aperture size: 280mm x 115mm
- Rated current: Up to 1600A
- Compatible relays: VigiPacT, Vigirex
- Mounting: Panel or busbar
- Operating temperature: -25°C to +70°C
- Insulation voltage: 720V AC
- Dimensions (H x L x W): 115mm x 50mm x 280mm
- Weight: 2.5 kg
Key Features
- Rectangular sensor for earth leakage protection
- L1 type, compatible with VigiPacT relays
- Large aperture: 280mm x 115mm for busbar or cable systems
- Rated for up to 1600A
- High sensitivity for reliable fault detection
Professional Installation Requirements
- Installation must be performed by a licensed electrician in accordance with AS/NZS 3000 wiring rules and manufacturer instructions.
Applications
- Electrical switchboards for industrial and commercial buildings
- Protection and monitoring of low voltage electrical installations
- Integration with Vigirex and VigiPacT earth leakage relays
Standards & Compliance
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Enhances electrical safety, reducing risk of fire and equipment damage
- Supports early fault detection, minimizing energy waste and downtime
Warranty Information
12 months manufacturer's warranty from date of purchase.
Available Now
Available for immediate purchase. Ideal for industrial and commercial switchboards requiring advanced earth leakage protection.
