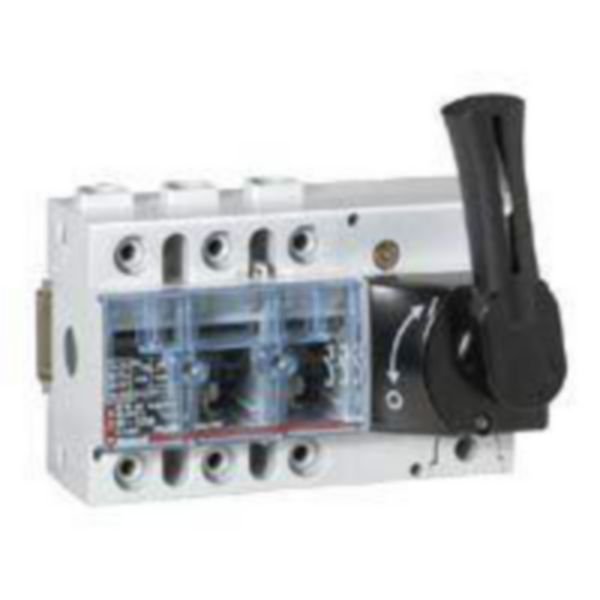

Vistop Isolating Switch 3 Poles 100A | IP2X Protection | Padlockable Handle | by Legrand
The Vistop isolating switch 3 poles 100A is designed for commercial and industrial electrical installations, featuring a robust IP2X protection and a padlockable handle for enhanced safety. With a rated insulation voltage of 690V and a durable design, it ensures reliable circuit breaking and minimizes the risk of electrical faults.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Rated insulation voltage: 690 V
- Rated impulse withstand voltage: 8 kV
- Rated permanent current: 100 A
- Rated short-time withstand current: 3.5 kA
- Rated operation power at AC-23, 400 V: 55 kW
- Conditioned rated short-circuit current: 12 kA
- Number of poles: 3
- Number of auxiliary contacts: 0
- Type of electrical connection: Screw connection
- Degree of protection (IP), front side: IP2X
- Mounting: DIN rail or screw fixing
- Padlockable handle for 1 to 3 padlocks
- Dimensions (H x L x W): 90mm x 70mm x 135mm
- Weight: 1.5 kg
Key Features
- Safety switch for on-load circuit breaking by visible isolation of the contacts
- Rated insulation voltage of 690V and impulse withstand voltage of 8kV
- Connection through cage terminals
- Padlockable handle in open position for 1 to 3 padlocks
- Double break type load switching with self-cleaning contacts
- Mountable on DIN rail or screw fixing
- Interlockable black wing knob control element
- Degree of protection IP2X on front side
Professional Installation Requirements
- Installation by a qualified electrician is required to ensure compliance with electrical safety standards and proper mounting.
Applications
- Commercial and middle power electrical installations
- Distribution board installation
- Control and signalling in switchboards and power cabinets
Standards & Compliance
- Complies with AS/NZS 60947-3 – Low-voltage switchgear and controlgear - Switches, disconnectors, switch-disconnectors and fuse-combination units
Environmental Benefits
- Enhances electrical safety reducing risk of faults and electrical fires
- Durable design reduces need for frequent replacements, minimizing waste
Warranty Information
Standard Legrand warranty applies, typically 2 years against manufacturing defects.
Available Now
The Legrand Vistop Isolating Switch 3 Poles 100A with Black Front Handle is available for immediate purchase, ideal for commercial and industrial electrical installations.
