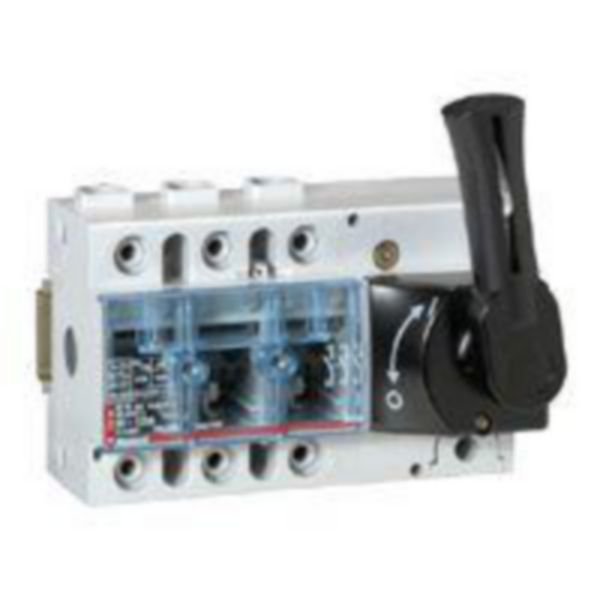

Vistop Isolating Switch 3 Poles 125A | Black Front Handle | IP2X Rated | by Legrand
The Vistop isolating switch 3 poles 125A is designed for safe circuit disconnection in commercial and industrial electrical installations. Featuring a black front handle with a padlockable feature, it ensures compliance with EN/IEC 60947-3 standards. With a rated insulation voltage of 690V and a robust design, this switch is perfect for reliable circuit isolation and minimizes the risk of electrical faults.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Vistop Isolating Switch 3 Poles 125A | Black Front Handle | IP2X Rated | by Legrand
Brand: Legrand
SKU: 022534
Alternatively Known As: Legrand Vistop 3P Isolator, 125A Safety Switch, Legrand 3 Pole Isolating Switch, Vistop Load Break Switch
Technical Specifications
- Rated insulation voltage: 690 V
- Rated impulse withstand voltage: 8 kV
- Rated permanent current: 125 A
- Rated short-time withstand current (lcw): 3.5 kA
- Rated operation power at AC-23, 400 V: 70 kW
- Conditioned rated short-circuit current (Iq): 12 kA
- Number of poles: 3
- Number of auxiliary contacts: 0
- Type of electrical connection: Screw connection
- Degree of protection (IP), front side: IP2X
- Mounting: DIN rail or screw fixing
- Modules: 7.5 DIN modules
- Dimensions (H x L x W): 90mm x 70mm x 135mm
- Weight: 1.5 kg
Key Features
- 3-pole isolating switch with 125A rated current
- Black front handle with padlockable feature for safety
- Complies with EN/IEC 60947-3 standard for on-load circuit breaking
- Rated insulation voltage of 690V and impulse withstand voltage of 8kV
- Connection through cage terminals
- 7.5 DIN modules size
- Double break type load switching with self-cleaning contacts
- Mountable on DIN rail or screw fixing
- Interlockable handle allowing 1 to 3 padlocks
- Degree of protection IP2X on front side
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure compliance with safety standards and proper mounting on DIN rail or screw fixing.
Applications
- Commercial and middle power electrical installations
- Distribution board installation
- Control and signalling in switchboards and power cabinets
Standards & Compliance
- AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Enables safe disconnection of electrical circuits reducing risk of electrical faults and hazards
- Durable design reduces need for frequent replacements, minimizing waste
Warranty Information
Standard Legrand warranty applies, typically 2 years against manufacturing defects.
Available Now
The Legrand Vistop Isolating Switch 3 Poles 125A with Black Front Handle is available for immediate purchase, ideal for commercial and industrial electrical installations requiring reliable circuit isolation.
