Trade Discount 25%

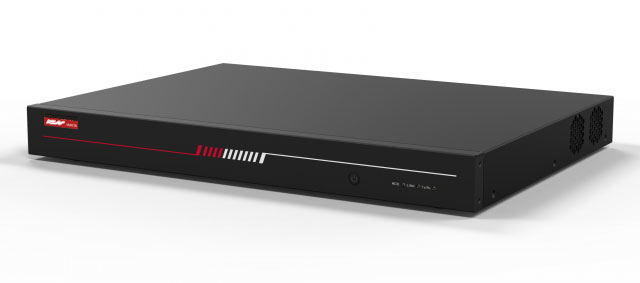

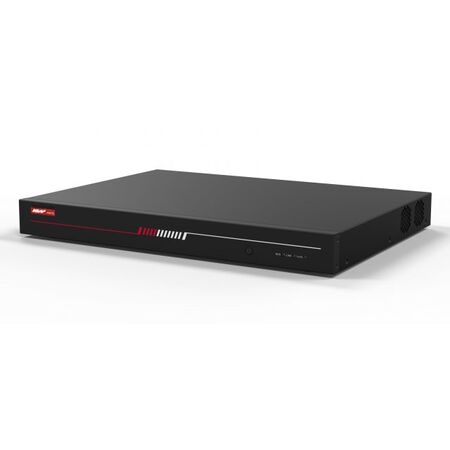

VMS16 Server with NX Server No HDD Ness
Ness VMS16 server features NX Server software and no HDD included. Ideal for CCTV video management installs.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Ness VMS16 NX VMS Server, 104-VMS16-NX, IP Video Management Server
Technical Specifications
- Processor: Intel J3455
- Memory: 4GB
- Operating System: Linux
- VMS Software: NX Server pre-installed
- Operating Throughput: Up to 80 Mbps
- OS Storage: 64GB eMMC onboard
- Optional Storage: Up to 2 x 3.5-inch SATA HDDs, up to 8TB each
- Video Outputs: 2 x HDMI up to 4K; 1 x VGA up to 1920 x 1080 at 60Hz
- Network Interfaces: 2 x 10/100/1000 Mbps Ethernet
- USB Interfaces: 2 x USB 2.0 and 2 x USB 3.0
- Alarm Interfaces: 4 inputs and 2 outputs
- Serial Interface: 1 x RS-232
- Power Supply: 100–240V AC, 50/60Hz
- Power Consumption: Maximum 30W without HDDs
- Operating Temperature: 0°C to 45°C
- Operating Humidity: 10% to 90% non-condensing
- Chassis: 19-inch 1U rack-mount format
- Licensing: NX Witness recording licences sold separately
- Included Storage: No recording HDDs; 64GB eMMC supplied for the operating system
- Dimensions (H x L x W): 44.45mm x 450mm x 482.6mm
- Weight: 4.5 kg
Key Features
- NX Server software pre-installed for IP video management
- Designed to record and serve video streams to multiple remote clients
- Supports installation of up to two 3.5-inch surveillance HDDs
- Supports up to 8TB per HDD slot
- Dual HDMI outputs supporting resolutions up to 4K
- Low power consumption of up to 30W without HDDs
- Linux-based platform with DHCP network configuration
- Separate NX Client installation required on a PC or laptop for viewing and configuration
- Not an NVR; recording licences, monitor, keyboard and HDDs are not included
Professional Installation Requirements
- Rack installation, network configuration and system commissioning should be performed by a qualified security or IT technician. Recording HDDs must be installed, mounted and enabled in NX Server software. Mains connection should comply with applicable Australian electrical requirements.
Applications
- IP CCTV video management
- Commercial and industrial security surveillance
- Multi-camera recording and remote video serving
- Centralised video management for offices, retail sites and facilities
- Rack-mounted security control-room installations
Standards & Compliance
- AS/NZS 62676.1.1:2020 – Video surveillance system requirements for security applications
- AS/NZS 62676.4:2020 – Application guidelines for video surveillance systems
Environmental Benefits
- Power consumption is limited to 30W without recording HDDs, supporting lower operational energy use
- HDD capacity can be selected to match the installation, avoiding unnecessary storage hardware
- 64GB eMMC operating-system storage reduces reliance on a separate OS drive
- Rack-mount construction supports long-term serviceability and component replacement rather than complete system replacement
Warranty Information
Ness Corporation's general warranty for Ness-manufactured or supplied products is 3 years from the date of purchase, unless otherwise specified.
Available Now
Available through Ness and authorised Australian security distributors; check branch availability before ordering.
