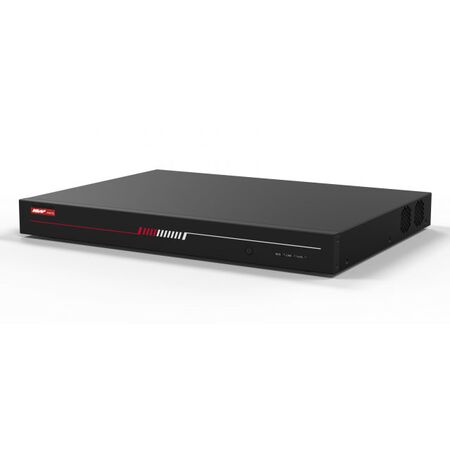

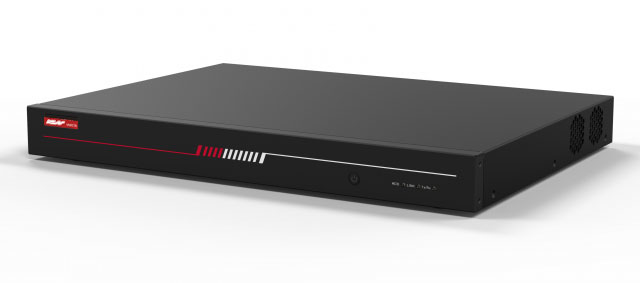

VMS16 Server with SPECTRUM Server No HDD Ness
Ness VMS16 server features SPECTRUM Server software and no HDD included. Ideal for CCTV video management installs.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Ness VMS16 SPECTRUM Server, Ness 104-VMS16-SP, DW SPECTRUM VMS Server, IP Video Management Server
Technical Specifications
- Model: 104-VMS16-SP
- Processor: Intel J3455
- Memory: 4GB
- Operating System: Linux
- VMS Software: DW SPECTRUM Server pre-installed
- Included Storage: 64GB eMMC for operating system
- Optional Storage: 2 x 3.5-inch SATA HDDs, up to 8TB each; HDDs not included
- Video Outputs: 2 x HDMI up to 4K; 1 x VGA up to 1920 x 1080 at 60Hz
- Network Interfaces: 2 x 10/100/1000Mbps Ethernet
- USB Interfaces: 2 x USB 2.0 and 2 x USB 3.0
- Audio: Rear-panel line input and line output
- Alarm I/O: 4 alarm inputs and 2 alarm outputs
- Serial Interface: 1 x RS-232
- Throughput: Up to 80Mbps
- Power Supply: 100-240V AC, 50/60Hz
- Power Consumption: 30W maximum without HDDs
- Operating Temperature: 0°C to 45°C
- Operating Humidity: 10% to 90% relative humidity
- Chassis: 19-inch 1U rack-mount chassis
- Recording Licences: DW SPECTRUM recording licences sold separately
- Dimensions (H x L x W): 44mm x 350mm x 482.6mm
- Weight: 4.5 kg
Key Features
- DW SPECTRUM Server software pre-installed
- Designed to record and serve IP video streams to multiple remote clients
- Supports up to two user-selected surveillance HDDs
- 64GB eMMC storage included for the operating system
- Dual HDMI outputs supporting resolutions up to 4K
- Up to 80Mbps throughput for multiple simultaneous video streams
- Linux-based platform with dual Gigabit Ethernet interfaces
- HDD-free configuration allows storage capacity to be selected for the installation
- Client software is intended to run on separate PCs or laptops
- Not an NVR and does not include recording licences, keyboard, monitor or HDDs
Professional Installation Requirements
- Configuration should be performed by a suitably qualified CCTV or IT security technician. Any mains electrical connection or fixed installation should comply with applicable Australian electrical requirements, including AS/NZS 3000 where relevant.
Applications
- IP CCTV video management
- Commercial and industrial surveillance systems
- Multi-camera recording and remote client serving
- Security control rooms and monitoring centres
- Rack-mounted video management installations
- DW SPECTRUM-based surveillance systems
Standards & Compliance
- AS/NZS 62676.1.1:2020 - relevant system requirements for video surveillance systems used in security applications
- AS/NZS 62676.1.2:2020 - relevant video transmission performance requirements for video surveillance systems
- AS/NZS 62676.4:2020 - relevant application guidance for selection, planning, installation, commissioning, maintenance and testing of video surveillance systems
- AS/NZS 3000:2018 - applicable to fixed electrical installation work, where relevant
Environmental Benefits
- Low maximum power consumption of 30W without HDDs can reduce operating energy use
- HDD-free supply allows storage capacity and drive type to be selected for the actual installation, avoiding unnecessary components
- User-installable storage supports serviceability and component replacement rather than complete system replacement
- 64GB eMMC operating-system storage avoids requiring a separate OS hard drive
- The 1U rack-mount design supports space-efficient equipment-room installations
Warranty Information
Ness manufactured or supplied products are covered by a 3-year warranty from the date of purchase, subject to Ness warranty terms. Digital Watchdog servers are also listed by Ness with a 3-year warranty from date of purchase.
Available Now
Available through Ness and authorised Australian security-system distributors; confirm current stock and build-to-order status with a Ness branch.
